Help CenterHot Cutting Automatic Bag Making Machine DFHQ-350X2
Related Products
-
Hot Cutting Plastic T-shirt Bag Making MachineUS$ 10,000 - 15,000MOQ: 1 Set -
Hot Cutting Plastic Bag Making Machine DFHQ TypeUS$ 10,000 - 15,000MOQ: 1 Set
-
GBDE-600 High Speed T-shirt Bag Making MachineUS$ 8,000 - 10,000MOQ: 1 Set
-
GBDE Model Cold Cutting Four Lines Bag Making MachineUS$ 9,000 - 10,000MOQ: 1 Set
-
Plastic Bag Cutting & Sealing MachineUS$ 8,000 - 10,000MOQ: 1 Set
Specifications
1.Automatic Bag Making Machine2.120X2pcs/minute
3.sevor motor control
4.Automatic Punching unit
5.Two lines
Hot Cutting Automatic Bag Making Machine Feature:
This machine is applied to manufacturing and printing the uncolored vest bags made of HDPE, LDPE roll film. It adopts PLC control, double servo (step) motor fixed length and the liquid crystal touch screen actual display to finish the feeding, sealing, cutting, punching holes and transporting only in one process. It is of high degree of automation and good economic result.
Automatic Bag Making Machine Main Technical Variables:
Model |
DFHQ-350x2 |
DFHQ-450x2 |
Max. Bag-making width |
300mm*2 |
400mm*2 |
Max. Bag-making length |
650mm |
650mm |
Bag-making thickness |
0.015-0.035mm |
0.015-0.035mm |
Bag-making speed |
140-200pcs/minx2 |
140-200pcs/minx2 |
Air pressure |
5kg/cm2 |
5kg/cm2 |
Total Power |
7kw |
9kw |
Weight of machine |
1.4T |
1.6T |
Overall dimensions |
6000*1400*1600mm(LxWxH) |
6000*1400*1600mm(LxWxH) |

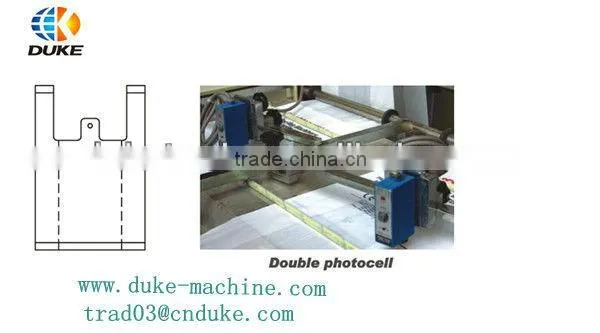

Bag Samples:
Machine Detail Photos:
Sealing And Cutting Knife
The Punching Unit

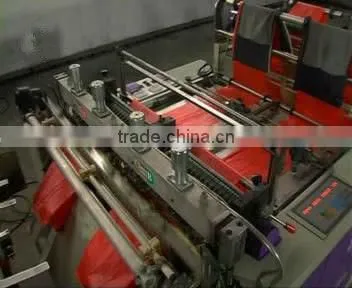

The Machine Real Pic
