GBDR-600 Two Layer Rolling Plastic PE Vest Bag Making Machine

GBDR-600 Two Layer Rolling Plastic PE Vest Bag Making Machine photo-1
US$ 6,200 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Machine Type:
Cutting Machine
Bag Type:
T-shirt Bag
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Machine Type Cutting Machine
Bag Type T-shirt Bag
Material Other, Plastic, Plastic PE Film
Computerized Yes
Place of Origin Zhejiang, China
Brand Name Duke
Model Number GBDR-600
Voltage 220V
Power(W) 1.5KW
Dimension(L*W*H) 3300*1200*1500
Weight 850kg
Certification CE,ISO
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.PE Vest Bag Making Machine
2.Coreless or with core roll pe Vest bag maker
3.Servo motor, two layers
4.Have stock,low price

PE Vest Bag Making Machine Features:
This machine is specially-designed point-cut rolling dual-purpose one for T-shirt & Flat-opening bag, is controlled by a computer. The step (servo) setting length system reduces the sealing-cutting dimensions errors, and the installation of photoelectric eyes track help make the position of figure of printing bags accurate. The computer numerical control can be selected to adjust the length of bag. The machine will automatically stop and sound a warning if there is something wrong with the printing the high and low density polyethylene film bags produced by the machine are applied to shopping in the super markets, shops and markets.

  Two Layer Rolling Vest Bag Making Machine Main Technical Parameters:
 Model
 GBDR -500
 GBDR -600
 GBDR -700   GBDR -800
 Max bag-making width(mm)
 400
 500
 600
 700
 Max bag-making length(mm)
 1200
 1200  1200  1200
 Thickness of bag-making(mm)  0.008-0.10  0.008-0.10  0.008-0.10  0.008-0.10
 Speed of bag-making(pc/min)  40-120  40-120  40-120
 40-120
 Power of motor  1.1kw  1.1kw  1.5kw  1.5
 Electric Heating power  1.2kw  1.6kw  2kw  2.2
 Mechanical Dimension
3300*1100*1500
3300*1200*1500
3300*1300*1500
3300*1400*1500
 Weight of machine
 800kg
 850kg
 900kg  1000
 Packing dimension
3400*1200*1700
3400*1300*1700
3400*1400*1700
3400*1500*1700
 Packing weight  1000kg  1060kg  1180kg  1220

Optional Device:
Servo Motor  (Yaskawa Brand)
PLC               (Taiwan Brand)

Skype:  ritayuan99

  PE Vest Bag Samples:


GBDR-600 Two Layer Rolling Plastic PE Vest Bag Making Machine Plastic PE Vest t-shirt bags



PE Vest Flat bags

GBDR-600 Two Layer Rolling Plastic PE Vest Bag Making Machine



Plastic Vest Bag Making Machine Pictures:



Semi-finished Machine

GBDR-600 Two Layer Rolling Plastic PE Vest Bag Making Machine



The PE Vest T-shirt Bag Rolling Cutting Knife:

GBDR-600 Two Layer Rolling Plastic PE Vest Bag Making Machine

The Flat PE Vest Bag Rolling Cutting Knife :

GBDR-600 Two Layer Rolling Plastic PE Vest Bag Making Machine

The Two Layer Rolling PE Vest Bag Machine Sealing Knife

GBDR-600 Two Layer Rolling Plastic PE Vest Bag Making Machine



The Color CodeTracking For Printed Bags:

GBDR-600 Two Layer Rolling Plastic PE Vest Bag Making Machine



GBDR-600 Two Layer Rolling Plastic PE Vest Bag Making Machine



Two Layer Rolling Vest Bag Making Machine Winder Unit:

GBDR-600 Two Layer Rolling Plastic PE Vest Bag Making Machine

The PE Bag Making Machine Electric Cabinet :

GBDR-600 Two Layer Rolling Plastic PE Vest Bag Making Machine

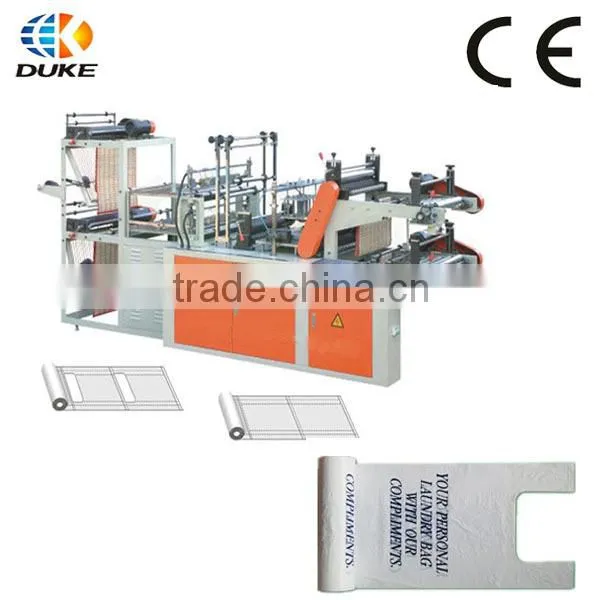

The Vest Bag Making Machine Complete Photos:





GBDR-600 Two Layer Rolling Plastic PE Vest Bag Making Machine
