GBDR-700 Two Layer Automatic Plastic Vest Bag Making Machine
US$ 6,200 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Machine Type:
Cutting Machine
Bag Type:
Garbage Bag
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
GBDE Type Two Layer Four Lines PE Plastic T-shirt Bag Making MachineNegotiableMOQ: 1 Set -
GBDE-700 Plastic Bag Cutting MachineUS$ 8,000 - 10,000MOQ: 1 Set
-
GBDE-600 Automatic Shopping Bag Making MachineUS$ 8,000 - 10,000MOQ: 1 Set
-
DFHQ-350X2 T-shirt Bag Forming MachineUS$ 9,500 - 50,000MOQ: 1 Set
-
RQL-500-700 Computer Control Side Sealing Bag Making MachineUS$ 5,000 - 50,000MOQ: 1 Set
Condition
New
Machine Type
Cutting Machine
Bag Type
Garbage Bag
Material
Plastic
Computerized
Yes
Place of Origin
Zhejiang, China
Brand Name
Duke
Model Number
GBDR-700
Voltage
220V
Power(W)
1.5KW
Dimension(L*W*H)
3400*1400*1700
Weight
900kg
Certification
CE,ISO
Warranty
One Year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.Plastic Vest Bag Making Machine2.Coreless or with core roll Vest bag maker
3.Servo motor, two layers
4.Have stock,low pric
Vest Bag Making Machine Features:
This machine is specially-designed point-cut rolling dual-purpose one for T-shirt & Flat-opening bag, is controlled by a computer. The step (servo) setting length system reduces the sealing-cutting dimensions errors, and the installation of photoelectric eyes track help make the position of figure of printing bags accurate. The computer numerical control can be selected to adjust the length of bag. The machine will automatically stop and sound a warning if there is something wrong with the printing the high and low density polyethylene film bags produced by the machine are applied to shopping in the super markets, shops and markets.
Vest Bag Making Machine Technical Parameters:
| Model | GBDR -500 |
GBDR -600 |
GBDR -700 | GBDR -800 |
| Max bag-making width(mm) | 400 |
500 | 600 |
700 |
| Max bag-making length(mm) | 1200 |
1200 | 1200 | 1200 |
| Thickness of bag-making(mm) | 0.008-0.10 | 0.008-0.10 | 0.008-0.10 | 0.008-0.10 |
| Speed of bag-making(pc/min) | 40-120 | 40-120 | 40-120 | 40-120 |
| Power of motor | 1.1kw | 1.1kw | 1.5kw | 1.5 |
| Electric Heating power | 1.2kw | 1.6kw | 2kw | 2.2 |
| Mechanical Dimension | 3300*1100*1500 |
3300*1200*1500 |
3300*1300*1500 |
3300*1400*1500 |
| Weight of machine | 800kg |
850kg |
900kg | 1000 |
| Packing dimension | 3400*1200*1700 |
3400*1300*1700 |
3400*1400*1700 |
3400*1500*1700 |
| Packing weight | 1000kg | 1060kg | 1180kg | 1220 |
Optional Device:
Servo Motor (Yaskawa Brand)
PLC (Taiwan Brand)
Skype: ritayuan99
Plastic Roll Vest Bag Samples:
Plastic Vest t-shirt garbage bags
Plastic Vest Flat bags
Plastic Vest Bag Making Machine Pictures:
Semi-finished Machine
The Vest Bag Making Machine T-shirt Bag Rolling Cutting Knife:
The Flat Bag Rolling Cutting Knife :
The Roll Vest Bag Machine Sealing Knife
The Color CodeTracking For Printed Bags:
Vest Bag Double Layers Winder Unit:
The Bag Making Machine Electric Cabinet :

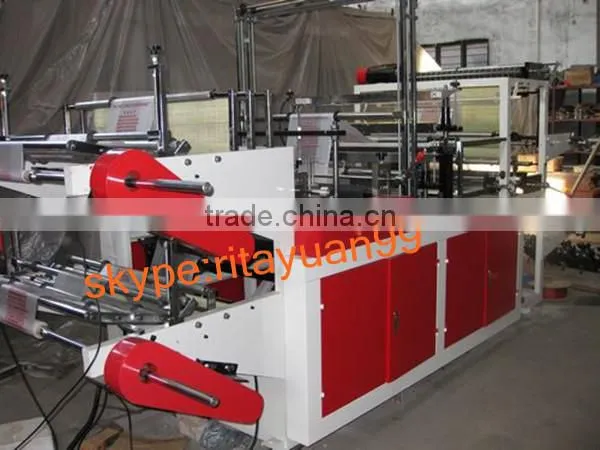

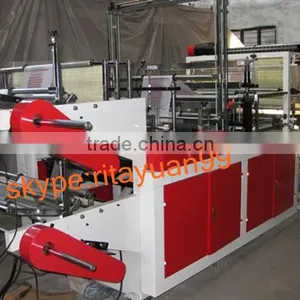

The Plastic Vest Bag Making Machine Complete Photos:
Bag Making Machine Workshop:
