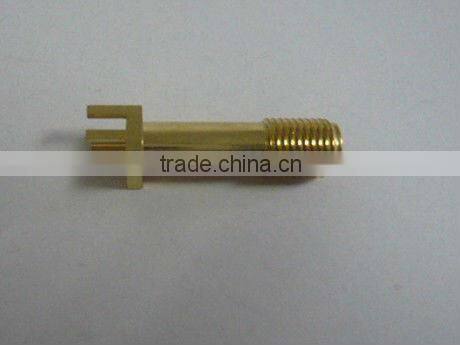

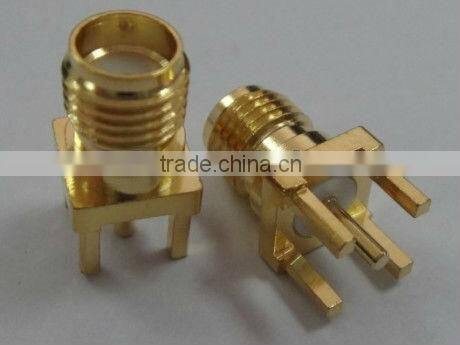

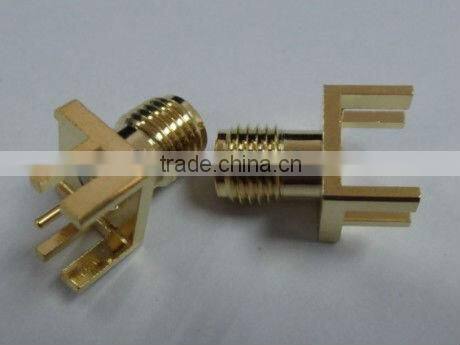

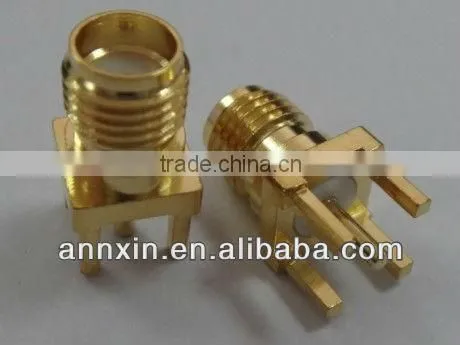

SMA female rf connector for PCB
USD $0.3 - $0.8
/ Piece
2000 Pieces(Min.Order)
- 10000 Piece / Pieces per Month
- sz
- T/T Credit Card PayPal
You May Like
- Website Selling Bnc Connector Auto Electrical Wire Connector
- Sell OnlineAutomotive Lock Wire Joint Connector
- OEM/ODM Factory Direct 2Mm Wire To Board Connector
- Experienced Factory Automotive Jst Connector Wire To Wire
- China Professional Automotive 2 Pin Male Female Jst Connector
- Custom Product Wire Spring Socket Connector
Product Details
Place of Origin: | Guangdong, China | Brand Name: | ANNXIN | Model Number: | SMA-016 |
Type: | SMA | Application: | RF | Gender: | Female |
Product Description
Specifications
SMA rf connectorhigh quality factory price RF coaxial connector
good lead time usually 7 work days
SMA RF connector RF coaxial connector
we can supply all kinds of RF coaxial connectors
liking SMA ,SMB,MMCX,MCX,BNC,TNC,UHF,HFL,IPEX and so on. we are of factory price .we welcome OEM /ODM clients.
Key spec. : S=7.0mm L=13.5mm screw length=3.7mm PCB layout gap should be 4.08mm | ||||||
Temperature range | -65~+165 | Insulation resistance | ≥5000MΩ | |||
Characteristic impedance | 50Ω | Dielectric Withstanding voltage | 1000V(r ms) | |||
Frequency range | With flexible cable | 0~12.4GHz | Contact resistance | Center conductor | ≤3mΩ | |
With semi-rigid/flexible cable | 0~18GHz | Outer conductor | ≤2mΩ | |||
VSWR | With flexible cable | ≤1.15+0.02F | Durability | 500 Cycles | ||
With semi-rigid/flexible cable | ≤1.05+0.02F | |||||
Material And Plating | ||||||
Body | Brass , gold plated or stainless steel passivated | |||||
Male center contacts | Brass , gold plated | |||||
Female center contacts | Beryllium copper , gold plated | |||||
Insulators | PTFE | |||||
Gaskets | Silicon rubber | |||||
Crimp ferrules | Copper alloy , gold or nickel plated |
