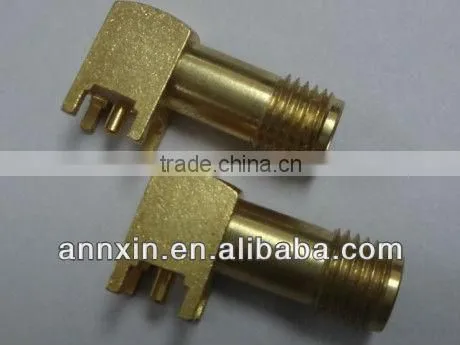

Sma Female Pcb Mount rf Coaxial Connector

Name: Sma Female Pcb Mount rf Coaxial Connector
Brand: ANNXIN
SKU: 134364033

US$ 0.3 - 0.8 MOQ: 2000 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

ANNXIN

Model Number:

SMA-011

Dongguan Annxin Electronics Company Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name ANNXIN

Model Number SMA-011

Type SMA

Application RF

Gender Female

Specifications

sma female pcb mount rf coaxial connector
high quality factory price RF coaxial connector
good lead time usually 7 work days

sma female pcb mount rf coaxial connector

we can supply all kinds of RF coaxial connectors

liking SMA ,SMB,MMCX,MCX,BNC,TNC,UHF,HFL,IPEX and so on. we are of factory price .we welcome OEM /ODM clients.

key spec.: S=6.0mm L=17.9mm
Temperature range		-65~+165	Insulation resistance		≥5000MΩ
Characteristic impedance		50Ω	Dielectric Withstanding voltage		1000V(r ms)
Frequency range	With flexible cable	0~12.4GHz	Contact resistance	Center conductor	≤3mΩ
	With semi-rigid/flexible cable	0~18GHz		Outer conductor	≤2mΩ
VSWR	With flexible cable	≤1.15+0.02F	Durability		500 Cycles
	With semi-rigid/flexible cable	≤1.05+0.02F
Material And Plating
Body		Brass , gold plated or stainless steel passivated
Male center contacts		Brass , gold plated
Female center contacts		Beryllium copper , gold plated
Insulators		PTFE
Gaskets		Silicon rubber
Crimp ferrules		Copper alloy , gold or nickel plated
