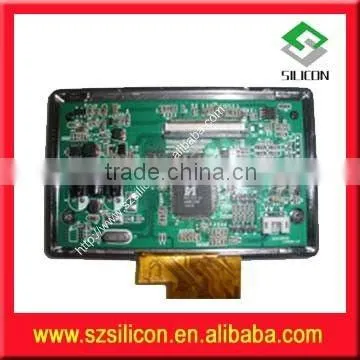

HOT 3.5 Inch Digital LCD Panel With LED Backlight

Name: HOT 3.5 Inch Digital LCD Panel With LED Backlight
Brand: Silicon
SKU: 134340993

US$ 1 - 2 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Silicon

Model Number:

Silicon P-008

Shenzhen Silicon Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Silicon

Model Number Silicon P-008

Type TFT

Specifications

1. HOT 3.5 Inch Digital LCD Panel with LED Backlight
2. Use for display equipment
3. Input signal: CVBS
4. Datasheet: yes

1. Application:

Building interphone, car reversing system

Industrial controlling system, medical equipment

Audiovisual equipment Car display, Portable DVD Player

Household Video door bell, Videophone, Digital Camera

2. Feature:

Product Name	HOT3.5 Inch Digital LCD Panel with LED Backlight
Product Number	P-008
Backlight	LED
Resolution	*320RGB240*
View Angle ( up/down/left/right )	50/55/60/60
Brightness	> 300Cd/m²
Input Signal	CVBS
System Format	PAL/NTSC (Auto switch)
Supply Voltage	6-24V
Rated Power	1.2W
Adjust Model	Menu adjust
PCB Structural Dimension(mm)	*88(w)62(h)7(d)*
Screen Size(mm)	*76.9(w)63.9(h)3.2(d)*
Operating Temperature	-10~70°C
Relative Humidity	5~95% RH
Storage Temperature	-30~80°C
Packing	60pcs/Box
Customize	Free for LOGO, accept order the CABLE lines
