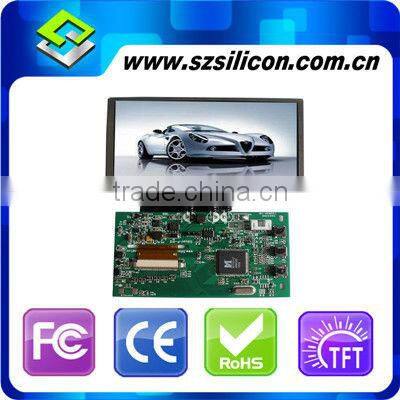

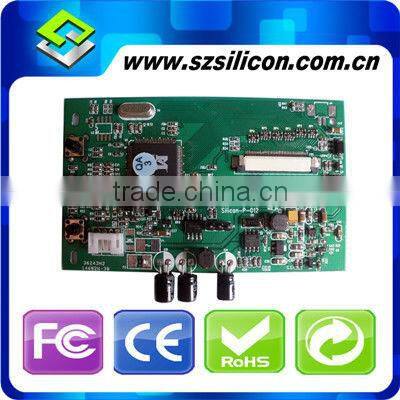

2 Way CVBS 4.3 Inch Lcd Panel With Driving Board

Specifications

1)Backlight: LED
2)Warranty: one year
3):Rated power:1.2w
4)Signal input: 2way CVBS
5)Specialized Design + high quality





Model : Silicon-P-012



1.Application:



Car monitor                  Building interphone



car reversing system   Industrial controlling system



medical equipment      Audiovisual equipment



Portable DVD Player    Household Video door bell



Video doorphone          Digital Camera



 2.Features:



Product name:	4.3" lcd panel with driving board
Product number:	Silicon-P-012
Display	4.3"TFT-LCD (40PIN 16:9)
Backlight:	LED
Resolution:	480(RGB)*272
View Angle(up/down/left/right):	50/70/70/70
Brightness:	> 300Cd/m2
Signal input:	2 way CVBS
System format:	PAL/NTSC(Auto switch)
Adjust model:	Menu adjust
Power Input:	DC 6V-24V
Rated power:	1.2W
OSD Language	Chinese/English/French/Germany/Korean…(customizable)
Display Dimension of LCD(mm):	95.04(H)*53.86(V)
Overall Dimension of LCD(mm):	105.5(W)*67.2(H)*2.85(D)
PCB Structural dimension(mm):	90(W)*48(H)*6.8(D)
Operating Temperature:	-20~+70 °C
Relative Humidity:	5~95% RH
Storage Temperature:	-30~+80°C
Packing:	bubble bag and standard export carton



 3. Advantage :



Unique design



Free for customer ordering starting LOGO, accepts order the CABLE lines



OEM/ODM based on the customer demands



4. Related products:



SIZE	A/D board	type	Signal Input	Osd	LCD FPC No.	Backlight	Resolution	Brightness
3.5"	SILICON-P-003	digital	2way CVBS	yes	54PIN	LED	320*240	300
	SILICON-P-003-2	digital	2way CVBS	yes	54pin/60pin	LED	320*240	300
	SILICON-P-009	digital	2way CVBS	yes	54PIN	LED	320*240	300
	Silicon-P-016	digital	CVBS	yes	54PIN	LED	320*242	300
	Silicon-P-31N1-3.5	digital	2way CVBS	yes	54PIN	LED	320*243	300
4.0"	SiLICON-P-005	digital	CVBS	yes	40PIN	LED	320*240	300
	SiLICON-P-005-2	digital	CVBS	no	40PIN	LED	320*240	300
	SiLICON-P-005-3	digital	CVBS	yes	54PIN	LED	320*240	300
4.3"	SiLICON-P-004	digital	2 way CVBS	yes	40PIN	LED	480*272	300/500
	SiLICON-P-010	digital	2 way CVBS	yes	40PIN	LED	480*272	300/500
	SiLICON-P-010-2	digital	CVBS	yes	40PIN	LED	480*272	300/500
5.7"	SILICON-P-017	digital	CVBS	yes	AA057VG02	LED	650*480	300
6.2"	SILICON-P-018	digital	VGA+2way CVBS	yes	60PIN	LED	800*480	700
6.5"	SILICON-P-019	digital	VGA+2way CVBS	yes	50PIN	LED	800*480	700
7.0"	SiLICON-P-002	analog	CVBS	yes	26PIN	LED	480*234	400
	SiLICON-P-006	analog	CVBS	yes	26PIN	LED	480*234	400
	SiLICON-P-006-2	analog	2 way CVBS	yes	26PIN	LED	480*234	400
	SiLICON-P-006-3	analog	CVBS	yes	26PIN	LED	480*234	400
	SiLICON-P-008	digital	CVBS	yes	50PIN/60pin	LED	800*480	400
	SiLICON-P-008-2	digital	2 way CVBS	yes	50PIN	LED	800*480	400
	SILICON-P-020	analog	VGA+2way CVBS	yes	26PIN	LED	480*234	400
10.1"	SiLICON-P-007	digital	CVBS	yes	double 30PIN	LED	800*480
