Specifications

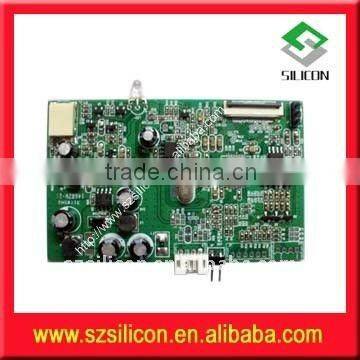

1. 7 Inch Analog TFT Panel2. Use for display equipment
3. Input signal: CVBS
4. Datasheet: yes
1. Application:
Building interphone, car reversing system
Industrial controlling system, medical equipment
Audiovisual equipment Car display, Portable DVD Player
Household Video door bell, Videophone, Digital Camera
2. Feature:
1) Product Name: 7 Inch Analog TFT Panel
2) Product Number: Silicon-P-006
3) Backlight: LED
4) Resolution: 480x(RGB)×234
5) View Angle ( up/down/left/right ): 50/55/60/60
6) Brightness: > 250Cd/m2
7) Input Signal: CVBS
8) System Format: PAL/NTSC(Auto switch)
9) Supply Voltage: 6V-24V
10) Rated Power: 1.2W
11) Adjust Model: Menu adjust
12) PCB Structural Dimension(mm): 82(W)×50(H)×7(D)
13) Screen Size(mm): 164.9(W)×100(H)×5.5(D)
14) Operating Temperature: -10~60 °C
15) Relative Humidity: 5~95% RH
16) Storage Temperature: -20~70°C
17) Customize: Free for LOGO, accept order the CABLE lines
18) Packing: 60pcs/Box
