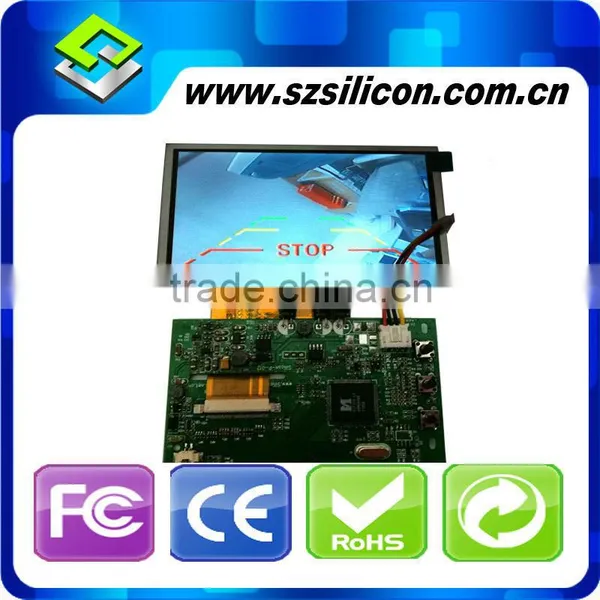

2 Way CVBS 4.3 Inch Lcd Panel With Controller Board

2 Way CVBS 4.3 Inch Lcd Panel With Controller Board thumbnail-1
2 Way CVBS 4.3 Inch Lcd Panel With Controller Board photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Silicon
Model Number:
Silicon-P-012
Type:
Other, TFT, Digital
Contact Supplier Request Quote Chat Now
Shenzhen Silicon Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenshen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Silicon
Model Number Silicon-P-012
Type Other, TFT, Digital

Specifications

1)Backlight: LED
2)Warranty: one year
3):Rated power:1.2w
4)Signal input: 2way CVBS
5)Specialized Design + high quality

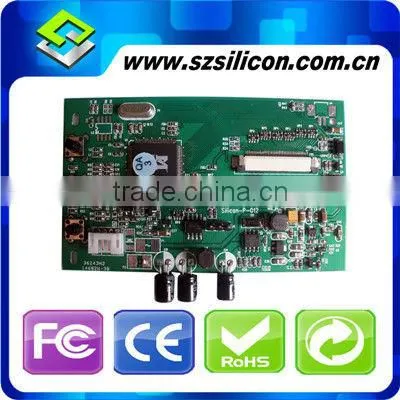

2 way CVBS 4.3 inch lcd panel with controller board



Model : Silicon-P-012



1.Application:



Car monitor                  Building interphone



car reversing system   Industrial controlling system



medical equipment      Audiovisual equipment



Portable DVD Player    Household Video door bell



Video doorphone          Digital Camera



 2.Features:



Product name: 4.3" lcd panel with Controller board
Product number: Silicon-P-012
Display 4.3"TFT-LCD (40PIN 16:9)
Backlight: LED
Resolution: 480(RGB)*272
View Angle(up/down/left/right): 50/70/70/70
Brightness: > 300Cd/m2
Signal input:  2 way CVBS
System format: PAL/NTSC(Auto switch)
Adjust model: Menu adjust
Power Input:      DC 6V-24V
Rated power:        1.2W
OSD Language Chinese/English/French/Germany/Korean…(customizable)
Display Dimension of LCD(mm): 95.04(H)*53.86(V)
Overall Dimension of LCD(mm): 105.5(W)*67.2(H)*2.85(D)
PCB Structural dimension(mm): 90(W)*48(H)*6.8(D)
Operating Temperature: -20~+70 °C
Relative Humidity: 5~95% RH
Storage Temperature: -30~+80°C
Packing:    bubble bag and standard export carton

 2 way CVBS 4.3 inch lcd panel with controller board2 way CVBS 4.3 inch lcd panel with controller board

 3. Advantage :



Unique design



Free for customer ordering starting LOGO, accepts order the CABLE lines



OEM/ODM based on the customer demands



4. Related products:



SIZE A/D board type Signal Input Osd LCD FPC No. Backlight Resolution Brightness
3.5" SILICON-P-003 digital 2way CVBS yes 54PIN LED 320*240 300
SILICON-P-003-2 digital 2way CVBS yes 54pin/60pin LED 320*240 300
SILICON-P-009 digital 2way CVBS yes 54PIN LED 320*240 300
Silicon-P-016 digital CVBS yes 54PIN LED 320*242 300
Silicon-P-31N1-3.5 digital 2way CVBS yes 54PIN LED 320*243 300
4.0" SiLICON-P-005 digital CVBS yes 40PIN LED 320*240 300
SiLICON-P-005-2 digital CVBS no 40PIN LED 320*240 300
SiLICON-P-005-3 digital CVBS yes 54PIN LED 320*240 300
4.3" SiLICON-P-004 digital 2 way CVBS yes 40PIN LED 480*272 300/500
SiLICON-P-010 digital 2 way CVBS yes 40PIN LED 480*272 300/500
SiLICON-P-010-2 digital CVBS yes 40PIN LED 480*272 300/500
5.7" SILICON-P-017 digital CVBS yes AA057VG02 LED 650*480 300
6.2" SILICON-P-018 digital VGA+2way CVBS yes 60PIN LED 800*480 700
6.5" SILICON-P-019 digital VGA+2way CVBS yes 50PIN LED 800*480 700
7.0" SiLICON-P-002 analog CVBS yes 26PIN LED 480*234 400
SiLICON-P-006 analog CVBS yes 26PIN LED 480*234 400
SiLICON-P-006-2 analog 2 way CVBS yes 26PIN LED 480*234 400
SiLICON-P-006-3 analog CVBS yes 26PIN LED 480*234

400
SiLICON-P-008 digital CVBS yes 50PIN/60pin LED 800*480 400
SiLICON-P-008-2 digital 2 way CVBS yes 50PIN LED 800*480 400
SILICON-P-020 analog VGA+2way CVBS yes 26PIN LED 480*234 400
10.1" SiLICON-P-007 digital CVBS yes double 30PIN LED 800*480



Certification:

2 way CVBS 4.3 inch lcd panel with controller board



support :



2 way CVBS 4.3 inch lcd panel with controller board
