Hot Air Shuttle Star RW-SP360C Bga Soldering Station for Bga Chip Repairment

Name: Hot Air Shuttle Star RW-SP360C Bga Soldering Station for Bga Chip Repairment
Brand: Shuttle Star
Availability: InStock

FOB Price

US$ 1,500 - 1,500 / Set

1 Set(Min. Order)

Port Shenzhen/HK
Payment TermsT/T Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Shuttle Star
Model Number	RW-SP360C	Voltage	220V
Current	15A	Rated Capacity	4KW
Rated Duty Cycle	100%	Dimensions	640630900mm
Weight	60kg	Usage	BGA Rework Station
Certification	ISO9001:2008	After-sales Service Provided	No overseas service provided

Product Description

All Laptop Brands Video Card/System Board/ Repair Tools RW-SP360C

BGA Chip:

First, we should know the meaning of BGA (Ball Grid Array Package);

There are different BGA package on the motherboard, such as network BGA,VGA,CPU, South Bridge,North Bridge.

(For Example Laptop Motherboard)

BGA ball: as a connector between motherboard and BGA chip. If the BGA ball broken, his chip cannot work.

How to separate BGA chip from motherboard?

How to replace a new BGA chip?

Repair steps:

1) Separate the BGA chip from mother board –we called desoldering

2) Clean Pad

3) Reballing or replace a new BGA chip directly

4) Alignment/Positioning – Depend on experience ,silk frame ,optical camera

5) replace a new BGA chip - we called Soldering

For step 1,step 5,heating temperature control is very important.

It will directly lead to rework failure and PCB deformation.

Product Description

PCB Size	W50D50~W430D350
PCB Thickness	0.5~3mm
Applicable BGA Size	7mmX7mm ~ 55mmX55mm
Max BGA Weight	80g
Temperature Control	K-type thermocouple,close cycle controlled
PCB locating way	outer
Upper heater	hot air 600W
Bottom heater	hot air 800W
Bottom preheat	IR 2400W
Power Supply	Single-phase 220V,50/60Hz,4KW
Machine size	L650W500H600
Machine weight	36.0kg

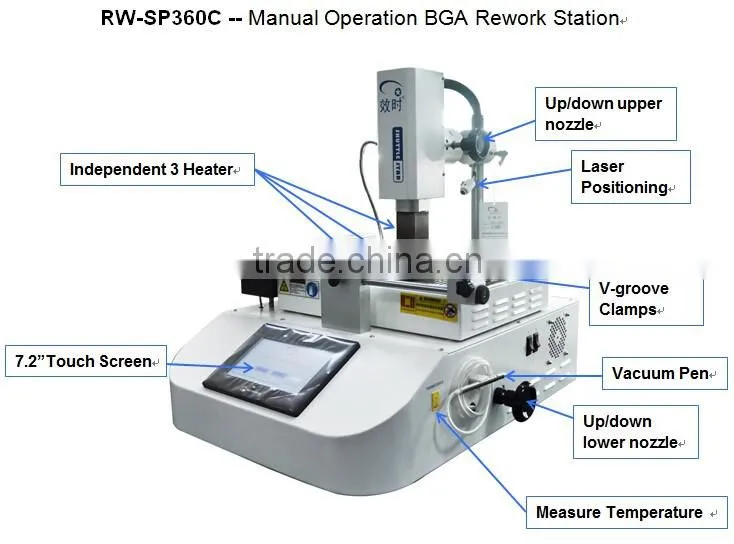

Heating Device and PCB Clamps:

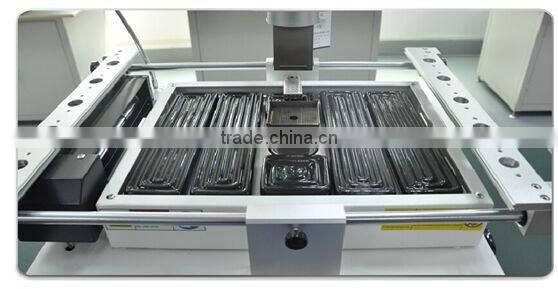

Independent 3 Heater: Upper/Lower hot air heating, Bottom IR preheating

1.The upper&lower heaters: BGA can be heated from upper and bottom at the same time.

temperature accuracy within ±2℃,make BGA melt completely;

2.IR preheating area is adjustable according to desire requests and PCB size, and matched with PCB clamps to make PCB heating evenly and protect motherboard from deformation during heating process;

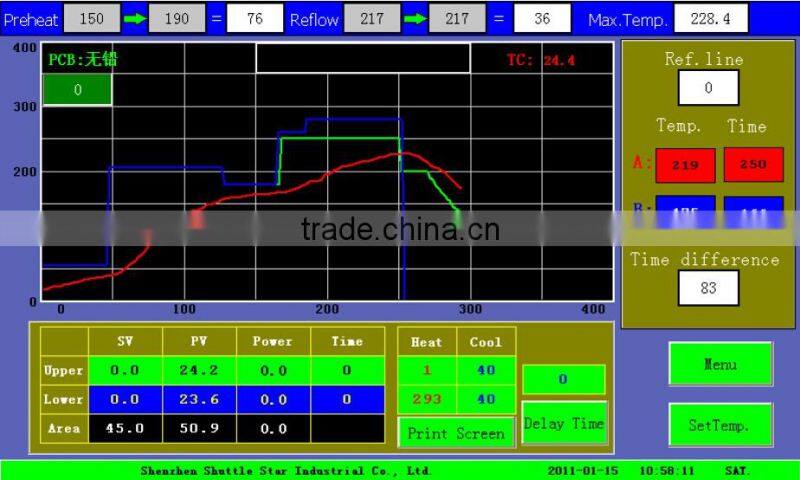

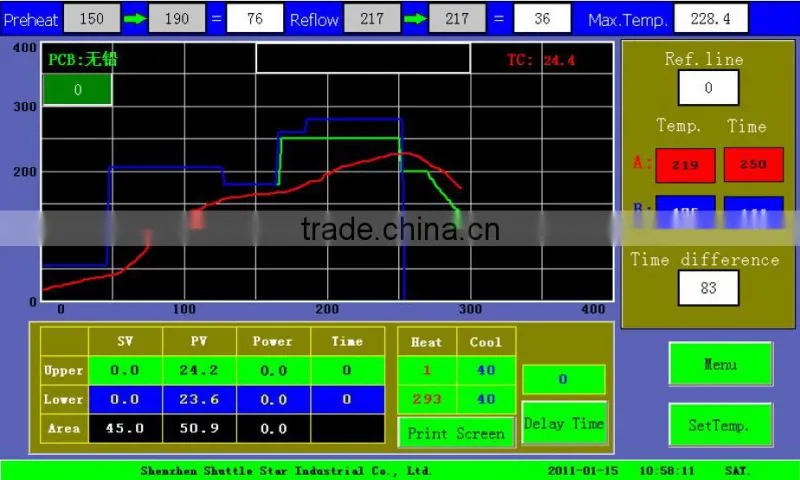

3. PLC operate interface display real-time temperature profile,so you can monitor BGA temperature change all the time.

4. Unlimited save temperature profile for later use. even if you have no BGA rework experience ,

You can desoldering/soldering BGA chip. Easy operation .

5. 8 stages temperature running, Refer Relow soldering process . it is beneficial to know the whole package's temperature distribution characteristic

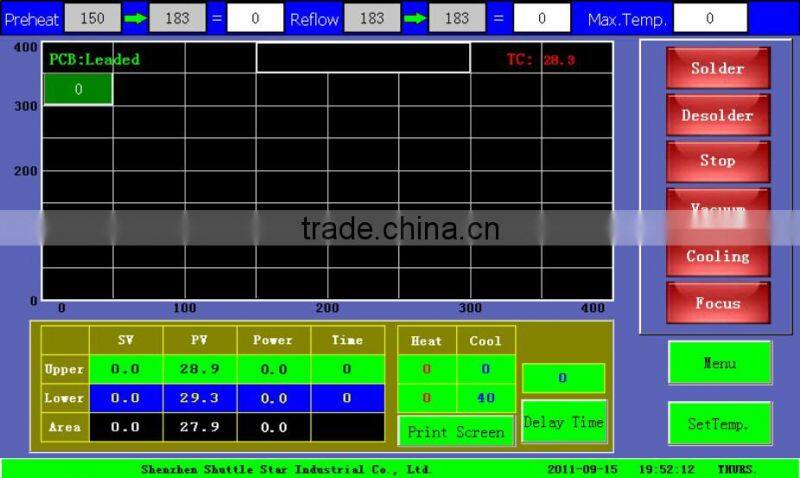

PLC Operate Interface:

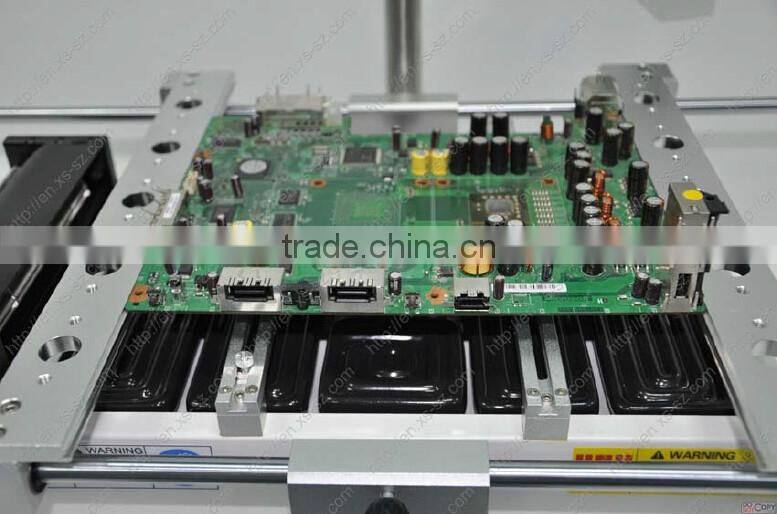

V-Type PCB Jig

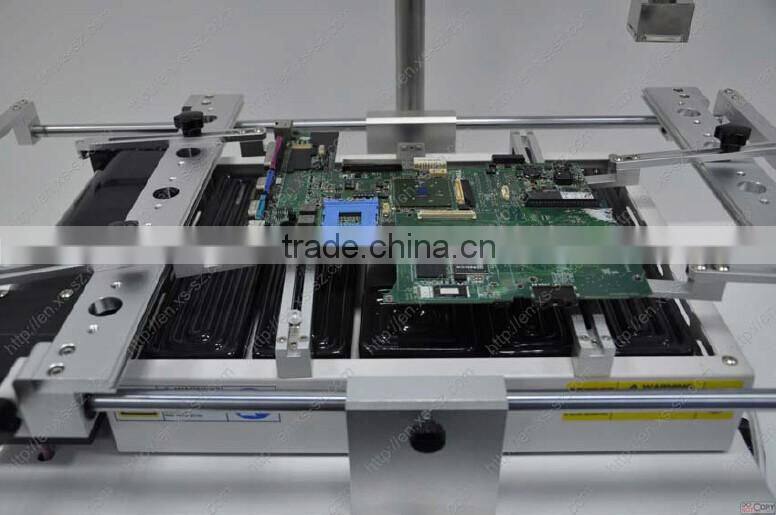

Irregular Laptop PCB Clamps

Clamps can help fix PCB on machine ,and it can protect PCB from deformation when heating whole PCB

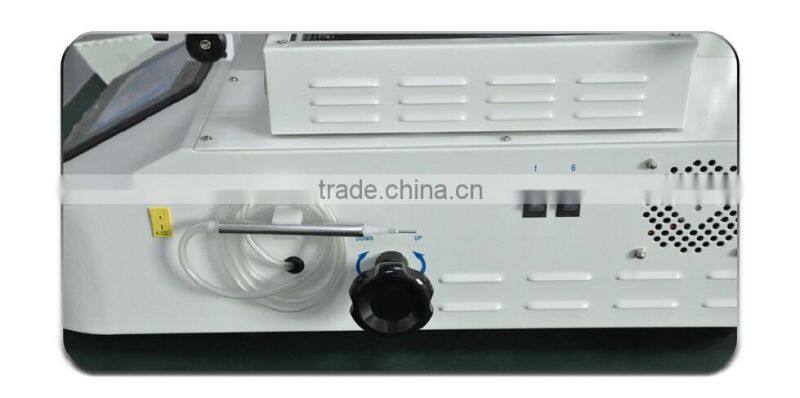

Thermocouple and Vacuum Pen

Thermocouple :test BGA heating temperature,monitor temperature change
