Shuttle Star IR BGA Machine Repair(graphics Card,south/north Bridge Chip) Notebook
- Shenzhen/Hongkong
- Money Gram Credit Card PayPal
You May Like
-
Shuttle Star RW-SP360C Welding Rework Station, Mobile Phone/laptop Motherboard Repair Equipment/infrared Bga Rework
-
Low Cost Multi-function Chip Replacement Machine Bga Rework Station RW-S380II
-
Multi-function Chip Replacement Machine Hot Air Rework Station RW-S380II
-
Multi-function Chip Replacement Machine RW-S380II Same as Bga Rework Station Zm-r5860
-
Low Cost Multi-function Chip Replacement Machineautomatic Bga Rework Station RW-S380II
-
Multi-function Chip Replacement Machine Iphone Rework Station RW-S380II
Product Details
| Place of Origin | Guangdong, China | Brand Name | shuttle star | |
| Model Number | RW-SP390 |
Product Description

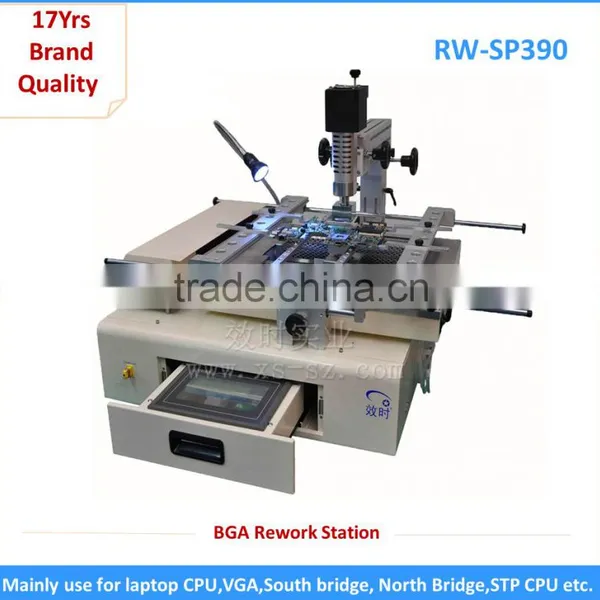

Shuttle Star IR BGA Machine repair(graphics card,south/north bridge chip) notebook
Advantage:
1. Auto-generated profile, multi steps of temperature control
2. Embedded industrial computer, PLC with stable performance
3. big bottom IR area movable with X axis
4. Applicable for laptop,desktop,xbox,ps2, ps3,psp,etc.
Warranty:
1 year, during the warranty, if any parts are damaged not artificially, our company will afford to replace a new one for you and the relative shipping cost is on our party.
Specification
| PCB dimension | W50×D50~W500×D520mm |
| PCB thickness | 0.5~4mm |
| Temperature control | K-type thermocouple, close cycle controlled |
| PCB locating way | Jig |
| Preheater | far infrared 2400W |
| Upper heater | hot air 600W |
| Lower heater | hot air 800W |
| Power supply | single-phase 220V, 50/60Hz, 4KW |
| Machine dimension | L750×W780×H700mm |
| Weight | Approx. 70Kg |
Features
- High quality heating material ensures desoldering and soldering procedures of BGA are precisely controlled;
- Auto-generated profile, no need to adjust or change temperature on the profile;
- Adjustable Air flow and temperature within a wide range to produce high temperature breeze;
- Movable heating head for easy operation
- Touch screen interface; 3 heaters;real-time temperature curve display on touch screen;
- Embeded industrial computer, PLC control; able to disply set profile and testing profile at the same time; analyze the profile,compared with saved history profiles;
- 8 segments of temperature up(down) and 8 segments constant temperature control, unlimited profiles saving;
- Up/down adjustable lower hot air nozzle;
- Buzz after soldering or desoldering is finished;
- With different alloy hot gas nozzles, easy to replace.It could be tailored as per the specific requirements.
- The whole bottom IR preheating area can move along with X axis, so as to meet the need of different BGA repair and bigger size PCB.
How to reball: |
accessories for machine inclued: |
solid wooden package: certification: |
