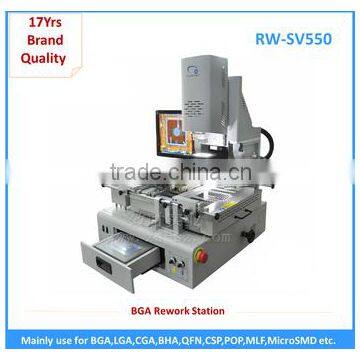

Shuttle Star RW-SV550 automatic welding equipment for iphone 5s unlocked motherboard 16gb/32gb

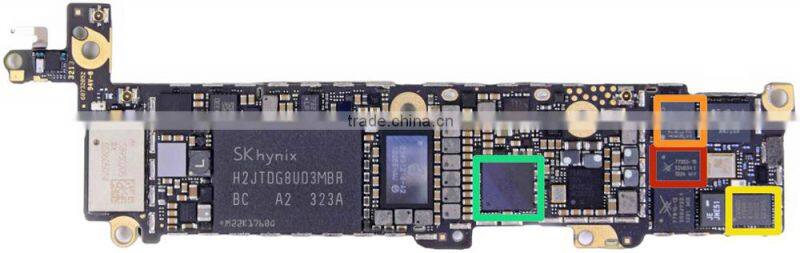

(Iphone5s motherboard)
Features
bga repair machine
optical alignment system
laser positioning
High precision
CE;ISO9001 approved
Specification
| PCB Size | W20*D20 ~ W550mm x D500mm |
| Workable area | W550*D500mm |
| PCB Thickness | 0.5~ 0.25mm |
| Applicable BGA | 1*1~70*70mm |
| Working table adjustment | Front/Rear ± 120mm, Left/Right ± 80mm |
| PCB locating way | Outer |
| Temperature Control | K-Type Thermocouple,Close Cycle Controlled |
| placement precision | ±0.01mm |
| Min pitch of bga ball | 0.15mm |
| Gross power | 5600W |
| Bottom IR Preheat | 3600W |
| Top heater | 1200W |
| Bottom heater | 800W |
| MAX BGA weight | 80g |
| Power supply | Single Phase, 220VAC, 50/60 Hz |
| Machine dimension | L850*W750*H630mm |
| Weight | Approx 80kg |
Detailed Picture

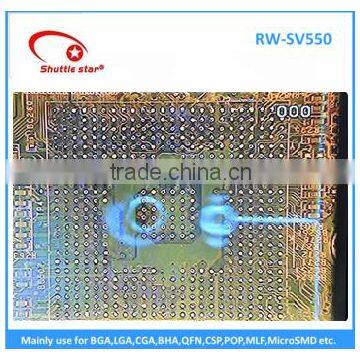

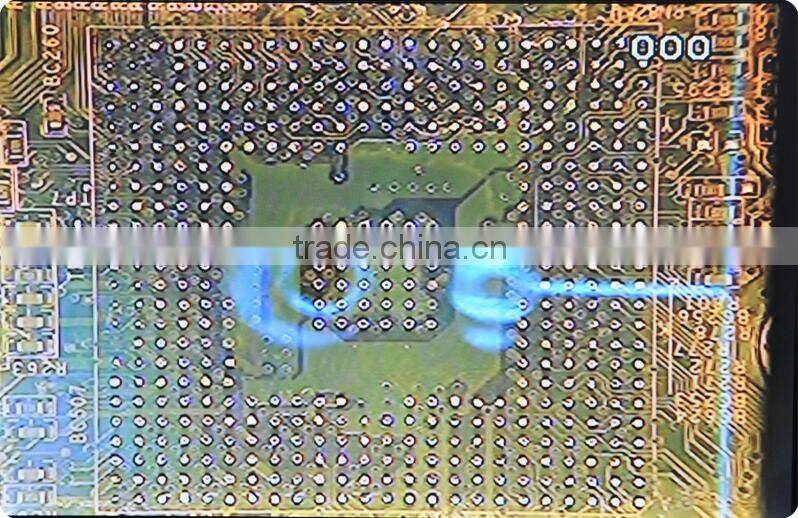

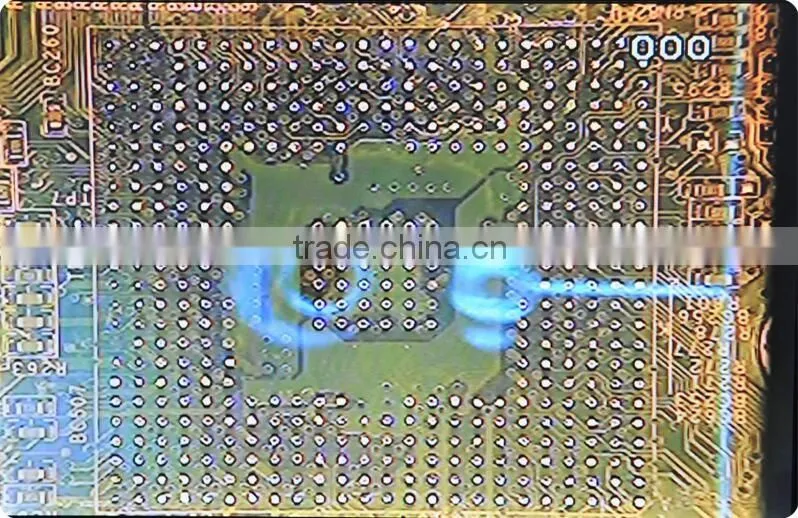

(optical screen counterpoint )

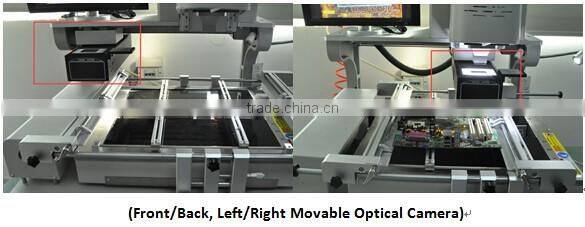

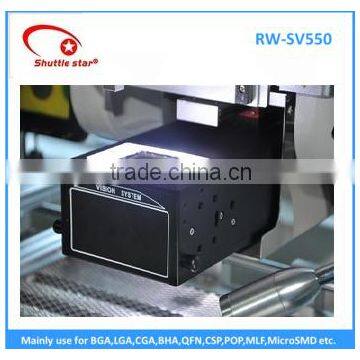

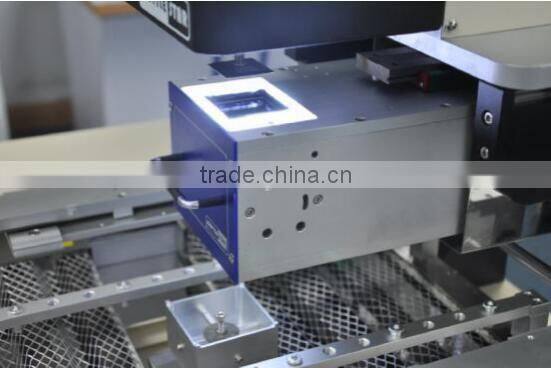

(Vision System)

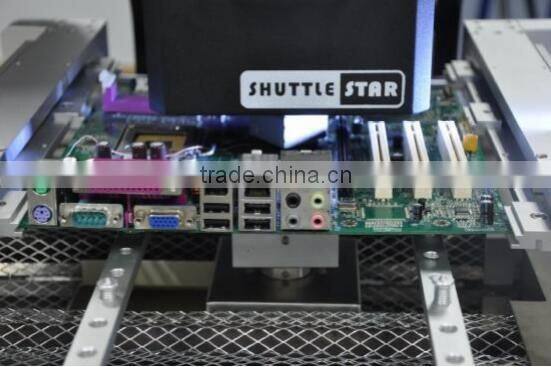

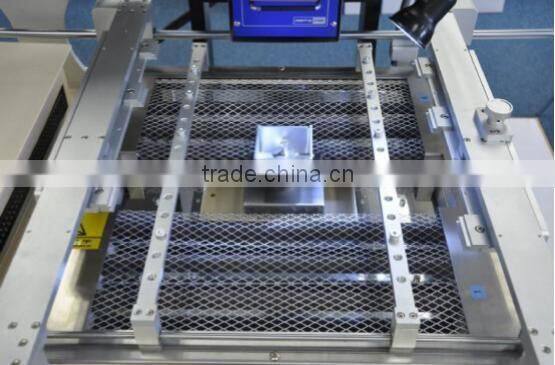

(Large Bottom IR heating Area)

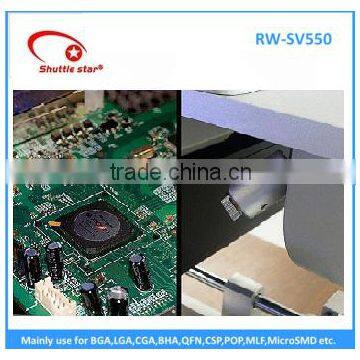

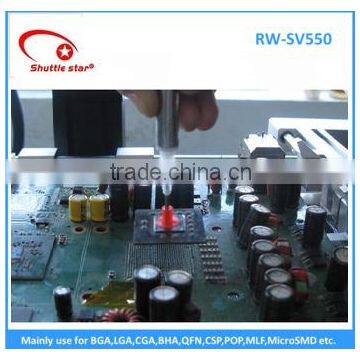

(Nozzle for top heater automatically draw BGA from PCB board)

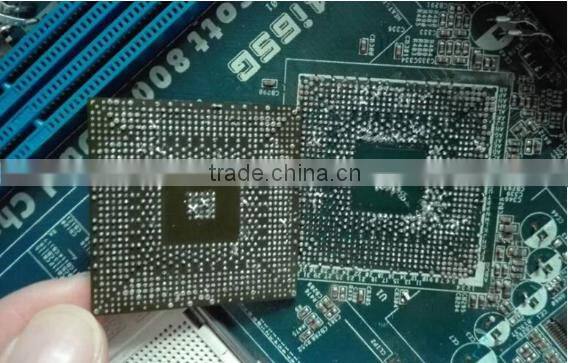

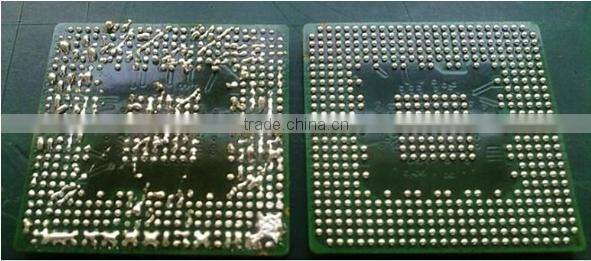

(The BGA ball broken)
(Bad bga after reballing)
Accessories show
Shuttle star industrial Co.,Ltd ,the company expert in bga rework station for 17years,the reliability and technology deposit are all recognized at home and abroad,
High quanlity assurance is our task and also what we are doing now. so if you are looking for bga rework station,we are definitely your best choice.
Certifications
All of our ic replacement Station is approved by CE and ISO Certification.
Customers Visit
Some customers from home and abroad come to visit our factory, we arrange the technician to show the machine operation.
Free training is available, many oversea customer train in our factory. Warmly welcome you to visit our factory !
1.Shuttle Star will offer free training on operating personnel and service within the warranty, but all the travelling cost and relative cost will be on the buyer’s account if incurred.
2. Shuttle Star offers free lifelong maintenance in our office and training for maintenance.through telephone, email and online webcam.
3. Under warranty, Shuttle Star sends spare parts to the customer and affords all the cost and freight ifany spare part is broken.
4. Beyond warranty, Shuttle Star charges for the spare parts and the freight for shipping will be on the buyer’s account if customer needs our spare parts.
1, All machines will be packaged in wooden box if the buyers ask no special demand.
2, It is free shipping in mainland.
3,Shipping by DHL,UPS,TNT,EMS,by air or sea,we will choose best for you.
We suply many kinds of BGA Rework Station with top quality and best price , If you have any more needs , welcome to contact us .
Krystal ma:
Whatsapp:008615207156410
Skype:krystal19942016
Wechat:xika1994
