Shuttle Star full-auto optical laptop repair tool kit RW-SV560A bga rework station
| PCB Size | W20*D20 ~ W550mm x D500mm |
| Workable area | W550*D500mm |
| PCB Thickness | 0.5~ 4mm |
| Applicable BGA | 1*1~80*80mm |
| Working table adjustment | Front/Rear ± 10mm Left/Right ± 10mm |
| PCB locating way | Jig |
| placement precision | ±0.01mm |
| Min pitch of bga ball | 0.15mm |
| Gross power | 5600W |
| Bottom IR Preheat | 3600W |
| Top heater | 1200W |
| Bottom heater | 800W |
| MAX BGA weight | 80g |
| Power supply | Single Phase, 220VAC, 50/60 Hz |
| Machine dimension | L750*W705*H800mm |
| Weight | Approx 100kg |
Illustration
Detail Picture

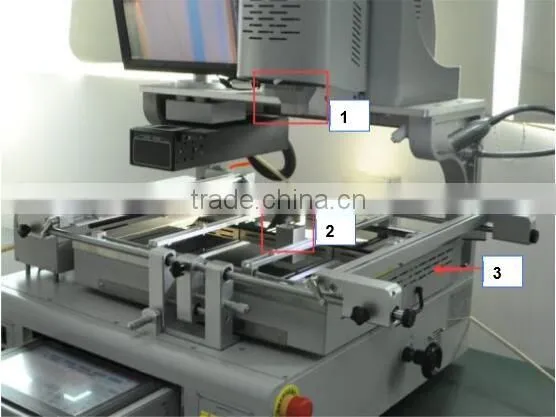

Three heaters heating independently
1. Upper hot air heater head and mounting head 2 in 1
2. Movable lower hot air heater
3. Moveable bottom IR preheating plate
4. Suction nozzle can identify material and mounting height automatically, and control the air pressure within a small range

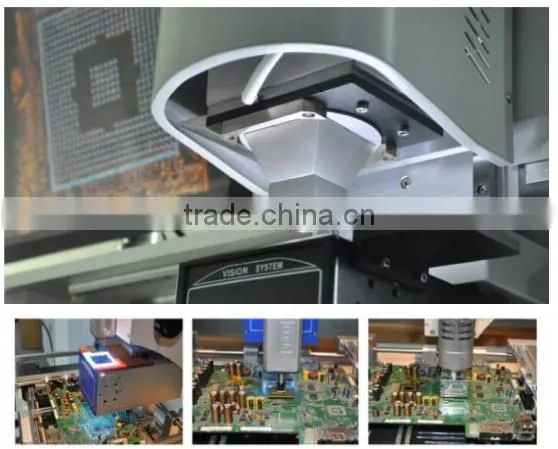

fully autp optical alignment system

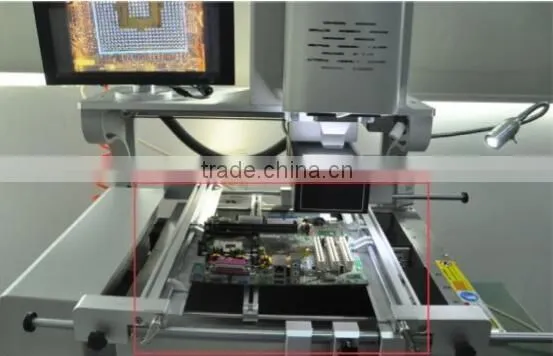

(Flexible PCB Clamp Jig and Supports Rail)

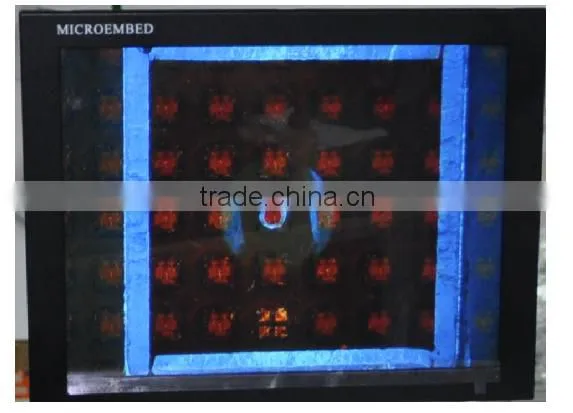

(LCD Display - HDMI 1080P Optical alignment imaging )
(Automatic Pick-up&alignment& placement&soldering)
(IR wave gilding heater plate with high temperature glass)

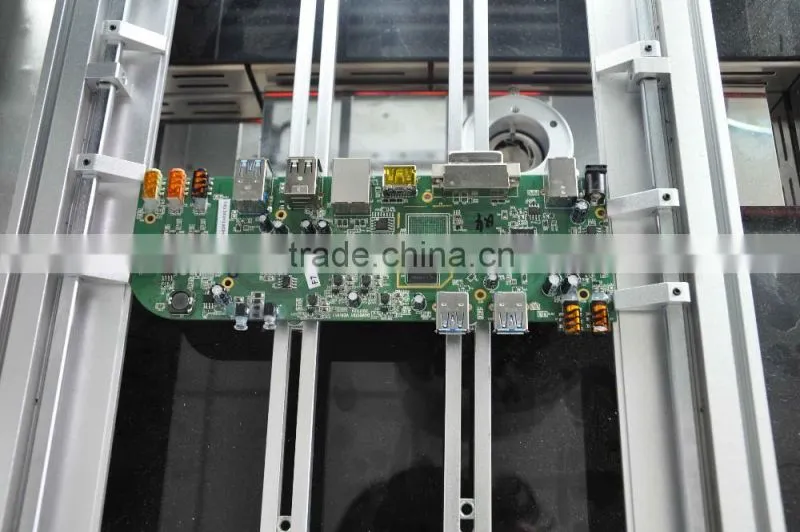

( put pcb on the supports,make sure the cores of bga )
BGA reballing tools
