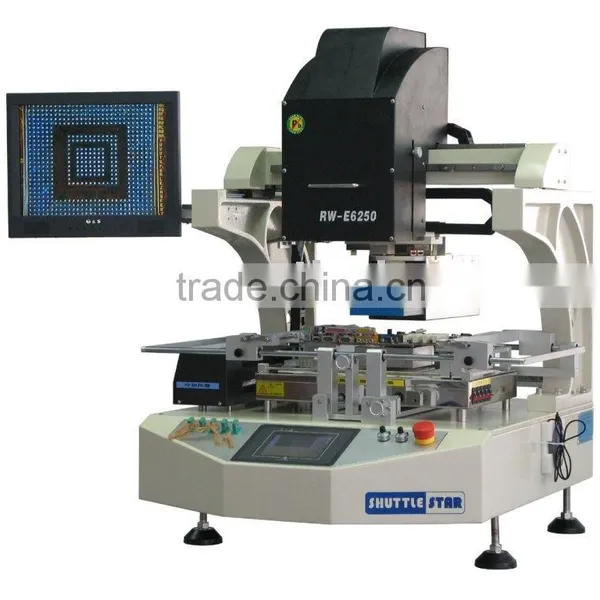

Full-auto BGA repair machine Shuttle Star RW-E6250
Specification
- PCB dimension: W20×20~W450×W400mm
- PCB thickness: 0.5~4mm
- Applicable chip size: 1×1~70×70mm

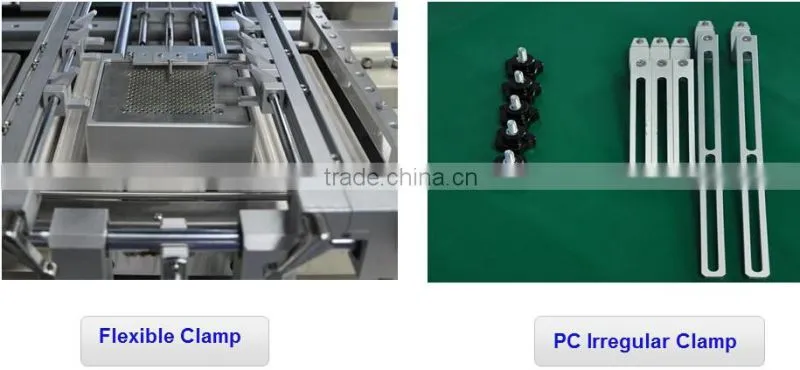

- PCB locating way: outer or jig
- Working table adjustment: ±10mm forward/backward, ±10mm left/right
- Temperature control: K-type thermocouple, close cycle controlled
- Preheater: far infrared, 6000W
- Top heater: hot air,1000W
- Bottom heater: hot air, 1000W
- Power supply: single-phase 220V, 50/60Hz, 6KW
- Air supply: 5~8kgf/cm2,60L/min
- Machine dimension: L850×W700×H950mm
- Weight: Approx.150Kgs
Description
* Hot air head and mounting head are designed 2 in 1, and have both the auto soldering and mounting function;
* Color optical system with functions of split vision, zoom - in and micro-
adjustment,equipped with aberration detection device; with auto focus and software
operation function,22X optical zoom; able to rework BGA sized up to 70mm×70mm;

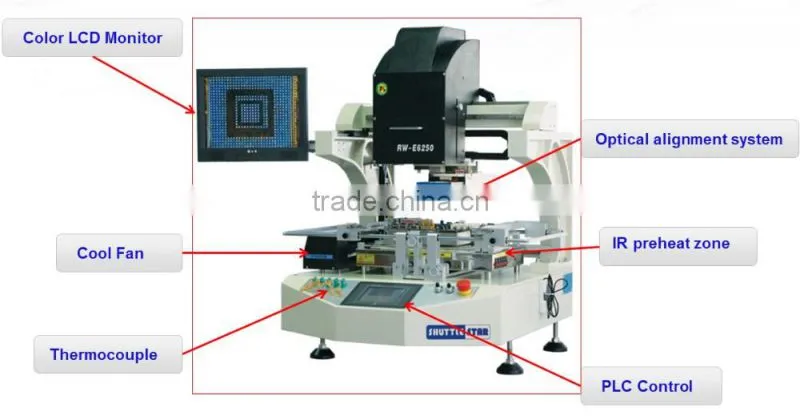

* Touch screen interface, PLC control; able to display temperature curves and five detecting curves at the same time;
* Color LCD monitor;
* Built-in vacuum pump; 360° rotation in Φ angle; mounting nozzle is micro-adjustable;
* 6 segments of temperature up (down) and 6 segments constant temperature control, 200
groups of temperature curve are stored; Curve analysis can be carried out on the touch
screen and has the communication function as computers ,with software attached;
* Able to arrive at three independent temperature zones,temperature and time can be
displayed digitally on the touch screen;able to rework CGA;
* The supports rack can be adjusted to restrain the local sinkage of the BGA soldering area;

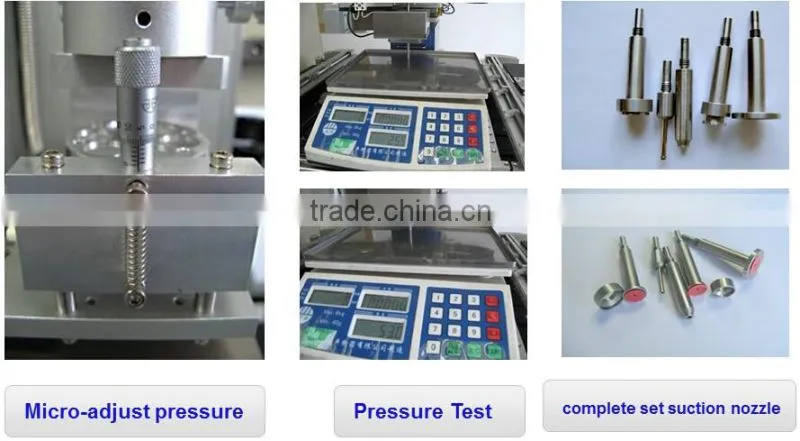

* Suction nozzle can identify material and mounting height automatically, and can control the
air pressure within a small range;

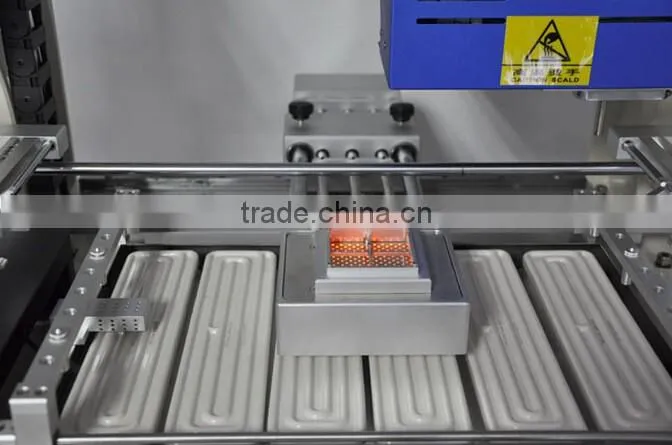

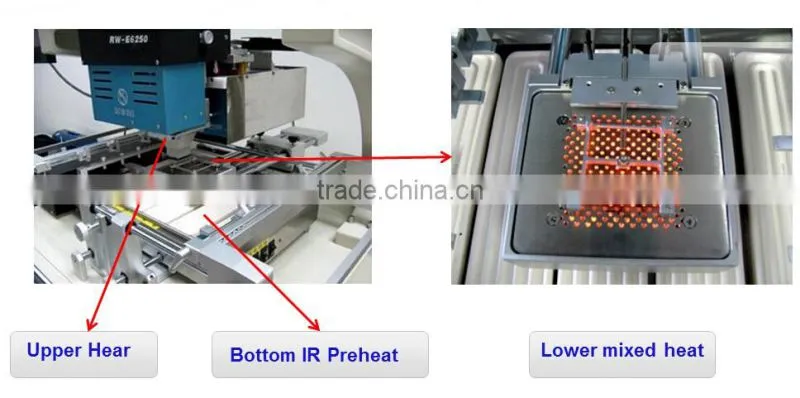

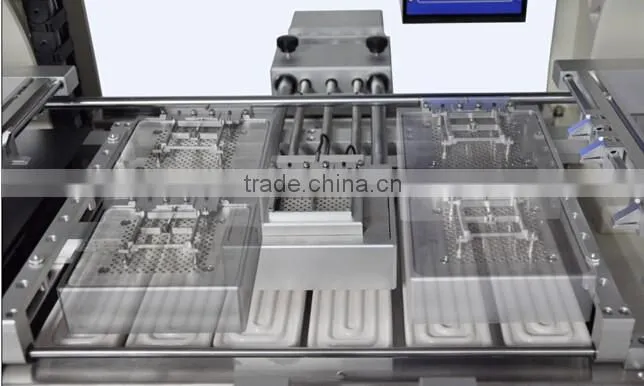

* Both upper and lower hot-air heating head are movable on the IR preheating area to fit for
reworking BGA in different positions on PCB;

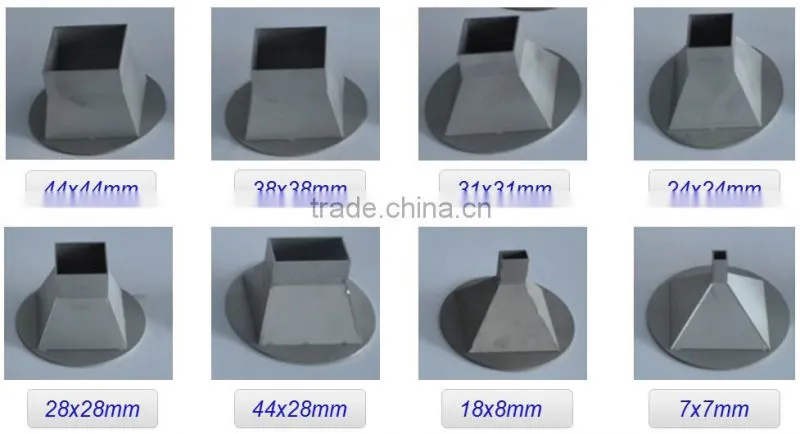

* Equipped with different alloy hot air nozzles, easy to replace and able to locate in any angle.
* Driven by the servo motor,the integrative hot air head can store 20 groups of different BGA
heating points and register marks.
Details:

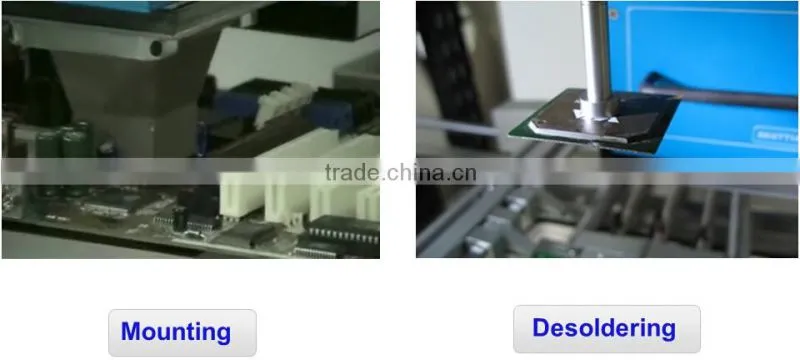

AUTO Mounting and AUTO Desoldering

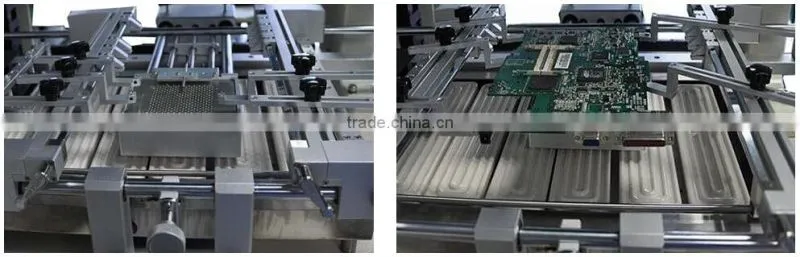

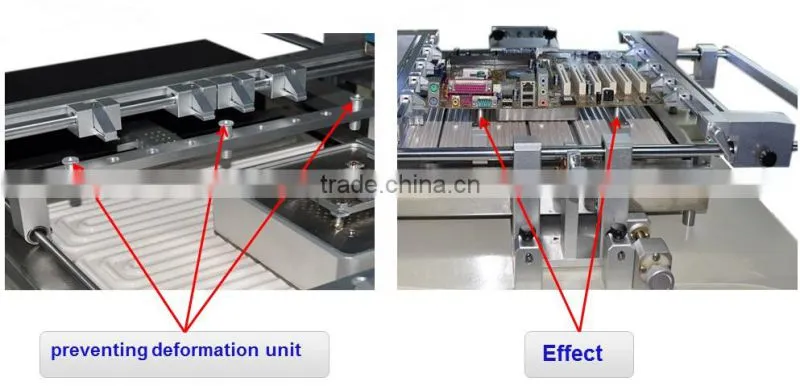

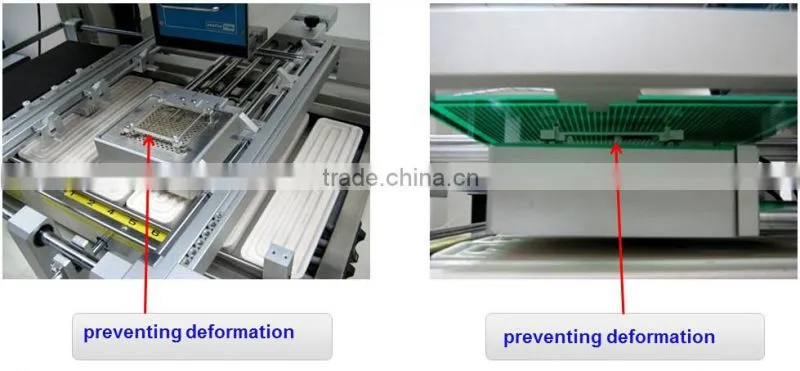

Anti-Deformation Unit:
Packed in wooden cases.
Transportation way can choose, express, shipping, air freight, freight charges shall be borne by buyer.
* Warranty:
1 Year Manufacturers warranty except for wear items like nozzles, tips and elements. Service is done in China .
Call us if you have any questions : +8618274966607
* Payments:
TT/ PayPal / Western Union is our preferred method of payment. After your payment, we will deliver machines within 7 working days.
- Brand Shuttle Star since 2000, it is the first one to do China-made BGA Rework Station;
- Shuttle Star is the only BGA rework machine manufacturer who can offer digital signal/digital imaging system;
- Shuttle Star can reach 0.002mm mounting precision,i think it is world's advanced level;
- Shuttle Star have hundreds brand customers and awards;
- Shuttle Star know well the design struction and principal for bga rework. what's more, 80% China suppliers are originated from Shuttlestar;
- Shuttle Star always change ,we can do better in the future;
