Infrared Bga Rework Station Motherboard Repair for Iphone With High Efficient

Infrared Bga Rework Station Motherboard Repair for Iphone With High Efficient thumbnail-1

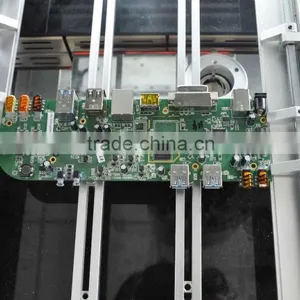

Infrared Bga Rework Station Motherboard Repair for Iphone With High Efficient thumbnail-2
Infrared Bga Rework Station Motherboard Repair for Iphone With High Efficient thumbnail-3
Infrared Bga Rework Station Motherboard Repair for Iphone With High Efficient photo-1

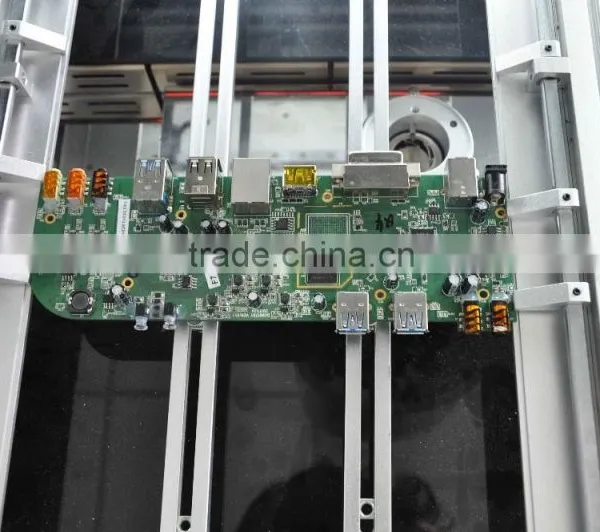

Infrared Bga Rework Station Motherboard Repair for Iphone With High Efficient photo-2
Infrared Bga Rework Station Motherboard Repair for Iphone With High Efficient photo-3
US$ 1 - 1 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Shuttle Star
Model Number:
SV560A
Contact Supplier Request Quote Chat Now
Shenzhen Shuttle Star Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Shanghai/Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Shuttle Star
Model Number SV560A
Voltage 220V, 220V
Current 10A
Rated Capacity 6kw
Rated Duty Cycle 100%
Dimensions L746*W710*H820mm
Weight 90kg, 90kg
Usage BGA Rework
Certification ISO9001:2008, ISO9001:2008
After-sales Service Provided Engineers available to service machinery overseas

Infrared bga rework station motherboard repair for iphone with high efficient

Main  Features

1.Fully automatic optical alignment machine

2.Upper hor air heater head and mounting head 2 in 1

3.Large movable bottom IR bottom heating area

4.Touch screen operation interface

5.LCD display-HDMI 1070P optical alignment imaging



Product Description



Parameters

Applicable PCB Size:W20mm*D20mm ~ W550mm*D500mm
Applicable BGA Size: 1mmX1mm ~ 80mmX80mm

PCB Thickness:0.5~4mm
Max BGA Weight:80g
Upper heater(Hot Air):800W
Lower heater(Hot Air):1200W
Bottom Preheat IR heater:3600W

Temperature Control: K-type Thermocouple ,Close Cycle Controlled

Placement Precision:0.01mm

Min pitch of BGA Ball:0.15mm
Machine Dimension:L720mm*W705mm*H860mm
Machine Weight:70KG
Power supply: AC 220V 5.6KW



Structure Illustration

Infrared bga rework station motherboard repair for iphone with high efficient

Three heaters heating  independently



 Infrared bga rework station motherboard repair for iphone with high efficient



Infrared bga rework station motherboard repair for iphone with high efficient

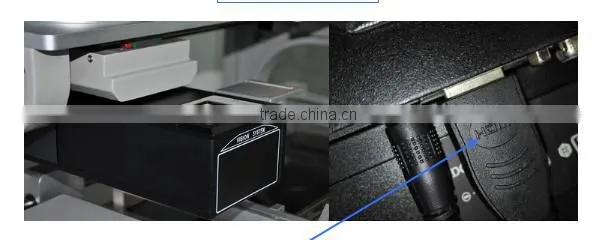

                                                           Movable Optics

Infrared bga rework station motherboard repair for iphone with high efficient



                                       HDMI Digital Imaging 1080P technology



Infrared bga rework station motherboard repair for iphone with high efficient

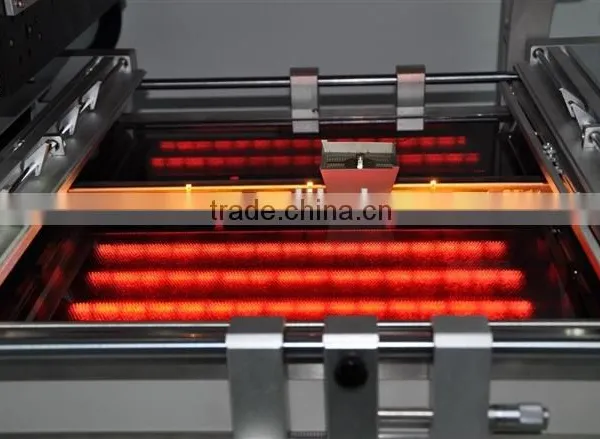

                      IR wave gilding heater plate with high temperature glass

Infrared bga rework station motherboard repair for iphone with high efficient

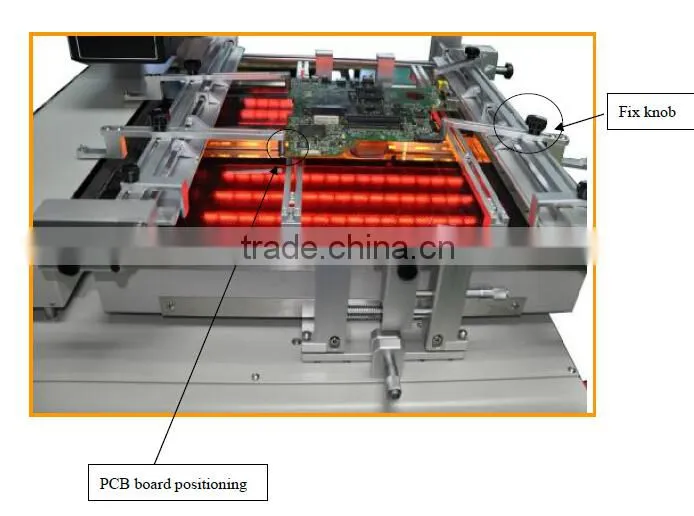

Flexible PCB jigs , easy to fix



                                                  Infrared bga rework station motherboard repair for iphone with high efficient

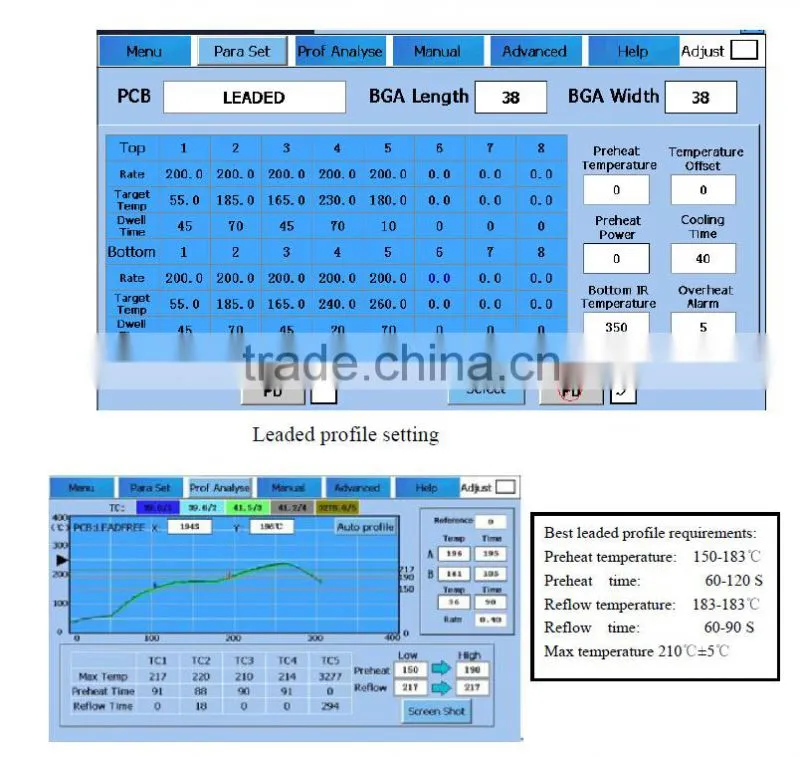

Touch screeng digital display



More specifications

 1. Hot air heater head and mounting head are designed 2 in 1, have both the auto soldering and mounting
     function;
 2. Three heaters( top/spot hot air heater, bottom IR heater) heating independently, with auto protection
     function while heating abnormally ,time and temperature can be displayed digitally on touch screen;
 3. Top heating system and cooling system are designed 2 in 1, temperature controlled accurately and evenly.
 4. Bottom heater is IR wave gilding heater plate, with high temperature glass, temperature increasing and
    decreasing rapidly; profile setting accurate to protect the PCB from deformation, easy to solder, energysaving
    and environment friendly.
 5. Powerful cross flow fans cool the bottom heating area rapidly with stable speed;
 6. Color optical system with functions of split vision, zoom in/out and micro-adjust, equipped with aberration
    detection device; with auto focus and software operation function,1.3 million pixel high-definition camera.
 7. 15’’ high-definition LCD monitor.
 8. Both top and spot hot-air heating head can move Z axis automatically, Optical vision system can move
    along with X,Y axis automatically, install damping device ,easy operation.
 9. Large movable bottom IR heating area, PCB clamps can be adjusted along with X & Y table
    flexibly, the max PCB size it can handle up to 550*500mm;
10. Embedded industrial computer, touch screen interface, PLC control, real-time temperature curve display,
     able to display temperature curves and practical curves as the same time: can analyze the practically-
     tested profile, and compare them with the history saved profiles;
 11. Built-in vacuum pump, 60 °rotation in φ angle, mounting nozzle is micro-adjustable;
 12. 8 segments of temperature up(down) and 8 segments constant temperature control, profile saving is
      unlimited in the industrial computer;
 13. Suction nozzle can identify material and mounting height automatically, and can control the air pressure within a           small range ;
 14. Big size splint, equipped with deformation-proof supporting device, suitable for the accurate rework of all
     kinds of PCB;
 15. This product has patents: ( heating apparatus ZL 2009 2 0262216.X utility model; 2. top heater
     component t ZL 2009 2 0162612.5 utility model; 3.suction nozzle device ZL 2007 2 0127185.8 utility
     model; 4. top heating apparatus ZL 200910238919.3 inventive patent.)




BGA reballing tools

  Infrared bga rework station motherboard repair for iphone with high efficient



Company Information







Company Information



Infrared bga rework station motherboard repair for iphone with high efficientInfrared bga rework station motherboard repair for iphone with high efficient



Our Customers
Infrared bga rework station motherboard repair for iphone with high efficient

       Some customers from aborad came to see our showroom and factory



Infrared bga rework station motherboard repair for iphone with high efficient


Our Services





 Our service

1.Warranty : one year

2. Payment terms: Bank transfer, west union, T/T, Paypal,etc for you choose

3.24 hours online

4.Shipping by air or sea,international express ,DHL,UPS,Fedex,etc



Packaging & Shipping



Packaging



Infrared bga rework station motherboard repair for iphone with high efficient





Infrared bga rework station motherboard repair for iphone with high efficient
