High-end full auto BGA rework equipment to repair laptop/desktop/ps3/xbox board
specifications
bga repair machine
optical alignment system
laser positioning
High precision
CE;ISO9001 approved

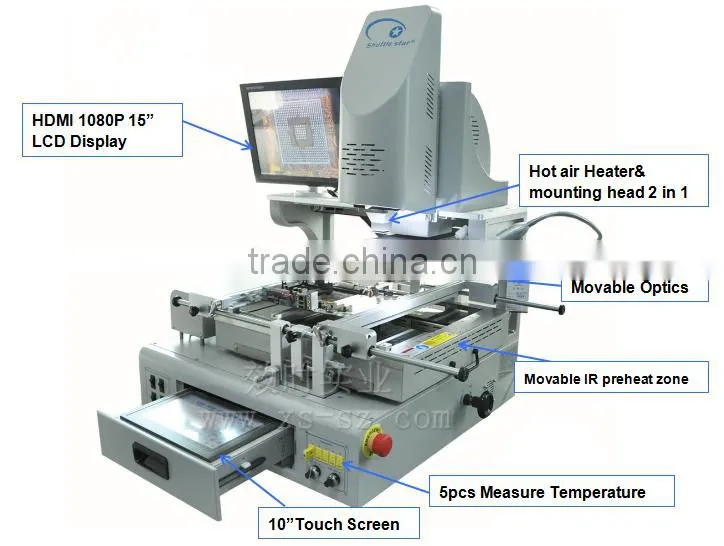

Illustration
Detail Show
Three temperature zone
1) Top hot air heater
2) Bottom hot air heater
3) Bottom IR preheat - Prevent PCB board deforming
HD color optical camera system
1) Split vision
2) Zoom in/out and micro-adjust
3) Equipped with aberration
4) Detection device
5) With auto focus and software operation function
Movable Optics
IR wave gilding heater plate with high temperature glass
Technical Parameters
Specifications: (SV560A) | |
PCB dimension | W20*20~500*550mm |
PCB thickness | 0.5~4mm |
Working table adjustment | +/-10mmforward/backward,+/-10mm left/right |
Temperature control | K-type thermocouple, close cycle controlled |
PCB locating | Outer |
Upper heater | Hot gas 1200w |
Lower heater | Hot gas 800w |
Bottom preheat | Far infrared 3600w |
Power supply | Single-phase 220,50/60Hz. 5.5kw |
BGA dimension | 1*1~70*70mm |
Min pitch of BGA ball | 0.3mm |
Placement precision | 0.01mm |
Max BGA weight | 80g |
Machine dimension | L850*W750*H630mm |
Machine weight | Approx. 92kg |
1.Shuttle Star will offer free training on operating personnel and service within the warranty, but all the travelling cost and relative cost will be on the buyer’s account if incurred.
2. Shuttle Star offers free lifelong maintenance in our office and training for maintenance.through telephone, email and online webcam.
3. Under warranty, Shuttle Star sends spare parts to the customer and affords all the cost and freight ifany spare part is broken.
4. Beyond warranty, Shuttle Star charges for the spare parts and the freight for shipping will be on the buyer’s account if customer needs our spare parts.
Shipping
DHL, UPS, TNT, EMS,By Sea,By Air,we will choose the cheapest for you.
How long judge by the city.
Shuttle star industrial Co.,Ltd ,the company expert in bga rework station for 17years,the reliability and technology deposit are all recognized at home and abroad, High quanlity assurance is our task and also what we are doing now. so if you are looking for bga rework station,we are definitely your best choice.
Certifications
All of our ic replacement Station is approved by CE and ISO Certification.
Customers Visit
some customers from home and abroad come to visit our factory, we arrange the technician to show the machine operation.Free training is available, many oversea customer train in our factory. Warmly welcome you to visit our factory !
Krystal ma
Wechat:xika1994
Skype:krystal19942016
Whatsapp:0086 15207156410
So interesting? Please contact me,let’s talk more in details.Thank you for your time.
