Home > Construction & Decoration > Decoration Materials > Sandwich Panel > Aluminum Coil for Constuction Material

Aluminum Coil for Constuction Material

Name: Aluminum Coil for Constuction Material
Brand: Jinhu
SKU: 134334667
Availability: InStock

US$ 2,000 - 5,000 MOQ: 20 Tons

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Jinhu

Model Number:

Al-12

Linyi Jinhu Color Coating Aluminum Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name Jinhu

Model Number Al-12

Material Aluminum Alloy

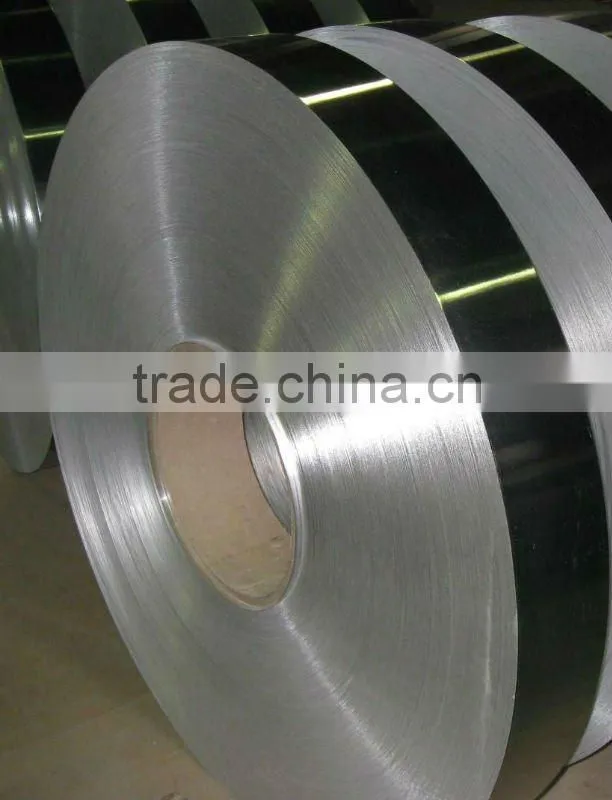

aluminum coil for constuction material

We are factory with over 10 years history of producing color coated aluminum coil.

It mainly used for: aluminum composite panels (ACP), aluminium gutter, curtain, wall cladding, facades, roofs and so on.

We have 10 the color coating production lines , 9 rewinding production lines,

6 embossing machines, 1 aluminum slitting machine. with annual capacity 48, 000 tons

Your detail inquiry is appreciated and we will reply to you as soon as posible.

Best Regards,

Cherry Yao

Mobile: 0086-18264985614

Trade Manager: cn1000253694

01) Alloy: A1050, A1100 A3003etc.

02) Aluminum thickness: 0.022-0.80mm

03) Standard width: 1240mm

max aluminum width: 1570mm

Special width such as 110,185,242,1270mm, 1520mm, 1570mm are available

04) Coil's standard diameter: 1200mm

Interior diameter: 150mm, 405mm,505mm etc.

05) 0.5-3.0T/coil or by buyer's option

06) Color: RAL Color chart, our color chart, by your samples

07) Coating face: PVDF, PE or ACRYLIC

TECHNICAL PARAMETERS OF JINHU COLOR COATED ALUMINUM COIL
ACRYLIC ACID		POLYESTER		PVDF
Item	Technical requirements	Item	Technical requirements	Item	Technical requirements
Thickness of coating film	≥ 12 µm	Thickness of coating film	≥ 18 µm	Thickness of coating film	≥ 25µm
Gloss deviation	gloss<65, tolerance≤10% gloss≥65, tolerance≤5%	Gloss deviation	gloss<70, tolerance≤10% gloss≥70, tolerance≤5%	Gloss deviation	gloss<70, tolerance≤10% gloss≥70, tolerance≤5%
Hardness of pencil	≥2H	Hardness of pencil	≥3H	Hardness of pencil	≥3H
Adhesion	no lower than class 1	Adhesion	no lower than class 1	Adhesion	no lower than class 1
Flexibility	≤3T	Flexibility	≤2T	Flexibility	≤2T
Boiling water resistance	no change (2h)	Boiling water resistance	no change (2h)	Boiling water resistance	no change (2h)
Color difference	ΔE≤2.0	Color difference	ΔE≤2.0	Color difference	ΔE≤2.0
MEK	≥70 times	MEK	≥100 times	MEK	≥150 times
