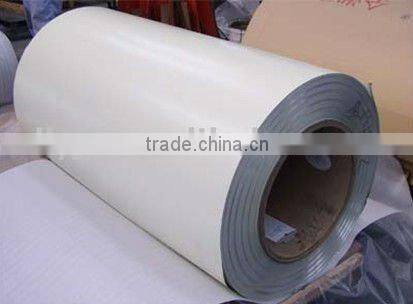

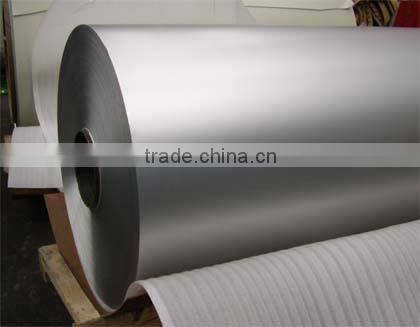

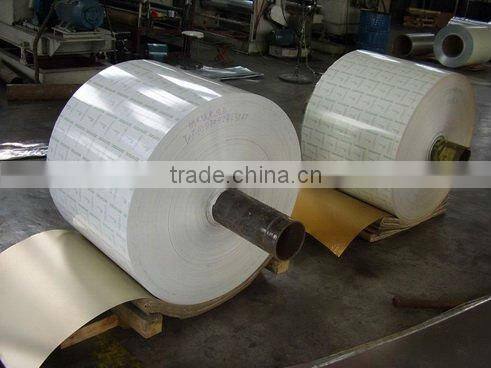

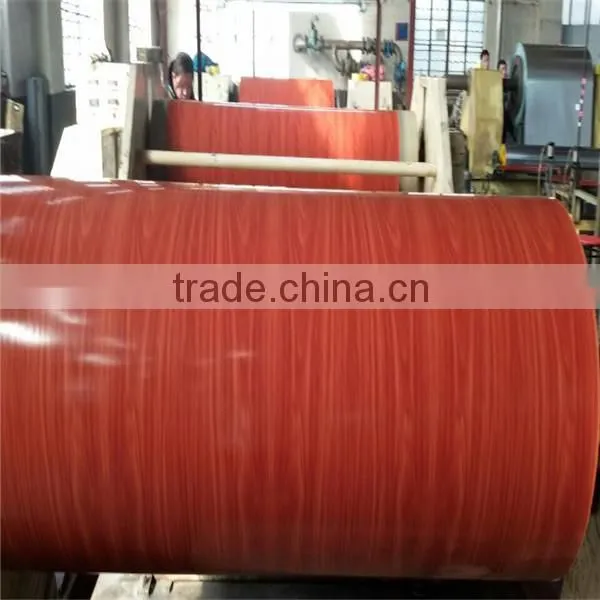

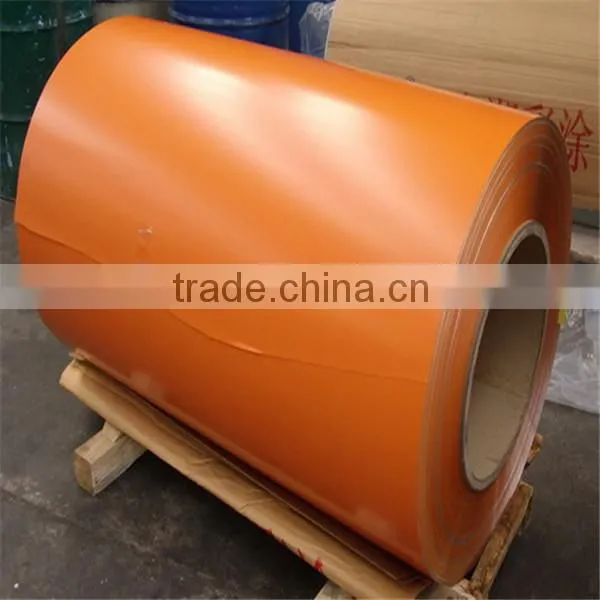

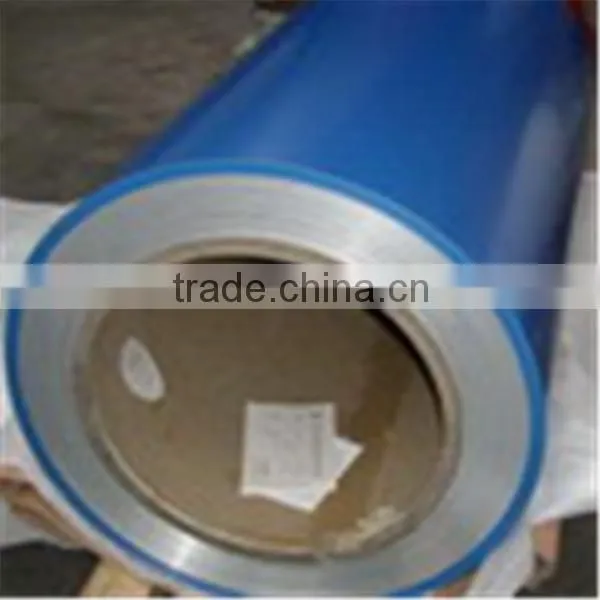

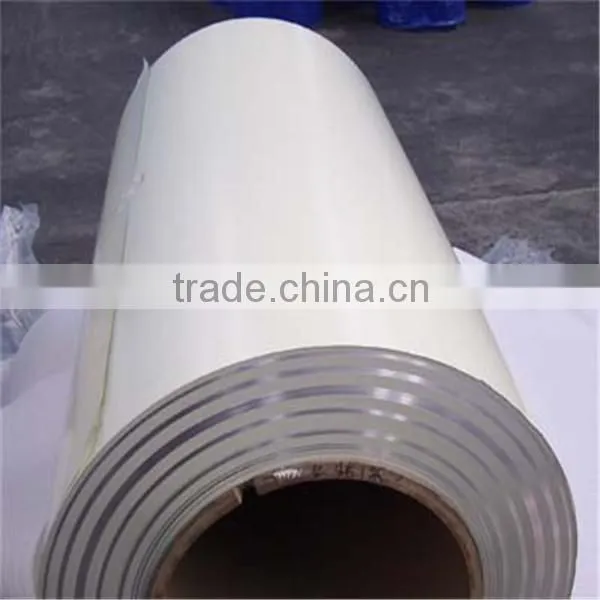

color coated aluminum coil for aluminium composite panels in South America
We are factory with over 12 years history of producing color coated aluminum coil.
It mainly used for: aluminum composite panels (ACP), aluminium gutter, curtain, wall cladding, facades, roofs and so on.

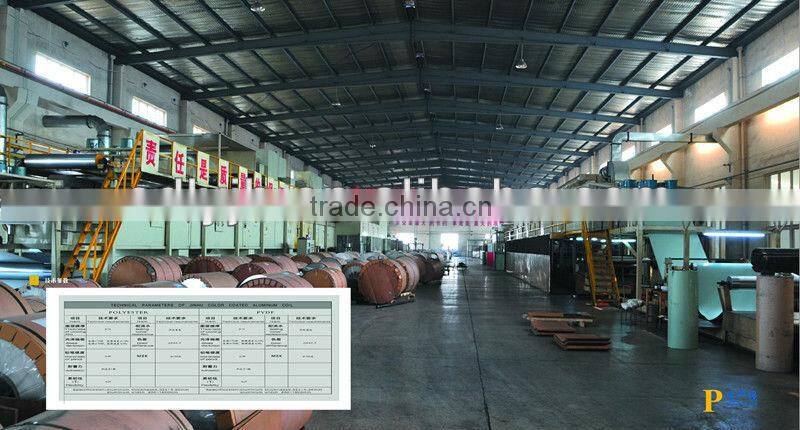

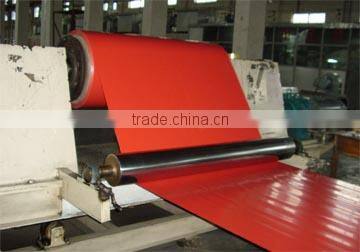

We have 10 the color coating production lines , 6 rewinding production lines,
5 embossing machines, 1 aluminum slitting machine. with annual capacity 48, 000 tons
Your detail inquiry is appreciated and we will reply to you as soon as posible.
Best Regards,
Cherry Yao
Mobile & Whatsapp: 0086-18264985614
Trade Manager: cn1000253694

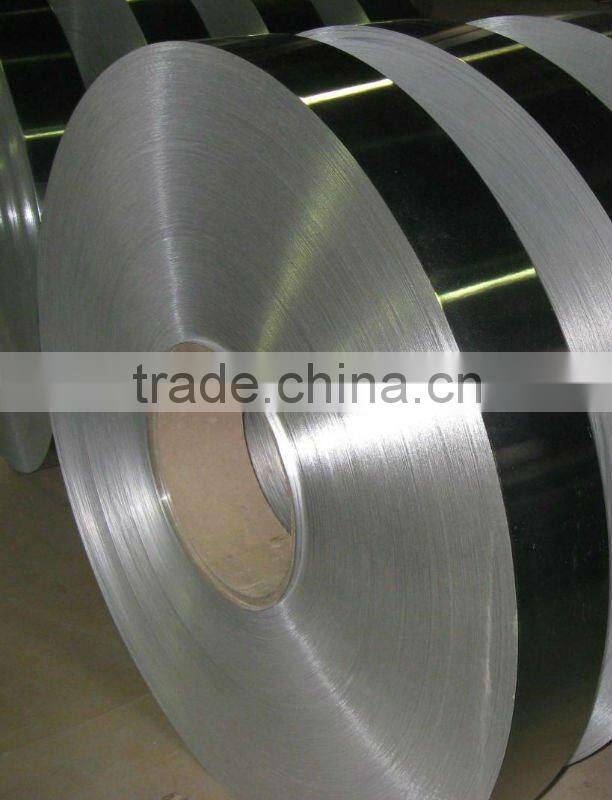

01) Alloy: A1050, A1100 A3003etc.
02) Aluminum thickness: 0.018-1.0mm
03) Standard width: 1240mm
max aluminum width: 1570mm
Special width such as 110,185,242,1270mm, 1520mm, 1570mm are available
04) Coil's standard diameter: 1200mm
Interior diameter: 150mm, 405mm,505mm etc.
05) 0.5-3.0T/coil or by buyer's option
06) Color: RAL Color chart, our color chart, by your samples
07) Coating face: PVDF, PE or ACRYLIC
| TECHNICAL PARAMETERS OF JINHU COLOR COATED ALUMINUM COIL | |||||
| ACRYLIC ACID | POLYESTER | PVDF | |||
| Item | Technical requirements | Item | Technical requirements | Item | Technical requirements |
| Thickness of coating film | ≥ 12 µm | Thickness of coating film | ≥ 18 µm | Thickness of coating film | ≥ 25µm |
| Gloss deviation | gloss<65, tolerance≤10% gloss≥65, tolerance≤5% |
Gloss deviation | gloss<70, tolerance≤10% gloss≥70, tolerance≤5% |
Gloss deviation | gloss<70, tolerance≤10% gloss≥70, tolerance≤5% |
| Hardness of pencil | ≥2H | Hardness of pencil | ≥3H | Hardness of pencil | ≥3H |
| Adhesion | no lower than class 1 | Adhesion | no lower than class 1 | Adhesion | no lower than class 1 |
| Flexibility | ≤3T | Flexibility | ≤2T | Flexibility | ≤2T |
| Boiling water resistance | no change (2h) | Boiling water resistance | no change (2h) | Boiling water resistance | no change (2h) |
| Color difference | ΔE≤2.0 | Color difference | ΔE≤2.0 | Color difference | ΔE≤2.0 |
| MEK | ≥70 times | MEK | ≥100 times | MEK | ≥150 times |
ACM is aluminum composite material consisting of two aluminum cover sheets sandwiching a nontoxic low density polyethylene core produced from a continuous extrusion process. When the ACM is used for external cladding of buildings, it is usually called aluminum composite panel, shortened as ACP.

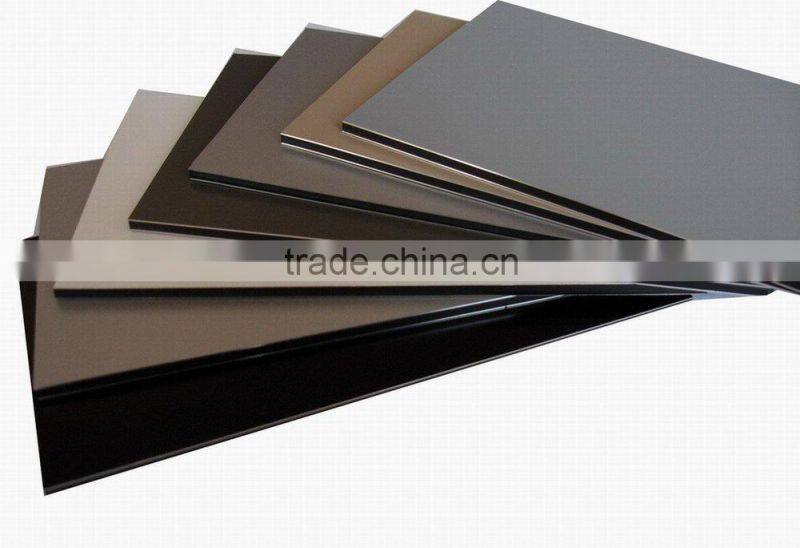

SUNSHINE is a composite panel consisting of 0.50mm aluminum skin on both sides with a polyethylene core. The low weight sheet material can be easily fabricated, making it an ideal wall cladding building material.
SUNSHINE PVDF aluminium composite panel Application:
Office buildings, Shopping centers, Airports, Industrial buildings,Hotels, Bus center, Hospitals, Schools, Supermarkets, Residential buildings.
SUNSHINE PVDF aluminium composite panel Raw material:
Base material |
high strength aluminum alloy sheet |
| PE core material | non-toxic low density polyethylene |
| Surface coating | PVDF Kynar500 coating |
| Back coating | primer coating |
SUNSHINE PVDF aluminium composite panel Product Specification:
Aluminum alloy |
AA1100 series, AA3003 series |
| Aluminum skin | 0.30mm, 0.40mm, 0.45mm, 0.50mm |
| Thickness | 3mm, 4mm,5mm, 6mm |
| Width | 1220mm, 1250mm, 1500mm,1575mm |
| Length | up to 6000mm |
| Color | 30 kinds |
| Special size and color can be customrized | |
SUNSHINE PVDF aluminium composite panel Characteristics:
- Superior Weather Resistance
- Light Weight and Easy to process
- Excellent Fire Resistance Properties
- Coating Evenness
- Diversified Colors
- Easy for Maintenance
- Impact Resistance
- High Resistance to Peeling
