Specifications
1. HDMI fiber optical transceiver with 10G bandwidth2.1-ch HDMI input,1-ch output
3.720p/1080i/1080p
4.0-120km
5.FCC CE RoH
Product name: HDMI fiber optical transceiver with 10G bandwidth
Product category: Digital HD video fiber optic transmission system
Product introduction
1. Overview

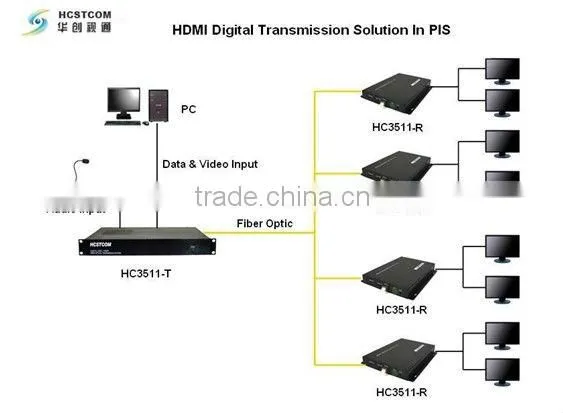

HC3511 High Quality HDMI Fiber Optics Supplier could achieve HDMI digital audio/video signal long-distance transmission. No attenuation, bandwidth, good anti-jamming performance, security performance, small size, light weight and so on during transmission, with incomparable advantages in the long distance and special environment; adoption HDMl interface, one HDMl cable connects HDTV, which could be up to crisp and clear image, 192K sampling rate and 8-channel high-fidelity audio; save construction cost and complexity of the alignment, also ensure high quality. HC3511-T is optical transmitter; HC3511-R is optical receiver, conjunction with the two
2. Features
« Support highest resolution: 4096×2160/60HZ
« Support HDTV highest resolution up to 1080P
« Support HDMI1.4interface, 3D
« Support 1-channel HDMI with 1-channel embedded audio
« LC interface, hot swap
« Single-mode, one 1-core fiber
3. Specifications
a) video
PC highest resolution: 4096×2160/60HZ HD-DVD resolution: 720p/1080i/1080p
Signal bandwidth: 10Gpbs
TDMS Signal pressure: 1.2volts p-p
DDC signal pressure: 5volts p-p (TTL)
b) optics
Type: meet 1000BASE_LX optical connection
Wavelength: 1310nm
Launch power: -9.5~-3dBm, average power @850nm
Receiver sensitivity: -23dBm
Output Modulation amplitude: 180μW
Input Modulation amplitude: ≤15μW
Signal strength: -116 DB/Hz
Return loss: ≤10 dB
Transmission bit rate: 240M Hz~1.65G Hz
Transmission distance: 1m-500m multimode, 1m-10Km single-mode
c) power
Consumption: 5W (max.)
Pressure: 9-12VD
d) Other
Operating temperature: -25°C~+70°C
Storage temperature: -40°C~+80°C
Relative humidity: 0~95%(no condensation)
Dimension: 85*55*23mm
4. Applications
Remote OB Van/Truck Video Feeds;
Broadcast Studio Camera Feeds;
Long-haul Signal Transport;
TV station/video conference;
Lecture Hall Projector Connectivity;
Medical/Surgical Room Broadcast;
Small corporate campus video links
5. Ordering information
HDMI fiber optical transceiver with 10G bandwidth
HC3511K-T
1-ch HDMI with embedded audio input, single-mode (multimode optional), Stand-alone, standard 1-10km, and LC/PC connector, uncompressed technology
HC3511K-R
1-ch HDMI with embedded audio output, single-mode (multimode optional), Stand-alone, standard 1-10km , LC/PC connector, uncompressed technology
| Successful cases (partial) | |||
| No | END USER | project or application | referred products |
| 1 | Harbin TV | live broadcast and rebroadcast | Broadcast quality AV transceivers |
| 2 | Shenyang TV | vocal concert and evening party live broadcast | Broadcast quality AV transceivers |
| 3 | Chongqing TV | CQU Anniversary Great evening party live broadcast | Broadcast quality AV transceivers |
| HD-SDI series transceiver | |||
| 4 | HNTV | outdoor great entertainment live broadcast | Broadcast quality AV transceivers |
| HD-SDI series transceiver | |||
| 5 | SCTV | Channel 5 live broadcast | Broadcast quality AV transceivers |
| 6 | AHTV | outdoor live broadcast | HD-SDI series transceiver |
| 7 | Sinopec | HD video conference and meeting | HD-SDI series transceiver |
| 8 | Academy of Armored Force Engineering, | HD video conference and meeting | HD-SDI series transceiver |
| Oversea successful cases ( partial) | |||
| No | countries | location and application | referred products |
| 1 | Russia | Irkutsk oblast broadcast | Broadcast quality AV transceivers |
| 2 | Russia | KMAO,Nyagan,broadcast | Broadcast quality AV transceivers |
| 3 | Germany | Saxony, video transmission for big screen | HD-SDI series transceiver |
| 4 | Mongolia | National radio station | Broadcast quality AV transceivers |
| 5 | Australia | Queensland, video transmission | VGA series transceiver |
| 6 | Pakistan | Islamabad PTV SD video transmission | SD-SDI series transceiver |
| 7 | Iran | Isfahan Surveillance | serveillance transceiver |
