Specifications
1. HDMI extender over fiber optic with 4K resolution2.1-ch HDMI input
3.4K resolutioni
4.300m
5.FCC CE RoHS
INTRODUCTION

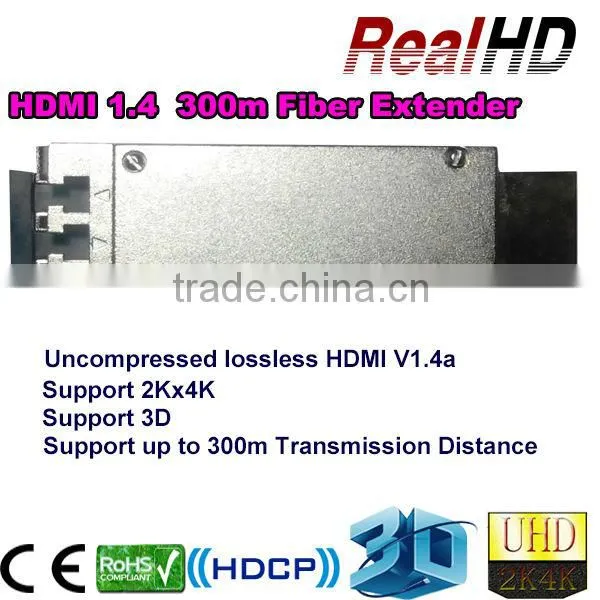

HDMI extender over fiber optic with 4K resolution resolution supports transmission of an uncompressed lossless HDMI 1.4a . Signal over multimode optical fiber at 850nm, up to distances at 300m,at a resolution of 4Kx2K. RHDEXFM300T converts an HDMI signal to a single 10Gb/s serial data stream for transmission over two optical fibers RHDEXFM300R converts the serial data back to an HDMI signal .
FEATURES
HDMI 1.4a
Support 4Kx2Kx30 Resolution
Support 3D.
Support HDCP
DDC CEC HDP Signal Support
Support up to 300m Transmission Distance at up to 10.3Gbps with OM3 Multimode Fiber
lntegrated USB Connector For Power
Hot-Pluggable
850nm VCSEL and PIN Photo detector
2-Wire Interface
2.0 SPECIFICATIONS
Signal Input/Output |
|
Input/Output port of transmitter |
HDMI Female x1 |
|
Fiber Female x1 |
|
Mini USB Female x1 |
|
|
Input/Output port of receiver |
HDMI Female x1 |
|
Fiber Female x1 |
|
Mini USB Female x1 |
|
|
Operating Frequency |
|
Vertical Frequency Range |
50/60HZ |
Video Amplifier Bandwidth |
Max up to 10.3Gbps |
Resolutions(HDTV) |
|
Interlaced(50&60HZ) |
480i ,576i,720i,1080i,4kx2k for HDMI |
Progressive(50&60HZ) |
480P,576P,720p,1080P,4kx2k for HDMI |
Mechanical |
|
Size(L-W-H) |
90X25X20mm |
Weight(Net) |
80g |
Environmental |
|
Operating Temperature |
0 °C-70°C |
Operation Humidity |
10%-85%RH(no condensation) |
Storage Temperature |
-10 °C+80°C |
Storage Humidity |
5%-90%RH(no condensation) |
Power Requirement |
|
External Power Supply |
USB POWER |
Power consumption(Max) |
1.4W |
Accessories Adapter |
|
User manual |
English Version |
PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:
1) Main unit No.1 Transmitter
2) Main unit No.2 Receiver
3) Two pieces of USB lines
4) User’s Manual
