HDMI digital receiver

Specifications

1.HDMI digital receiver
2.1-ch HDMI input,2-ch output
3.720p/1080i/1080p
4.0-120km
5.FCC CE RoHS

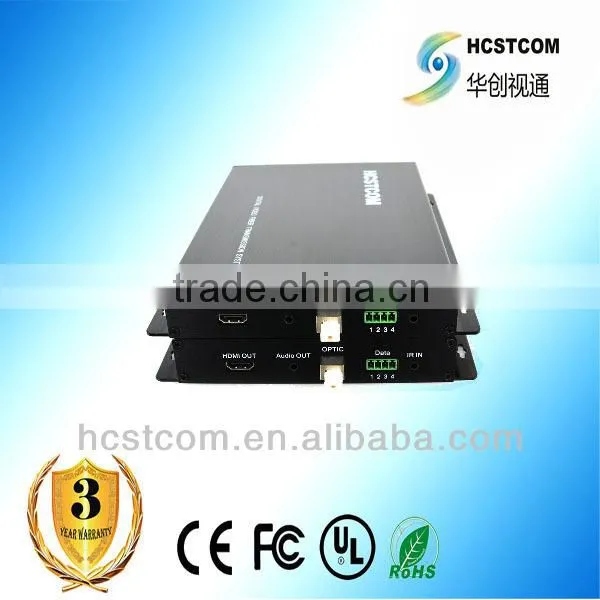

Product name: HC3511 HDMI digital receiver

Product category: Digital HD video fiber optic transmission system



Product introduction

1. Overview

HC3511 HDMI could achieve HDMI digital audio/video signal long-distance transmission. No attenuation, bandwidth, good anti-jamming performance, security performance, small size, light weight and so on during transmission, with incomparable advantages in the long distance and special environment; adoption HDMl interface, one HDMl cable connects HDTV, which could be up to crisp and clear image, 192K sampling rate and 8-channel high-fidelity audio; save construction cost and complexity of the alignment, also ensure high quality. HC3511-T is optical transmitter; HC3511-R is optical receiver, conjunction with the two



2.  Features

«   Support highest resolution: 1920×1200@60Hz

«   Support HDTV highest resolution up to 1080P

«   Support HDMI1.3 interface, compatible with HDMI1.2a standards

«   Support 1-channel HDMI with 1-channel embedded audio

«   SC interface, hot swap

«   Single-mode, 4-core fibers or one 1-core fiber


3.  Specifications

a)  video

PC highest resolution: 1920×1200@60Hz

HD-DVD resolution: 720p/1080i/1080p

Signal bandwidth: 1.65Gpbs

TDMS Signal pressure: 1.2volts p-p

DDC signal pressure: 5volts p-p (TTL)

b)  optics

Type: meet 1000BASE_LX optical connection

Wavelength: 1310nm

Launch power: -9.5~-3dBm, average power @850nm

Receiver sensitivity: -23dBm

Output Modulation amplitude: 180μW

Input Modulation amplitude: ≤15μW

Signal strength: -116 DB/Hz

Return loss: ≤10 dB

Transmission bit rate: 240M Hz~1.65G Hz

Transmission distance: 1m-500m multimode, 1m-10Km single-mode

c)  power

Consumption: 5W (max.)

Pressure: 9-12VD

d)  Other

Operating temperature: -25°C~+70°C

Storage temperature: -40°C~+80°C

Relative humidity: 0~95%(no condensation)

Dimension: 160*110*40cm



4. Applications

Remote OB Van/Truck Video Feeds;

Broadcast Studio Camera Feeds;

Long-haul Signal Transport;

TV station/video conference;

Lecture Hall Projector Connectivity;

Medical/Surgical Room Broadcast;

Small corporate campus video links







5. Ordering information

HDMl High-definition fiber optic transmission

HC3511-T

1-ch HDMI with embedded audio input, 4-core fibers, single-mode (multimode optional), Stand-alone, standard 20km, and SC/PC connector, uncompressed technology

HC3511-R

2-ch HDMI with embedded audio output, 4-core fibers, single-mode (multimode optional), Stand-alone, standard 20Km, SC/PC connector, uncompressed technology
