uncompressed HDMI fibre optic video tranceiver + stereo audio

Specifications

1 ch HDMI input +1ch stereo audio+ 1ch data RS232
3 year warranty,
* uncompressed transmission
* support HDCP

We are your best choice for Chinese parnter

Because of 10 year experienced, 3 year warranty, professional technical service and good price





Customer design and special requirements are always welcome!



1. Overview

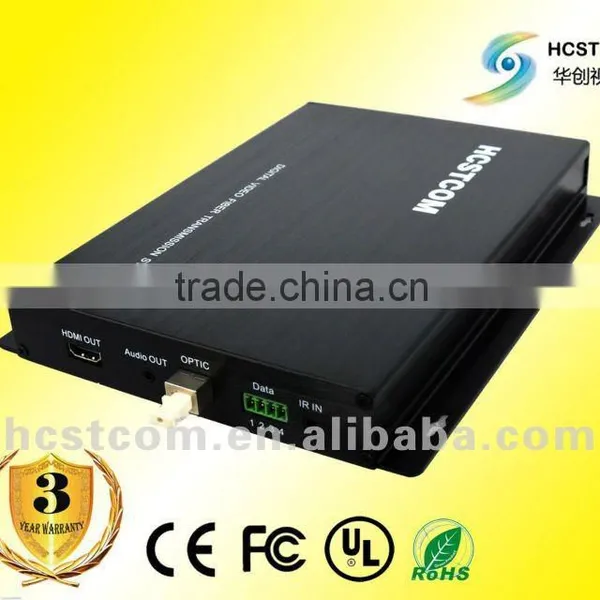

HC3511 HDMI could achieve HDMI digital audio/video signal long-distance transmission. No attenuation, bandwidth, good anti-jamming performance, security performance, small size, light weight and so on during transmission, with incomparable advantages in the long distance and special environment; adoption HDMl interface, one HDMl cable connects HDTV, which could be up to crisp and clear image, 192K sampling rate and 8-channel high-fidelity audio; save construction cost and complexity of the alignment, also ensure high quality. HC3511-T is optical transmitter; HC3511-R is optical receiver, conjunction with the two



2.  Features

«   Support highest resolution: 1920×1200@60Hz

«   Support HDTV highest resolution up to 1080P

«   Support HDMI1.3 interface, compatible with HDMI1.2a standards

«   Support 1-channel HDMI with 1-channel embedded audio

«   SC interface, hot swap

«   Single-mode, 1-core fiber


3.  Specifications



PC highest resolution	1920×1200@60Hz
HD-DVD resolution	720p/1080i/1080p
Signal bandwidth	1.65Gpbs
TDMS Signal pressure	1.2volts p-p
DDC signal pressure	5volts p-p (TTL)
Power and environmental indicator
Consumption	5W
Pressure	9-12VD
Operating temperature	-25°C~+70°C
Storage temperature	~+
Relative humidity	< 95% (no condensation)
Relative humidity	0~95%(no condensation)
Dimension	160*110*40cm
Audio
No	1
Input/ output level	5Vp-p,unequilibrium
Connector	Standard stereo headphone jack
Optics
Type	1000BASE_LX optical connection
Wavelength	1310nm
Launch power	-9.5~-3dBm, average power @850nm
Receiver sensitivity	-23dBm
Output Modulation amplitude	180μW
Input Modulation amplitude	≤15μW
Signal strength	-116 DB/Hz
Return loss	≤10 dB
Transmission bit rate	Hz~ Hz
Transmission distance	multimode, single-mode
RS232 indication
Input/output interface	9-hole standard RS232 socket
Signal rate	≥115200bps
Signal level	RS232 standard level







4. Applications

Remote OB Van/Truck Video Feeds;

Broadcast Studio Camera Feeds;

Long-haul Signal Transport;

TV station/video conference;

Lecture Hall Projector Connectivity;

Medical/Surgical Room Broadcast;

Small corporate campus video links



5 Successful cases (Partial)





Successful cases (partial)
No	END USER	project or application	referred products
1	Harbin TV	live broadcast and rebroadcast	Broadcast quality AV transceivers
2	Shenyang TV	vocal concert and evening party live broadcast	Broadcast quality AV transceivers
3	Chongqing TV	CQU Anniversary Great evening party live broadcast	Broadcast quality AV transceivers HD-SDI series transceiver
4	HNTV	outdoor great entertainment live broadcast	Broadcast quality AV transceivers HD-SDI series transceiver
5	SCTV	Channel 5 live broadcast	Broadcast quality AV transceivers
6	AHTV	outdoor live broadcast	HD-SDI series transceiver
7	Sinopec	HD video conference and meeting	HD-SDI series transceiver
8	Academy of Armored Force Engineering,	HD video conference and meeting	HD-SDI series transceiver
9	North institute of planning	HD video conference and meeting	HD-SDI series transceiver
10	Academy of Mechanical Sciences	Surveillance and security	surveillance video transceiver
11	Public Security Department of Hebei province	Surveillance and security	surveillance video transceiver
12	the Summer Palace,Beijing	Surveillance and security	surveillance video transceiver
Oversea successful cases ( partial)
No	countries	location and application	referred products
1	Russia	Irkutsk oblast broadcast	Broadcast quality AV transceivers
2	Russia	KMAO,Nyagan,broadcast	Broadcast quality AV transceivers
3	Germany	Saxony, video transmission for big screen	HD-SDI series transceiver
4	Mongolia	National radio station	Broadcast quality AV transceivers
5	Australia	Queensland, video transmission	VGA series transceiver
6	Pakistan	Islamabad PTV SD video transmission	SD-SDI series transceiver
7	Iran	Isfahan Surveillance	serveillance transceiver
