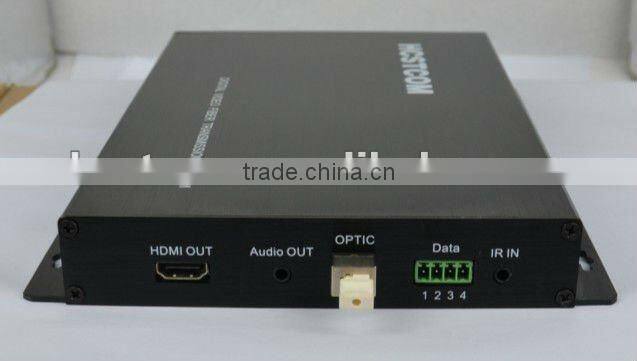

Help CenterHDMI Fiber Media Converter for Uncompressed Transmission
Related Products
-
HDMI Fiber Optic System Uncompressed Transmission VideoUS$ 300 - 600MOQ: 1 Pair -
HDMI Fiber Optic Equipment / Device for HD Video TransmissionUS$ 755 - 1,249MOQ: 1 Pair
-
HDMI 1 Channel Video+ Stereo Audio Fiber ConverterUS$ 300 - 600MOQ: 1 Pair
-
HDMI Transceptor de Fibra Optica / Optico 1 ch Video +audio +dataUS$ 755 - 1,249MOQ: 1 Pair
-
1080P HDMI Transmisor / Receptor Fibra Optica/ Optico Video+ Stereo Audio+dataUS$ 755 - 1,249MOQ: 1 Pair
Specifications
1 ch HDMI input +1ch stereo audio+ 1ch data RS2323 year warranty,
* uncompressed transmission
* support HDCP
We are your best choice for Chinese parnter
Because of 10 year experienced, 3 year warranty, professional technical service and good price
1. Overview

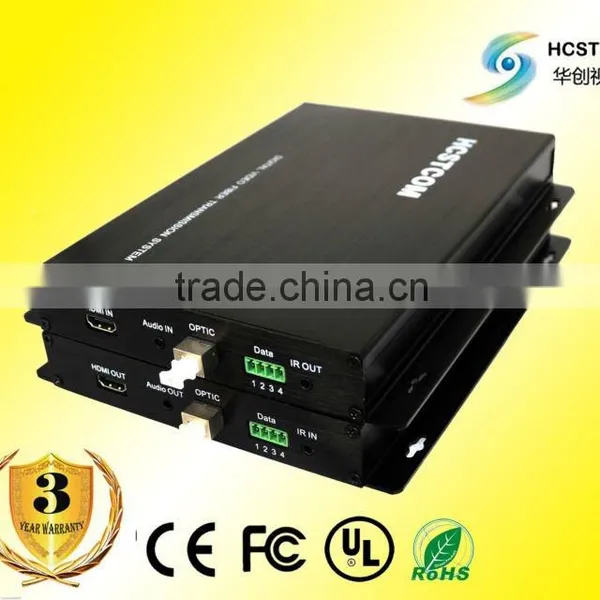

HC3511 HDMI could achieve HDMI digital audio/video signal long-distance transmission. No attenuation, bandwidth, good anti-jamming performance, security performance, small size, light weight and so on during transmission, with incomparable advantages in the long distance and special environment; adoption HDMl interface, one HDMl cable connects HDTV, which could be up to crisp and clear image, 192K sampling rate and 8-channel high-fidelity audio; save construction cost and complexity of the alignment, also ensure high quality. HC3511-T is optical transmitter; HC3511-R is optical receiver, conjunction with the two
2. Features
« Support highest resolution: 1920×1200@60Hz
« Support HDTV highest resolution up to 1080P
« Support HDMI1.3 interface, compatible with HDMI1.2a standards
« Support 1-channel HDMI with 1-channel embedded audio
« SC interface, hot swap
« Single-mode, 1-core fiber
3. Specifications
| PC highest resolution | 1920×1200@60Hz |
| HD-DVD resolution | 720p/1080i/1080p |
| Signal bandwidth | 1.65Gpbs |
| TDMS Signal pressure | 1.2volts p-p |
| DDC signal pressure | 5volts p-p (TTL) |
| Power and environmental indicator | |
| Consumption | 5W |
| Pressure | 9-12VD |
| Operating temperature | -25°C~+70°C |
| Storage temperature | ~+ |
| Relative humidity | < 95% (no condensation) |
| Relative humidity | 0~95%(no condensation) |
| Dimension | 160*110*40cm |
| Audio | |
| No | 1 |
| Input/ output level | 5Vp-p,unequilibrium |
| Connector | Standard stereo headphone jack |
| Optics | |
| Type | 1000BASE_LX optical connection |
| Wavelength | 1310nm |
| Launch power | -9.5~-3dBm, average power @850nm |
| Receiver sensitivity | -23dBm |
| Output Modulation amplitude | 180μW |
| Input Modulation amplitude | ≤15μW |
| Signal strength | -116 DB/Hz |
| Return loss | ≤10 dB |
| Transmission bit rate | Hz~ Hz |
| Transmission distance | multimode, single-mode |
| RS232 indication | |
| Input/output interface | 9-hole standard RS232 socket |
| Signal rate | ≥115200bps |
| Signal level | RS232 standard level |
4. Applications
Remote OB Van/Truck Video Feeds;
Broadcast Studio Camera Feeds;
Long-haul Signal Transport;
TV station/video conference;
Lecture Hall Projector Connectivity;
Medical/Surgical Room Broadcast;
Small corporate campus video links
5 Successful cases (Partial)
| Successful cases (partial) | |||
| No | END USER | project or application | referred products |
| 1 | Harbin TV | live broadcast and rebroadcast | Broadcast quality AV transceivers |
| 2 | Shenyang TV | vocal concert and evening party live broadcast | Broadcast quality AV transceivers |
| 3 | Chongqing TV | CQU Anniversary Great evening party live broadcast | Broadcast quality AV transceivers HD-SDI series transceiver |
| 4 | HNTV | outdoor great entertainment live broadcast | Broadcast quality AV transceivers HD-SDI series transceiver |
| 5 | SCTV | Channel 5 live broadcast | Broadcast quality AV transceivers |
| 6 | AHTV | outdoor live broadcast | HD-SDI series transceiver |
| 7 | Sinopec | HD video conference and meeting | HD-SDI series transceiver |
| 8 | Academy of Armored Force Engineering, | HD video conference and meeting | HD-SDI series transceiver |
| 9 | North institute of planning | HD video conference and meeting | HD-SDI series transceiver |
| 10 | Academy of Mechanical Sciences | Surveillance and security | surveillance video transceiver |
| 11 | Public Security Department of Hebei province | Surveillance and security | surveillance video transceiver |
| 12 | the Summer Palace,Beijing | Surveillance and security | surveillance video transceiver |
| Oversea successful cases ( partial) | |||
| No | countries | location and application | referred products |
| 1 | Russia | Irkutsk oblast broadcast | Broadcast quality AV transceivers |
| 2 | Russia | KMAO,Nyagan,broadcast | Broadcast quality AV transceivers |
| 3 | Germany | Saxony, video transmission for big screen | HD-SDI series transceiver |
| 4 | Mongolia | National radio station | Broadcast quality AV transceivers |
| 5 | Australia | Queensland, video transmission | VGA series transceivers |
| 6 | Pakistan | Islamabad PTV SD video transmission | SD-SDI series transceivers |
| 7 | Iran | Isfahan Surveillance | serveillance transceivers |
Our products in work scence
