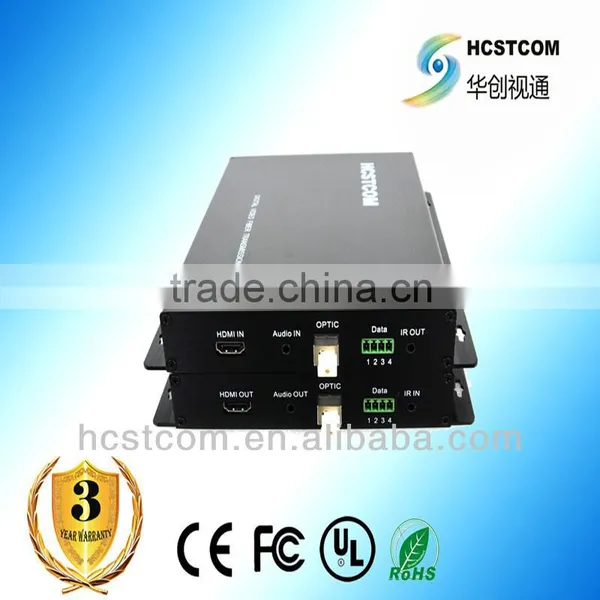

uncompressed transmitter and receiver HDMI optical converter

Specifications

1 ch HDMI input + 1ch data RS232
1ch stereo audio
3 year warranty,
* uncompressed transmission
* support HDCP

We are your best choice for Chinese parnter

Because of 10 year experienced, 3 year warranty, professional technical service and good price





Customer design and special requirements are always welcome!



1. Overview

HC3511  HDMI optical converter could achieve HDMI digital audio/video signal long-distance transmission. No attenuation, bandwidth, good anti-jamming performance, security performance, small size, light weight and so on during transmission, with incomparable advantages in the long distance and special environment; adoption HDMl interface, one HDMl cable connects HDTV, which could be up to crisp and clear image, 192K sampling rate and 8-channel high-fidelity audio; save construction cost and complexity of the alignment, also ensure high quality. HC3511-T is optical transmitter; HC3511-R is optical receiver, conjunction with the two



2.  Features

«   Support highest resolution: 1920×1200@60Hz

«   Support HDTV highest resolution up to 1080P

«   Support HDMI1.3 interface, compatible with HDMI1.2a standards

«   Support 1-channel HDMI with 1-channel embedded audio

«   SC interface, hot swap

«   Single-mode, 1-core fiber


3.  Specifications



PC highest resolution	1920×1200@60Hz
HD-DVD resolution	720p/1080i/1080p
Signal bandwidth	1.65Gpbs
TDMS Signal pressure	1.2volts p-p
DDC signal pressure	5volts p-p (TTL)
Power and environmental indicator
Consumption	5W
Pressure	9-12VD
Operating temperature	-25°C~+70°C
Storage temperature	~+
Relative humidity	< 95% (no condensation)
Relative humidity	0~95%(no condensation)
Dimension	160*110*40cm
Audio
No	1
Input/ output level	5Vp-p,unequilibrium
Connector	Standard stereo headphone jack
Optics
Type	1000BASE_LX optical connection
Wavelength	1310nm
Launch power	-9.5~-3dBm, average power @850nm
Receiver sensitivity	-23dBm
Output Modulation amplitude	180μW
Input Modulation amplitude	≤15μW
Signal strength	-116 DB/Hz
Return loss	≤10 dB
Transmission bit rate	Hz~ Hz
Transmission distance	multimode, single-mode
RS232 indication
Input/output interface	9-hole standard RS232 socket
Signal rate	≥115200bps
Signal level	RS232 standard level







4. Applications

Remote OB Van/Truck Video Feeds;

Broadcast Studio Camera Feeds;

Long-haul Signal Transport;

TV station/video conference;

Lecture Hall Projector Connectivity;

Medical/Surgical Room Broadcast;

Small corporate campus video links







5 Successful cases (Partial)



Successful cases (partial)
No	END USER	project or application	referred products
1	Harbin TV	live broadcast and rebroadcast	Broadcast quality AV transceivers
2	Shenyang TV	vocal concert and evening party live broadcast	Broadcast quality AV transceivers
3	Chongqing TV	CQU Anniversary Great evening party live broadcast	Broadcast quality AV transceivers
			HD-SDI series transceiver
4	HNTV	outdoor great entertainment live broadcast	Broadcast quality AV transceivers
			HD-SDI series transceiver
5	SCTV	Channel 5 live broadcast	Broadcast quality AV transceivers
6	AHTV	outdoor live broadcast	HD-SDI series transceiver
7	Sinopec	HD video conference and meeting	HD-SDI series transceiver
8	Academy of Armored Force Engineering,	HD video conference and meeting	HD-SDI series transceiver
Oversea successful cases ( partial)
No	countries	location and application	referred products
1	Russia	Irkutsk oblast broadcast	Broadcast quality AV transceivers
2	Russia	KMAO,Nyagan,broadcast	Broadcast quality AV transceivers
3	Germany	Saxony, video transmission for big screen	HD-SDI series transceiver
4	Mongolia	National radio station	Broadcast quality AV transceivers
5	Australia	Queensland, video transmission	VGA series transceiver
6	Pakistan	Islamabad PTV SD video transmission	SD-SDI series transceiver
7	Iran	Isfahan Surveillance	serveillance transceiver
