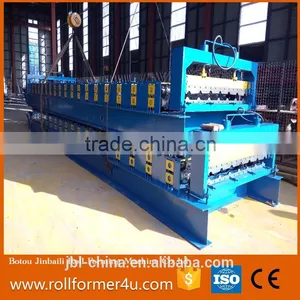

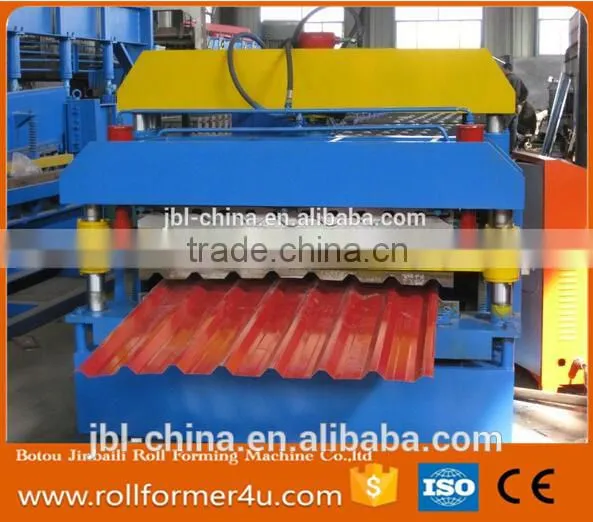

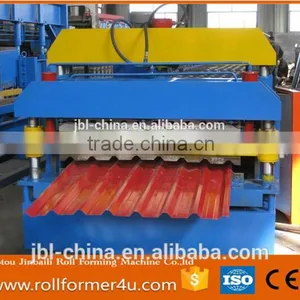

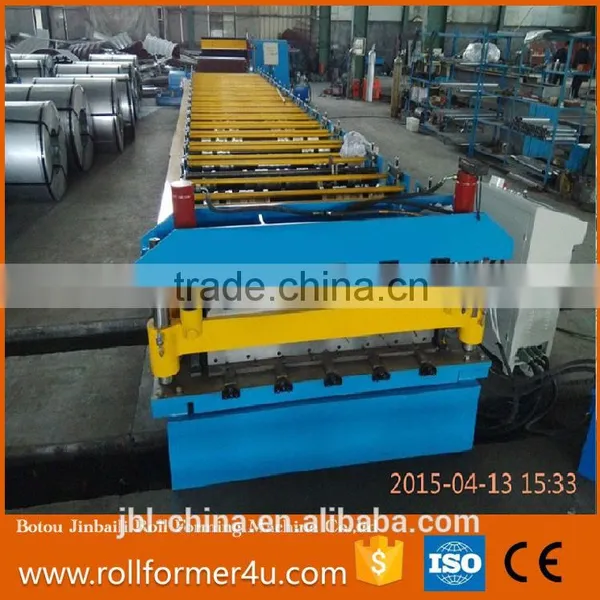

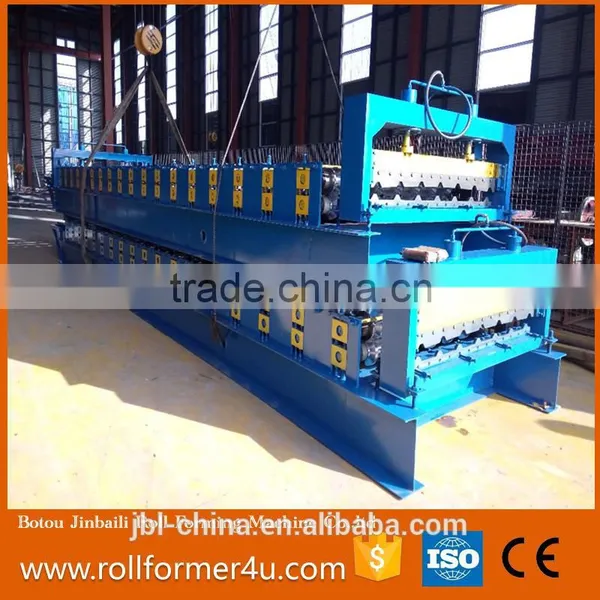

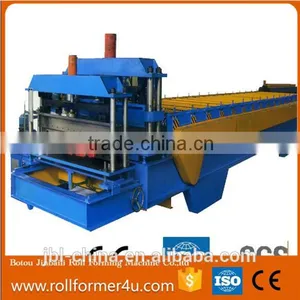

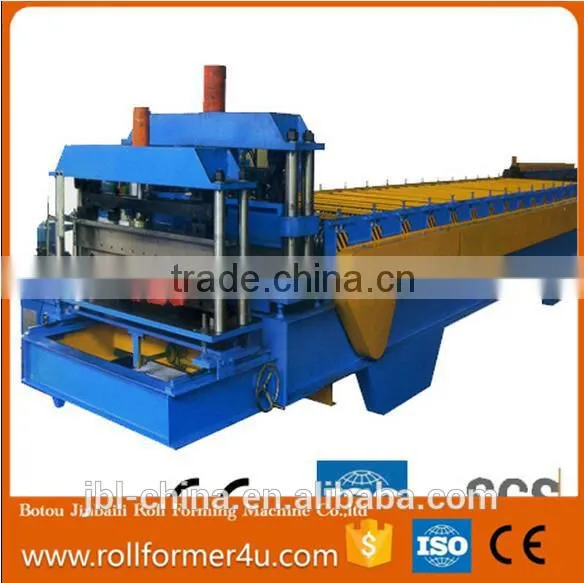

Help CenterC21roof Sheet Manufacturer Cold Roll Forming Machine for Russia for Sales
Related Products
-
C21 Roof Sheet Manufacturer Roll Forming Machine in Russia for SalesUS$ 13,000 - 15,000MOQ: 1 Set -
Joint Hiden Type Cold Roll Forming Machine for Sales CompanyUS$ 10,000 - 19,000MOQ: 1 Set
-
Corrugated Sheet Cold Forming Machine for RoofUS$ 10,000 - 15,000MOQ: 1 Set
-
860 Cold Roll Forming Machine for Roof FactoryUS$ 10,000 - 15,000MOQ: 1 Set
-
Hydraulic Decoiler Widely UseUS$ 6,600 - 10,000MOQ: 1 Set
Main parameters of Russia C21 roll forming machine | ||
1 |
Suitable to process |
Color steel plate, galvanized sheet, aluminum coils and etc. |
2 |
Width of the feeding material |
1250mm |
3 |
Sheet width |
1000mm |
3 |
Roller station |
15 rows |
4 |
Thickness of feeding material |
0.3-0.8mm |
5 |
Productivity |
8-12m/min |
6 |
Rollers' material |
45# steel Rolling chromium thickness:0.05 mm |
7 |
Diameter of shaft |
80mm |
8 |
Machine Wall thickness |
14mm steel plate |
9 |
Main forming machine body |
350mmH steel |
10 |
Voltage |
380V, 3-Phase,50Hz or any |
11 |
Control system |
Schneider PLC |
| 12 | Roller Standard |
45# Steel plating Chrome with heat treatment |
13 |
Main forming machine body |
300 mm H steel |
14 |
Motor power |
5.5 kw |

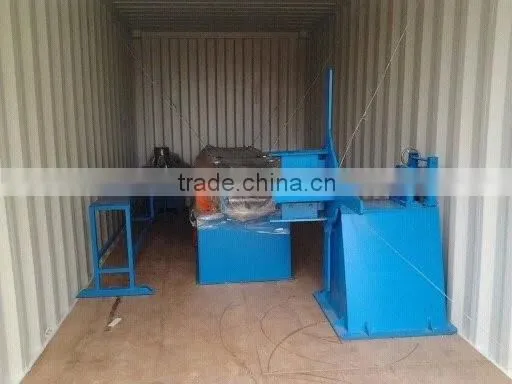

Container packaging of the line suitable for overseas shipping.
1 year warranty.
We can arrange our technicianto go to aboard,but all the relevant cost should in buyrs payed.
We provide technical support for whole life of our machine.
BOTOU JINBAILI ROLL FORMING MACHINE CO.,LTD is specially inROLL FORMING MACHINE 15 years.Main products are glazed tile forming machine,C Z U purlin machine,highway guardrauil machine,floor deck forming machine,car board forming machine.Widely used in construction,decoration and simply huts.High quality low price.
CUSTOMER VISIT
CETIFICATION
Q:How is this machine's service life?
A:In the normal maintenance,the service life at least 8 years.
Q:How to maintenance?
A:If using frequently,best coating lubricant on the chain and two ends of the shaft every month,
replace the hydraulic oil every 1-2 years.
Q:What can you do if the machine broken?
A:Our machine's warranty period is 1 year,if the broken parts can't repair,
we can free send the new parts replace the broken parts to you except the solenoid valve,the solenoid valve you must pay the express cost yourself.
if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address.
we have rich experience in transport.
Q:Mr.Alan,can you make the machine according to my design or proto type?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
Q:How many workers operate this machine to manufacture?
A:Only 3-6 workers.
Q:Can you supply the raw materials?
A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.
