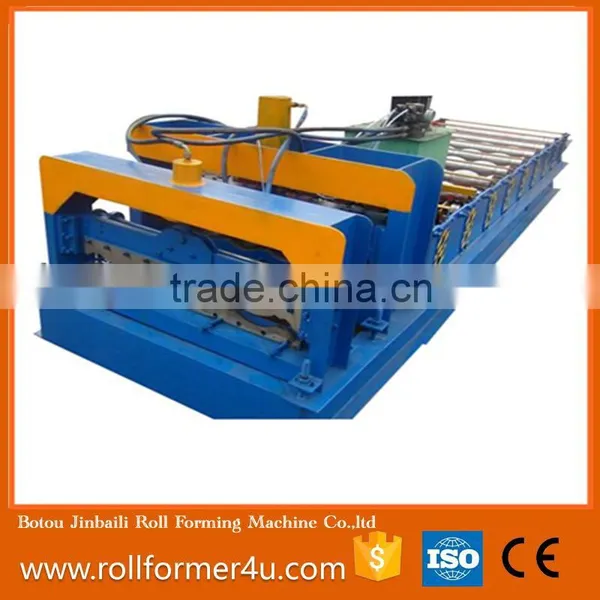

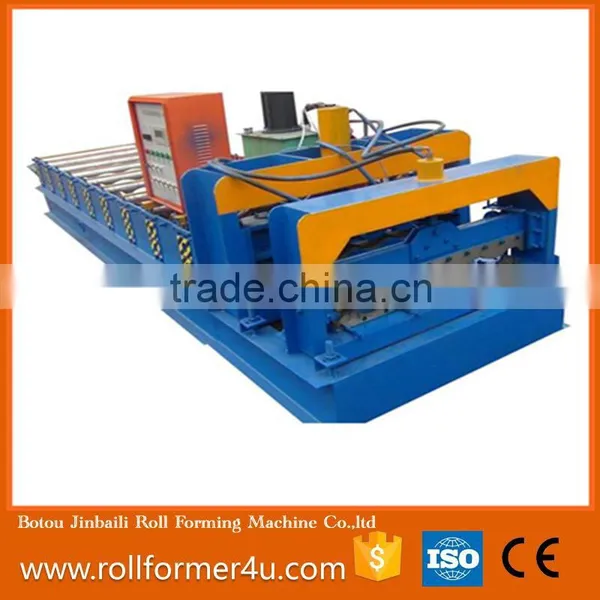

1.Component | ||
|
Decoiler , Main roll forming system, Pressing device, Cutting device, Hydraulic station, PLC control system and Support table etc. | ||
2.The general machine parameter | ||
Suitable material |
Color steel sheet or galvanized steel sheet |
|
Machine Sizes |
5500*1300*1200mm |
|
Main motor power |
4KW with Cycloidal reducer |
|
Hydraulic station power |
3KW |
|
Electric tension |
380V 3phase 50HZ or as the customer's requirement |
|
Thickness of material |
0.2mm-0.7mm |
|
Material expand width |
1000mm |
|
Material of roller |
High grade 45# forged steel plated with hard chrome plating |
|
Diameter of principal axis |
75mm |
|
Processing speed |
1-2.5m/min |
|
Material of cutting |
Cr12 mould steel with quenched treatment |
|
Roller station |
9 Rows |
|
Kind of drive |
Chain Wheel, Chain |
|
|
Automatic PLC ( The PLC can be designed according to your requests) |
Computer: Germany's "SIEMENS"or Japan's "MITSUBISHI". |
|
Switch:CHNT | ||
3.The Production Process | ||
Decoiler→flating→Feeding & punching→Forming→cut-to-length→Colletion (Finished goods) | ||
4.Usage and Feature | ||
|
The feature looks beautiful , elegant and noble. Those are widely used in building the factory, hotel and mobile house and so on. |
Container packaging of the line suitable for overseas shipping.
1 year warranty.
We can arrange our technicianto go to aboard,but all the relevant cost should in buyrs payed.
We provide technical support for whole life of our machine.
BOTOU JINBAILI ROLL FORMING MACHINE CO.,LTD is specially inROLL FORMING MACHINE 15 years.Main products are glazed tile forming machine,C Z U purlin machine,highway guardrauil machine,floor deck forming machine,car board forming machine.Widely used in construction,decoration and simply huts.High quality low price.
CUSTOMER VISIT
Q:How is this machine's service life?
A:In the normal maintenance,the service life at least 8 years.
Q:How to maintenance?
A:If using frequently,best coating lubricant on the chain and two ends of the shaft every month,
replace the hydraulic oil every 1-2 years.
Q:What can you do if the machine broken?
A:Our machine's warranty period is 1 year,if the broken parts can't repair,
we can free send the new parts replace the broken parts to you except the solenoid valve,the solenoid valve you must pay the express cost yourself.
if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address.
we have rich experience in transport.
Q:Mr.Alan,can you make the machine according to my design or proto type?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
Q:How many workers operate this machine to manufacture?
A:Only 4 workers.
Q:Can you supply the raw materials?
A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.
