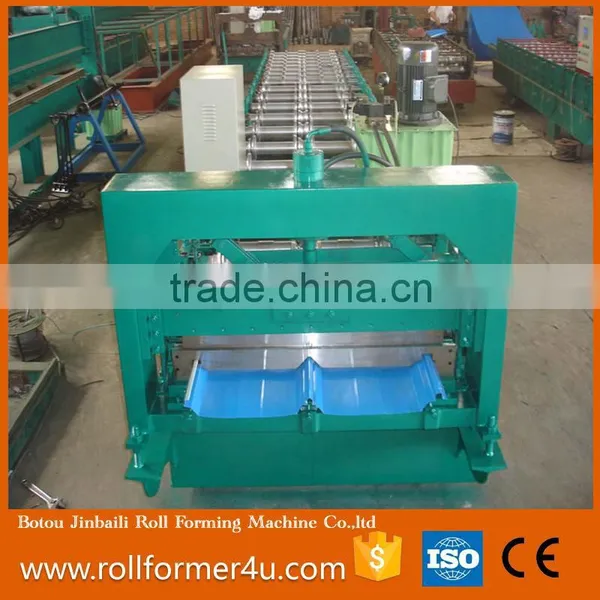

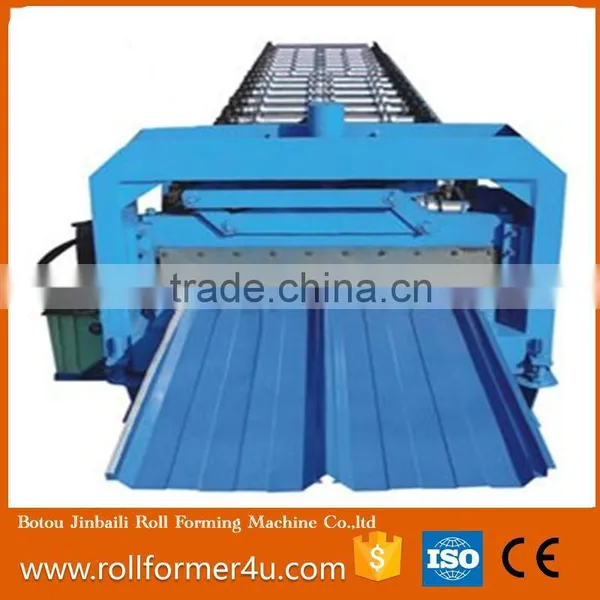

Joint Hidden Roll Forming Machine(820)
The colored steel tiles produced by this machine look beautiful ,elegant and noble.They are widely used as the roof of garden,factory,hotel,exhibition center and villa,etc.
Product Description
Technical pararmeter of product line:
1. Suitable process material: Colored steel sheet, aluminium steel sheet, and galvanized steel
2. Applied slab thickness: 0.3-1.0mm
3 Charge in width: 1000mm
4. Line speed: 15m--18m/min
5. Rolling rows: 20rows
6. Rolling diameter: 70mm
7. Dimensions:15M*1.9m*1.4m
8. Weight: 5t
9. Power: 11kw+4kw
10.Hydraulic pressure:10-12Mpa
11.Voltage:380volt
12.PLC:Computer adopt PLC, Mitsubishi FX-IS series

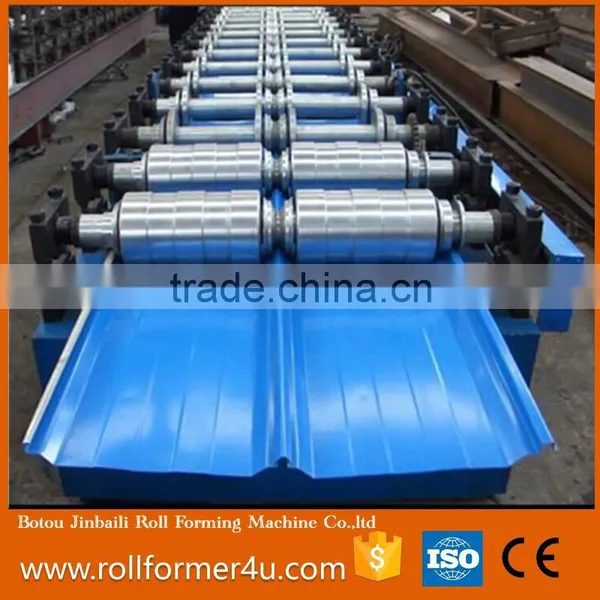

13.Roller material: high grade No.45 forged steel, plated hard chrome on
the surface of roller with thickness 0.05 millimeter
14.ROTARY ENCODER:OMPON
15.Materialof cutter:Cr12
We can Desgin and Manufacture the Machine accroding to clients' request! Please send us the enquiry with Profile Drawing
Container packaging of the line suitable for overseas shipping.
1 year warranty.
We can arrange our technicianto go to aboard,but all the relevant cost should in buyrs payed.
We provide technical support for whole life of our machine.
BOTOU JINBAILI ROLL FORMING MACHINE CO.,LTD is specially inROLL FORMING MACHINE 15 years.Main products are glazed tile forming machine,C Z U purlin machine,highway guardrauil machine,floor deck forming machine,car board forming machine.Widely used in construction,decoration and simply huts.High quality low price.
CETIFICATION
CUSTOMER VISIT
Q:How is this machine's service life?
A:In the normal maintenance,the service life at least 8 years.
Q:How to maintenance?
A:If using frequently,best coating lubricant on the chain and two ends of the shaft every month,
replace the hydraulic oil every 1-2 years.
Q:What can you do if the machine broken?
A:Our machine's warranty period is 1 year,if the broken parts can't repair,
we can free send the new parts replace the broken parts to you except the solenoid valve,the solenoid valve you must pay the express cost yourself.
if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address.
we have rich experience in transport.
Q:Mr.Alan,can you make the machine according to my design or proto type?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
Q:How many workers operate this machine to manufacture?
A:Only 3-6 workers.
Q:Can you supply the raw materials?
A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.
