Stone Coated Tile Production Line ,Vermiculite Steel Tile Production Line

Stone Coated Tile Production Line ,Vermiculite Steel Tile Production Line thumbnail-1
Stone Coated Tile Production Line ,Vermiculite Steel Tile Production Line photo-1
US$ 68,000 - 70,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Tile Forming Machine
Tile Type:
Colored Glaze Steel
Contact Supplier Request Quote Chat Now
Botou Jinbaili Roll Forming Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Tile Forming Machine
Tile Type Colored Glaze Steel
Use Roof
Production Capacity 6-7m/min
Place of Origin Hebei, China
Brand Name Kinberly
Model Number K-S001
Power(W) 90 Kw
Voltage 380V
Dimension(L*W*H) 60* 1.2m *1.5m
Weight 7000 kg
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1 bottom gule spraying section
2 stone coated section
3 first time drying
4 Auto face gule spraying
5.second time drying

Stone coated production line



Stone coated sheet is formed by 0.4mm Al-Zn plating panel and color stones. It is modern,environmental and nice appearance.



We developed this stone coated production line based on long time running and improvement. It is high-performance,stable, energy-efficient and easy operation.



It is including five main parts:

1 Auto bottom gule spraying section

2Auto stone coated section

3 The first time drying section

4 Auto face gule spraying section

5 The second time drying section



Introduction:

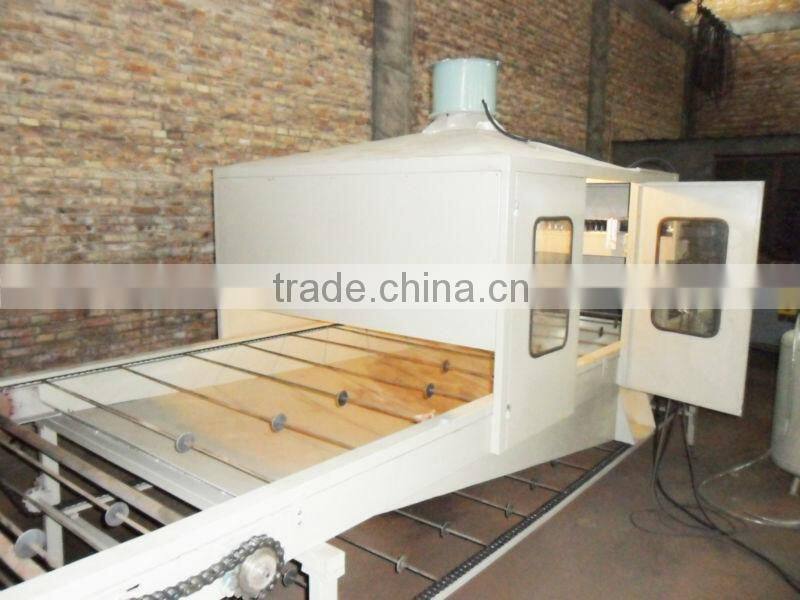

1. Auto bottom gule spraying section

Appearance size:4000*1000*2000          Unit:mm



Driving section:3KW Excitation motor or frequency speed regulation (AS per customers’requirements )



Automatic pressure spray tank:1set  capability:200kg   Range:0.6~1Mpa

Automatic glue machine motor: Servo motor, Power:750w, plc

Automatic spray gun:4 set(spare parts)

Dust collecting fan: 1set    power:200w



Damp proof lamp:1pc      power:100w



Conveying device:Chain reciprocating



Air compressor:1set   power:7.5kw



Dust control of axial flow fan:1set  power: 200w



Agitator: 1set   power:1.5kw

Stone coated tile production line ,Vermiculite steel tile production line

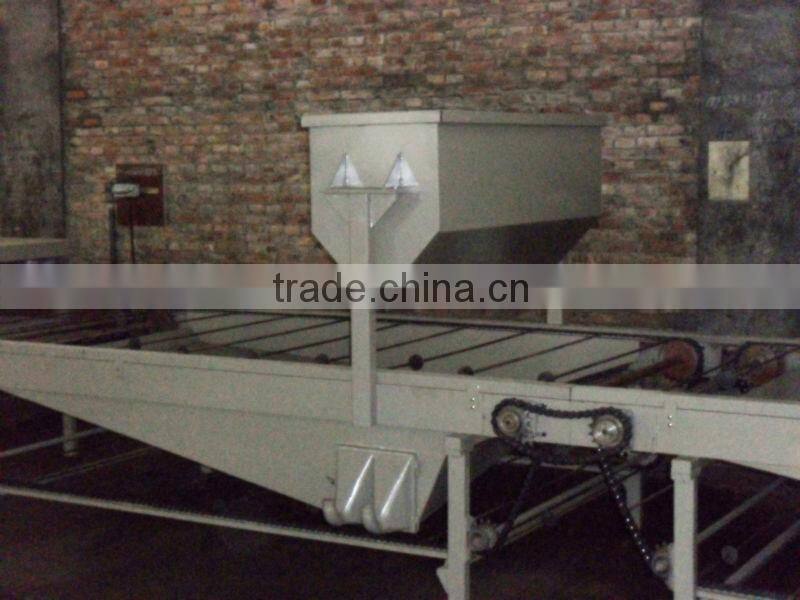

2 .Auto stone coated section



Appearance size:3500×1000×1500         Unit:mm

Framework: Steel welding

Conveying device:Chain reciprocating

Automatic sand hopper: 1set  capability:200kg

Bucket lift:1 set

Manual sandblast gun:4sets

Stone coated tile production line ,Vermiculite steel tile production line

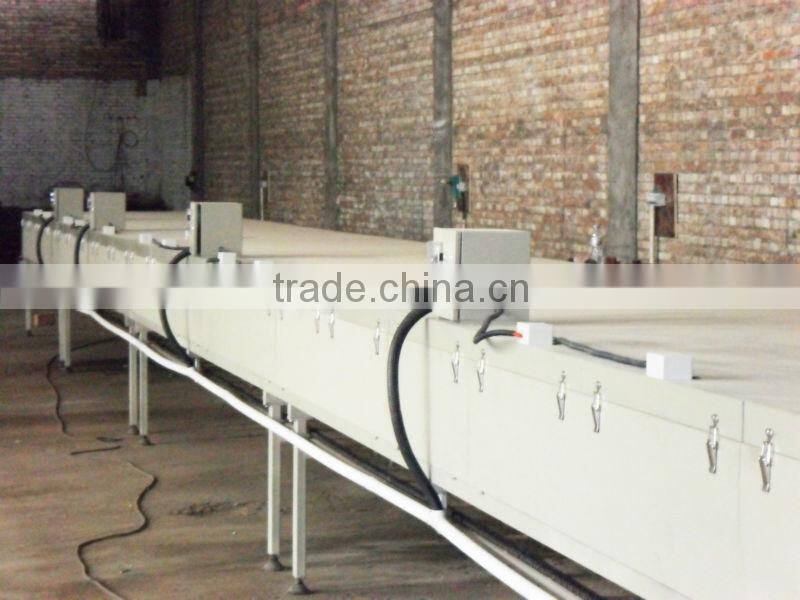

3.The first time drying section

Appearance size:25000×1000×1200           Unit:mm



Framework: Steel welding



Frame type thermal insulation wall: 1.2mm cold steel with Rock wool



Automatic temperature controller:4set  Range:0°~160°



Infrared heating tube: 30pcs   Power:30kw



Conveying device:Chain reciprocating



Air cooling device:1 set  Power:200w

the first time drying section



Stone coated tile production line ,Vermiculite steel tile production line

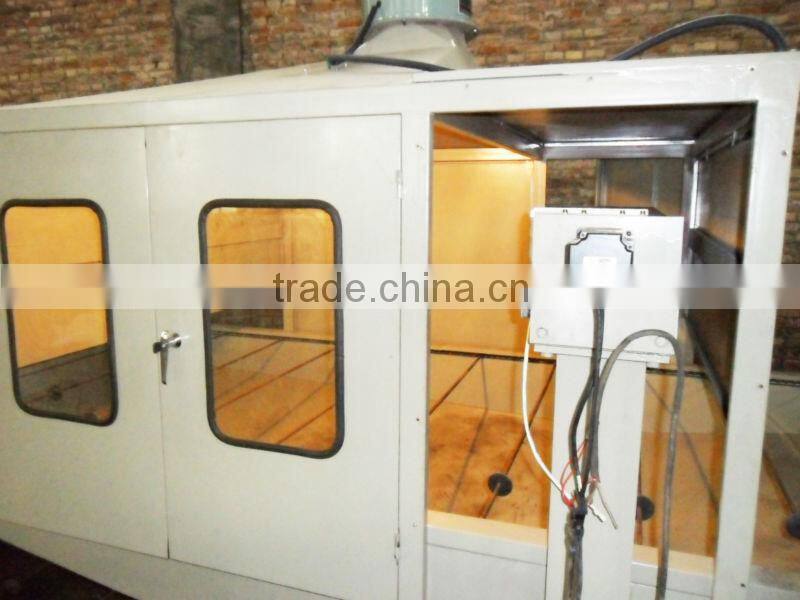

4.Auto face gule spraying section

Appearance size:3000×1000×2000           Unit:mm

Framework: Steel welding

Damp proof lamp:1pc        Power:100w

Automatic pressure spray tank:1set  capability:200kg   Range:0.6~1Mpa

Conveying device:Chain reciprocating

Automatic spray gun:4 set(spare parts)

Manual patch glue gun:4 set

Dust control of axial flow fan:1set  power: 200w

Automatic glue machine motor: Servo motor, Power:750w

 Stone coated tile production line ,Vermiculite steel tile production line

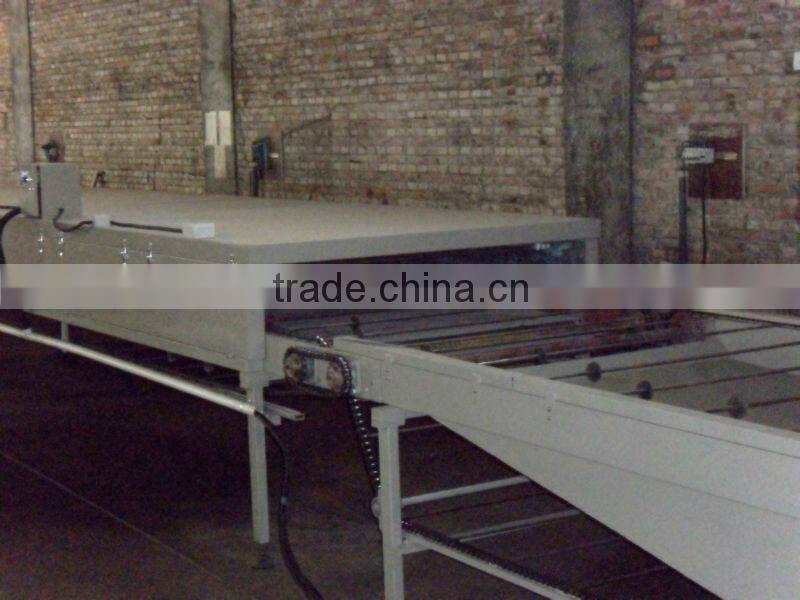

5.The second time drying section



Appearance size:30000×1000×1200           Unit:mm

Framework: Steel welding

Frame type thermal insulation wall: 1.2mm cold steel with Rock wool

Automatic temperature controller:4set  Range:0°~160°

Infrared heating tube: 30pcs   Power:30kw

Conveying device:Chain reciprocating

Air cooling device:1 set  Power:200w

 Stone coated tile production line ,Vermiculite steel tile production line

This line is 65.5 m long. So we need the warehouse length is about 75mm and one of 2*3 air compressor room.



About worker:

     Panel loading      one

     Bottom spraying   one

     Stone coating      one

     Fill stone         one

     Face gule         one

     Bottom gule mixing  one

     Finish goods receiving one
