New Arrival Stone Coated Metal Roofing Tile Line with ISO CE certification, View high quality, JBL Product Details from Botou Jinbaili Roll Forming Machine Co., Ltd. on
stone coated steel shingle roofing roll forming machine stone coated metal tile making machine
Stone coated sheet is formed by 0.4mm Al-Zn plating panel and color stones. It is modern,environmental and nice appearance.
We developed this stone coated production line based on long time running and improvement. It is high-performance,stable, energy-efficient and easy operation.
It is including five main parts:
1 Auto bottom gule spraying section
2Auto stone coated section
3 The first time drying section
4 Auto face gule spraying section
5 The second time drying section
Introduction:

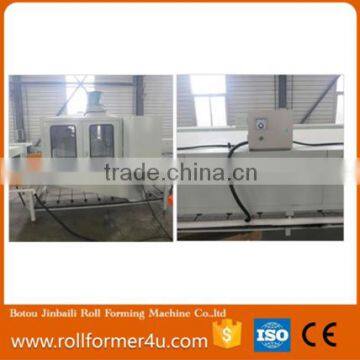

1. Auto bottom gule spraying section
Appearance size:4000*1000*2000 Unit:mm
Driving section:3KW Excitation motor or frequency speed regulation (AS per customers’requirements )
Automatic pressure spray tank:1set capability:200kg Range:0.6~1Mpa
Automatic glue machine motor: Servo motor, Power:750w, plc
Automatic spray gun:4 set(spare parts)
Dust collecting fan: 1set power:200w
Damp proof lamp:1pc power:100w
Conveying device:Chain reciprocating
Air compressor:1set power:7.5kw
Dust control of axial flow fan:1set power: 200w
Agitator: 1set power:1.5kw
2 .Auto stone coated section
Appearance size:3500×1000×1500 Unit:mm
Framework: Steel welding
Conveying device:Chain reciprocating
Automatic sand hopper: 1set capability:200kg
Bucket lift:1 set
Manual sandblast gun:4sets
3.The first time drying section
Appearance size:25000×1000×1200 Unit:mm
Framework: Steel welding
Frame type thermal insulation wall: 1.2mm cold steel with Rock wool
Automatic temperature controller:4set Range:0°~160°
Infrared heating tube: 30pcs Power:30kw
Conveying device:Chain reciprocating
Air cooling device:1 set Power:200w

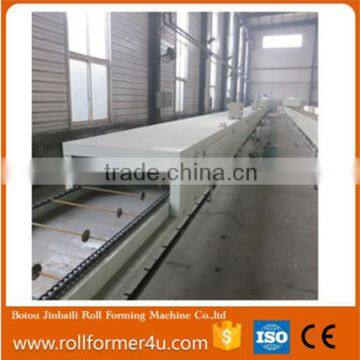

the first time drying section
4.Auto face gule spraying section
Appearance size:3000×1000×2000 Unit:mm
Framework: Steel welding
Damp proof lamp:1pc Power:100w
Automatic pressure spray tank:1set capability:200kg Range:0.6~1Mpa
Conveying device:Chain reciprocating
Automatic spray gun:4 set(spare parts)
Manual patch glue gun:4 set
Dust control of axial flow fan:1set power: 200w
Automatic glue machine motor: Servo motor, Power:750w
5.The second time drying section
Appearance size:30000×1000×1200 Unit:mm
Framework: Steel welding
Frame type thermal insulation wall: 1.2mm cold steel with Rock wool
Automatic temperature controller:4set Range:0°~160°
Infrared heating tube: 30pcs Power:30kw
Conveying device:Chain reciprocating
Air cooling device:1 set Power:200w
This line is 65.5 m long. So we need the warehouse length is about 75mm and one of 2*3 air compressor room.
About worker:
Panel loading one
Bottom spraying one
Stone coating one
Fill stone one
Face gule one
Bottom gule mixing one
Finish goods receiving one
