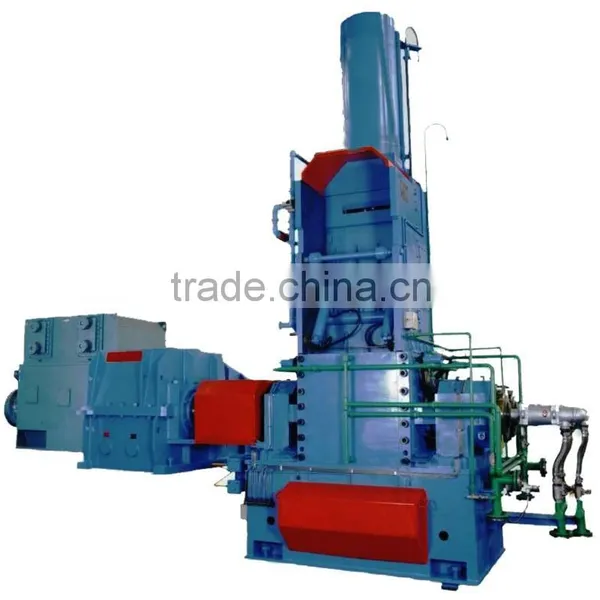

Banbury Rubber Mixer

Name: Banbury Rubber Mixer
Brand: PLASTSEA
SKU: 134087161
Availability: InStock

US$ 100,000 - 580,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Rubber Mixer

Place of Origin:

Shandong, China

Qingdao Plastsea International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Seaport

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Rubber Mixer

Place of Origin Shandong, China

Brand Name PLASTSEA

Model Number 160L

Voltage 380V/50HZ

Certification CE

Warranty ONE YEAR

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Banbury Rubber Mixer
1.Drop-type discharge
2.Pneumatic and Hydraulic ram
3.Intermeshing rotor & tangential rotor
4.For tyre

Banbury Rubber Mixer

This mixer is used for tyre industry.

We can supply the mixer as below:

GK series (Technology W&P):

N type: GK-110N,GK-225N,GK-270N,GK-300N,GK-400N,GK-430N,GK-650N ,etc.

E type: GK-5E,GK-20E,GK-45E,GK-90E,GK-135E,GK-190E,GK-250E,GK-320E,GK-420E,GK-580E,etc.

F series (Technology Farrel)

F270,F370,F650, etc.

XM-160,XM-20,XM-370,XM-650 ,etc.

The rubber mixers which we supply are the top level mixers in China industry, and also are used in many famous tyre factories around the world.

GK-E type (Most suitable for Master batch) Plastsea

Model Parameter	GK-45E	GK-90E	GK-E190	GK-250E	GK-320E	GK-420E	GK-580E
Total Volume of Mixer (L)	47	87	195	250	320	450	580
Fill factor	0.65	0.65	0.65	0.65	0.65	0.7	0.65
Rotor speed (r/min) plastsea	10-60	10-60	10-60	10-60	10-60	10-60	10-45 10-60
Ram Pressure (Mpa)	0.5	0.55	0.54 0.58(Hyd.)	0.51	0.62	0.55	0.55
Max production capacity (t/h) Plastea	0.72	1.36	3.04	3.9	5	7.5	10.4
Compressed air pressure (Mpa)	0.8	0.8	0.8	0.8	0.8
Air consumption (m³/h)	92	140	432	423	604	plastsea
Cooling water pressure (Mpa)	0.2-0.4
Cooling water consumption of main machine (m³/h)	20	25	40/50	50	60	60	70
Steam pressure (Mpa)	0.3						0.3
Power of main motor (KW)	280	520	1100	1320	1680	2x1250	2x1250 2x1250
Overall size(without motor) m	3.9x2.4x3.7	4.6x2.3x4	5.9x3.4x5.6	6.1x4x6.1	6.6x4.6x6.5	6.7x4.6x6.3	7.5x4.8x7.5
Weight (without motor and gearbox) T	8.5	11	26.5	33	38	50	60
