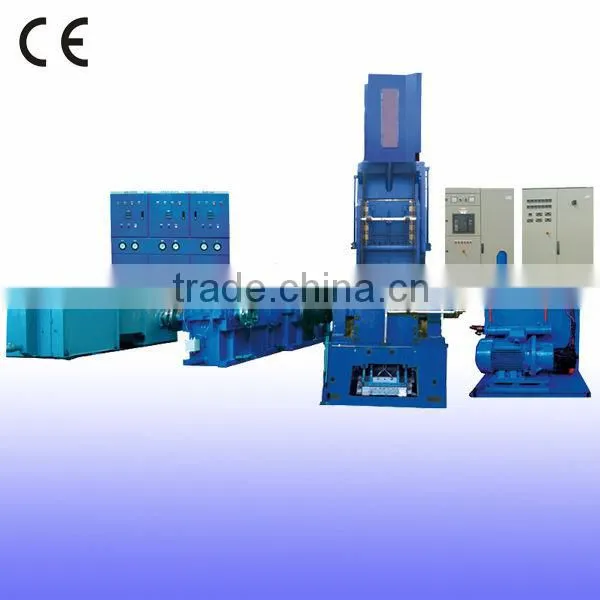

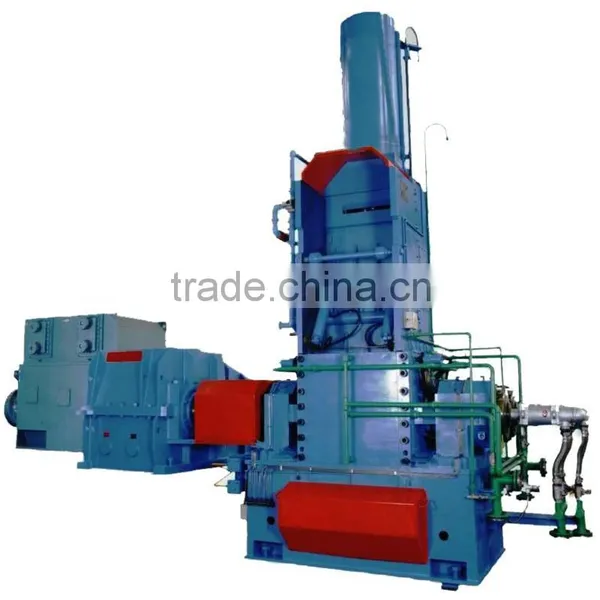

75L rubber kneader /rubber internal mixer for making tire
- 280 Set / Sets per Month
- qingdao
- T/T
Product Details
Condition: | New | Type: | Rubber Mixer | Place of Origin: | Shandong, China |
Brand Name: | PLASTSEA | Voltage: | 220v 230v 380v 440v | Certification: | ISO9001 CE |
Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Professional manufacturer of rubber internal mixer
——PLASTSEA MACHINERY CO., LTD
Rubber Banbury Internal Mixer Banbury Internal Mixer , Rubber Mixing Mill , Rubber Kneader
Specification
1.The rolls of this machine is elliptical type rotor. The working surfaces of the rotor is made of welded wearable hard alloy. The working surface of the mixing chamber and the pressing ram device are experienced the treatment of hard chrome plating,which is corrosion-proof and has long service life.
4.The transmission device adopts NGW hard tooth flank planet reducer, which has compact structure, low noise and high efficiency.
5.The pressing ram device can add pressure to the materials through air cylinder or oil cylinder, to make the materials mix evently, upgrading the production efficiently and matching with the electrical control.The pressing ram device can fulfill automatic pressurization, decompression and floating.
6.The electric control system can be handled manually and automatically and the operation is reliable and the change is convenient. We adopt ordinary apparatus and PLC programming control. The client can choose according to his own requirements.
7.The machine adopts rear feeding and hydraulic tilting device for discharging. So the operation is steady and reliable. It is very convenient to clean the materials and change the colors.
8.Used in the plastic ting ,mixing and final refining of rubber and plastic material.
This mixer is used for final mixing and master batch mixing of tyre industry.
We can supply the mixer as below:
GK series (Technology W&P):
N type: GK-110N,GK-225N,GK-270N,GK-300N,GK-400N,GK-430N,GK-650N ,etc.
E type: GK-5E,GK-20E,GK-45E,GK-90E,GK-135E,GK-190E,GK-250E,GK-320E,GK-420E,GK-580E,etc.
F series (Technology Farrel)
F270L,F370L,F650L, etc.
XM-160,XM-20,XM-370,XM-650 ,etc.
The rubber mixers which we supply are the top level mixers in China industry, and also are used in many famous tyre factories around the world.
GK-E type (Most suitable for Master batch) Plastsea
Model Parameter | GK-45E | GK-90E | GK-E190 | GK-250E | GK-320E | GK-420E | GK-580E |
Total Volume of Mixer (L) | 47 | 87 | 195 | 250 | 320 | 450 | 580 |
Fill factor | 0.65 | 0.65 | 0.65 | 0.65 | 0.65 | 0.7 | 0.65 |
Rotor speed (r/min) plastsea | 10-60 | 10-60 | 10-60 | 10-60 | 10-60 | 10-60 | 10-45 10-60 |
Ram Pressure (Mpa) | 0.5 | 0.55 | 0.54 0.58(Hyd.) | 0.51 | 0.62 | 0.55 | 0.55 |
Max production capacity (t/h) Plastea | 0.72 | 1.36 | 3.04 | 3.9 | 5 | 7.5 | 10.4 |
Compressed air pressure (Mpa) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
|
|
Air consumption (m3/h) | 92 | 140 | 432 | 423 | 604 | plastsea |
|
Cooling water pressure (Mpa) | 0.2-0.4 | ||||||
Cooling water consumption of main machine (m3/h) | 20 | 25 | 40/50 | 50 | 60 | 60 | 70 |
Steam pressure (Mpa) | 0.3 |
| 0.3 | ||||
Power of main motor (KW) | 280 | 520 | 1100 | 1320 | 1680 | 2x1250 | 2x1250 2x1250 |
Overall size(without motor) m | 3.9x2.4x3.7 | 4.6x2.3x4 | 5.9x3.4x5.6 | 6.1x4x6.1 | 6.6x4.6x6.5 | 6.7x4.6x6.3 | 7.5x4.8x7.5 |
Weight (without motor and gearbox) T | 8.5 | 11 | 26.5 | 33 | 38 | 50 | 60 |
|
|
|
|
|
|
|
|
Above parameter is only part. If you need more parameters and size of our rubber mixer, please contact us!
Guarantee and after-sale service
One year guarantee for whole machine except tubes.
24 hours technical support by emial
Service station in your country,quick response.
As a professional machinery supplier,Plastsea Corp. was established by an experienced and professional team.It's located in Qingdao city which is the rubber&plastic industry center of China with the top level institute and university .
After several years developing,with high quality, reasonable price, and excellent service, we have built up long and stable business relationship with customers covering more than 30 countries and regions over the world.
At present,Pleatsea focuses on Rubber and Tyre industries .Through joint-venture and cooperation method,Plastsea has developed eight fabrication bases in China.The products cover internal mixer,twin-screw sheeter,batch-off cooling machine,mixing mill,AGR/OTR tire building machine,cord fabric cutter,tire curing press,inner tube machines,tire molds,tire building drum,tire bladder,tire bladder mold,etc.
Welcome to visit our company and we can show you the machine in working condition:
If our products win your interest, please send us inquires and we will provide detailed information to you. We can also make machines according to your request.
