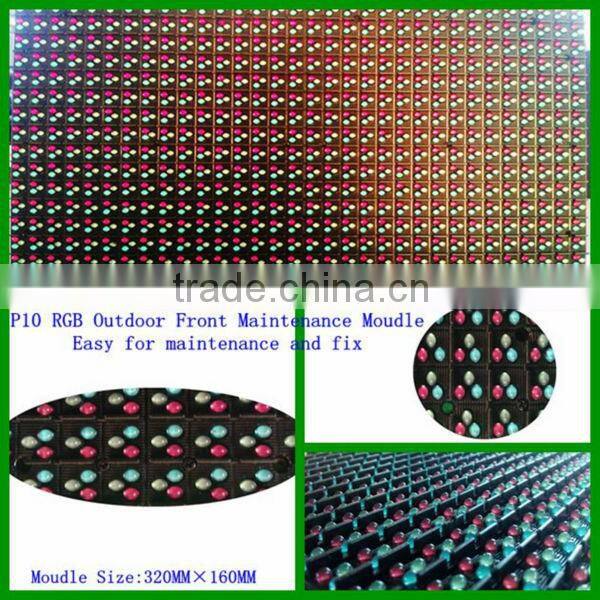

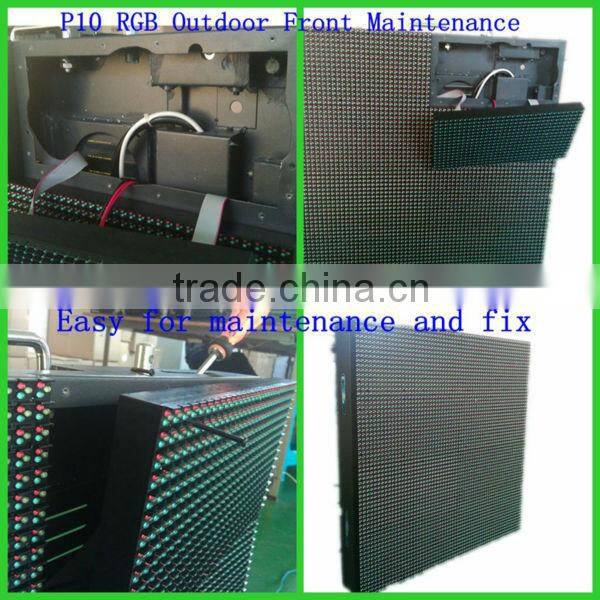

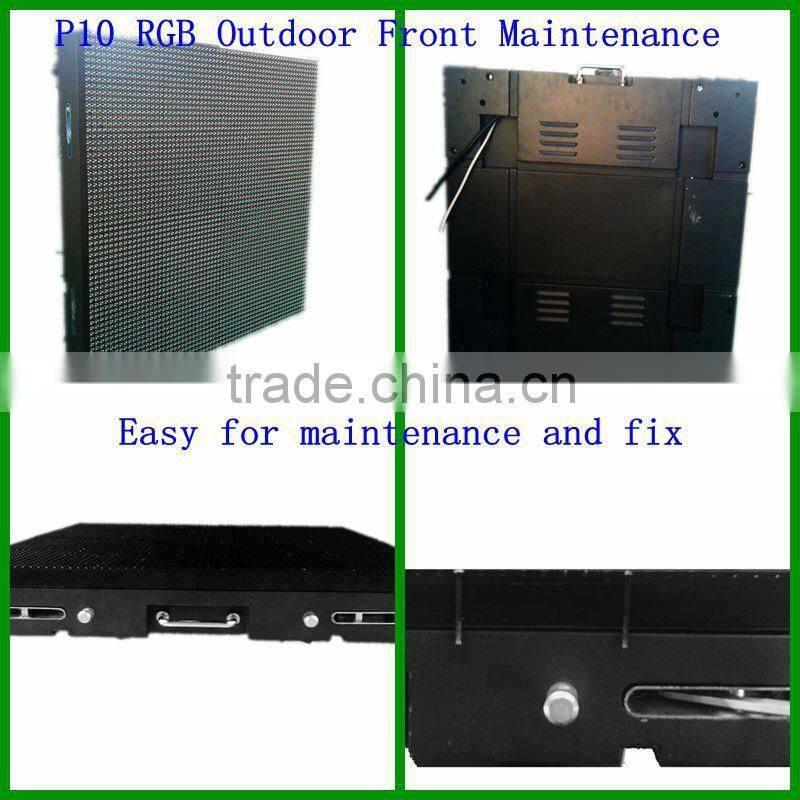

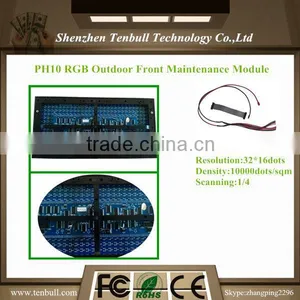

P10 1R1G1B Front Maintenance 1/4 Scam Outdoor Module

P10 1R1G1B Front Maintenance 1/4 Scam Outdoor Module photo-1
US$ 30 - 31 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
tenbull
Model Number:
P10
Usage:
Outdoor
Payment & Shipping
Payment Methods:
Port of Shipment:
sz
Delivery Detail:
Delivery time depends on order quantity.
Brand Name tenbull
Model Number P10
Usage Outdoor
Display Function Video
Pixels 10mm
Screen Dimension 320*160MM
Tube Chip Color Other, RGB

P10 1R1G1B Front Maintenance 1/4 Scam Outdoor Module Parameter



Item

Parameter

Pixel Pitch

10mm

Best Viewing Distance

15-30m

Density

10000 dots/sqm

Brightness

7500nite

Module Resolution

32dost*16dots

LED Standard

DIP346 1R1G1B

Driving method

Constant driving 1/4 Scan

Viewing Angle(H/V)

H: 140° V: 120°

Module Size

320mm*160mm

Module Power

40W

Module Weight

350g

Cabinet Size

960mm*960mm

Cabinet Resolution

96 dot*96 dot

Cabinet Weight

18.6kg

Protection Degree(front/rear)

IP65/IP43

Refresh Rate

1000-4000Hz

MTTF

>5000 hours

Malfunction dot rate

<0.0001

Life Span

>100000 hours

Operating Voltage

110V-240V AC±10%50-60Hz

System Working Environment Temperature

-30°C---+50°C / 10%-90% RH

System Working Environment Humidity

-40°C---+60°C / 10%-90% RH

Input Signal

RF, S-VIDEO, RGBHV, YUN, YC & COMPOSITION, etc

Communication Link

CAT5 Cable(Length1430m);Optical (Length20Km)Optional

Remarks:The above-mentioned data only for reference,they can be adjusted according to customers needs.



P10 1R1G1B Front Maintenance 1/4 Scam Outdoor ModuleP10 1R1G1B Front Maintenance 1/4 Scam Outdoor Module





P10 1R1G1B Front Maintenance 1/4 Scam Outdoor ModuleP10 1R1G1B Front Maintenance 1/4 Scam Outdoor Module





P10 1R1G1B Front Maintenance 1/4 Scam Outdoor ModuleP10 1R1G1B Front Maintenance 1/4 Scam Outdoor Module



Professional LED screens& LED Displays Module Manufacturer



-----SMD: p3/p4/p5/p6/p7.62/p10 indoor full color led module and led display.



-----Single Color:P10 red outdoor/P10 White outdoor/P10 Blue outdoor/P10 Green outdoor/P10 Yellow outdoor&SIMI-outdoor led module and led screen



-----Double Color:P10 double color/p16 double color/p20 double color SIMI-outdoor&outdoor led module and led screen



-----all of our led module has highly resolution, good image effect,and easy to install and convenient to carry;



----- Resonable price,good uniformity, stable capability and high brightness;



-----Aluminum alloy material both for fixed installation and hanging rental;



-----Own Unique Design LED Screen









================ >>About Us<<================



P10 1R1G1B Front Maintenance 1/4 Scam Outdoor ModuleP10 1R1G1B Front Maintenance 1/4 Scam Outdoor Module





P10 1R1G1B Front Maintenance 1/4 Scam Outdoor ModuleP10 1R1G1B Front Maintenance 1/4 Scam Outdoor Module





P10 1R1G1B Front Maintenance 1/4 Scam Outdoor ModuleP10 1R1G1B Front Maintenance 1/4 Scam Outdoor Module





P10 1R1G1B Front Maintenance 1/4 Scam Outdoor ModuleP10 1R1G1B Front Maintenance 1/4 Scam Outdoor Module





P10 1R1G1B Front Maintenance 1/4 Scam Outdoor Module
