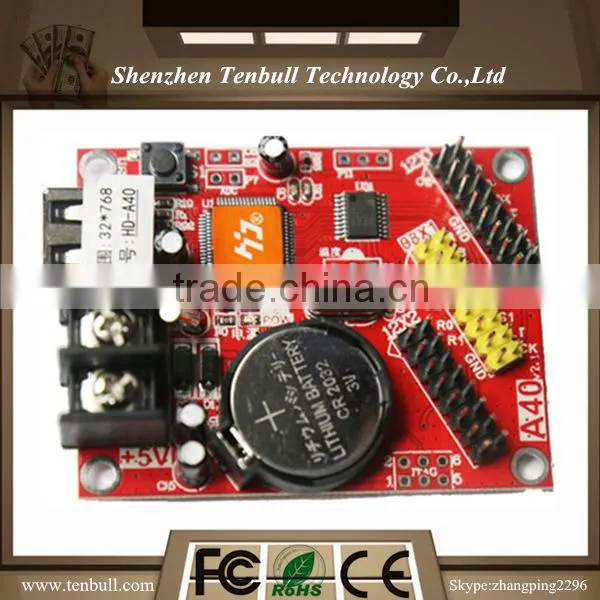

U-disk LED controller card HD-A40

Specifications

U-disk LED controller card
Single color: 768*32 1024*16
Dual color:384*32 768*16"

U-disk LED controller card





Application Range: This product applies to information displays for all the signs, stores, vehicles, outdoor ads, et.;

Advantages: Wireless transmission for U-Disk, cost-effective, simple software interface, easy to operate, rich and fine display effects; above all, more than 98% single/dual color screens are supported;

 Application Software: the fourth-generation operating software



I. Setup Diagram



II. Parameters Description

Type of control card: single color /dual color

Control range: 32*768 and 16*1024 for single color; 32*384 and 16*768 for dual color;
Scan mode: static, 1/2, 1/4, 1/8 and 1/16 common modes



Communication type: U-Disk

Power supply: +4.2-5.5V

Power consumption: ≤0.5W

Work environment: -40℃--75℃

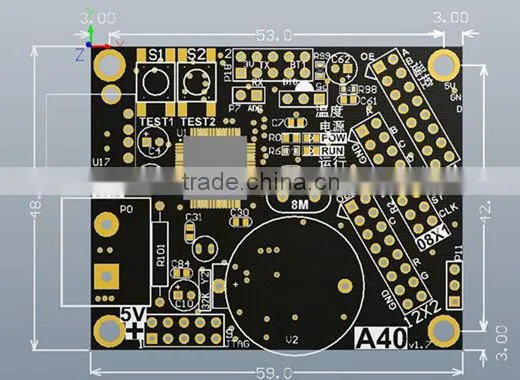

Installation dimension: 48.0(H)*59.0(W)(mm)

III. Features

Content	Capability
FLSH capacity	2M Byte(able to expand to 8M Byte)
Communication port	U-Disk
Color	Dual color supports red, green and yellow.
Program quantity	Two hundred programs are available, which can be switched by buttons or remote control.
Area quantity	Eight areas with separate zone, special effect and border
LED pixel	32(H)×768(W)(The resolution is 24K.)
Display content	Text, image, time, temperature, count, animated characters, etc.
Display mode	Display in order, switch by buttons or remote control
Display effect	1. Text, image, time, count, temperature (Module needs to be connected.), etc.; 2. Support the settings of program/area/custom borders; 3. Various action modes; 4. Over 40 special character effects; 5. Support simple animated characters; 6. Support hollow/stroked characters; 7. Support the background settings of area characters;
Function of clock	1. Support calendar/analog clock; 2. Count up/count down display; 3. The font, size, color and position can be set freely; 4. Support multiple time zones;
Expander	Temperature/humidity/remote control/light sensors
Automatic switch	Support time switch
Brightness setting	Support three brightness modes

IV. Port Definition

The control board has a common 08 port and two common 12 ports, which are defined as below:

the 08 port	the 12 port
