P16 Rgb Outdoor Module,p16 Led Display

P16 Rgb Outdoor Module,p16 Led Display thumbnail-1
P16 Rgb Outdoor Module,p16 Led Display photo-1
US$ 10.9 - 11 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
tenbull
Model Number:
P16
Contact Supplier Request Quote Chat Now
Shenzhen Tenbull Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name tenbull
Model Number P16
Usage Outdoor
Tube Chip Color Other, RGB
Display Function Graphics
Pixels 16mm
Screen Dimension 320*160MM

Specifications

P16 rgb outdoor Module
P16 rgb module Size:320*160MM
Resolution:20*10dots
Density:3906dots

P16 rgb outdoot Module  Module



 Technical Specification

 Pixel pitch

 16mm

 Pixel configuration

 1R1G1B

 Pixel resolution

 3906 dot/m2

 Cabinet size

 960mm x 960mm

 Cabinet resolution

 60 x60

 Module size

 320mm x 160mm

 Weight (KG/cabinet)

 40kg

 Max Power

 <700 W/m2

 Ave Power

 350 W/m2

 Brightness

 >6000 cd/m2

 Grey color

 16.7M

 Refresh frequency

 >3000HZ

 Frame rate

 >60HZ

 The best viewing distance

 5-50m

 Viewing angle

 H100°/ V50°

 Operation temperature

 -40°C-55°C

 Related humidity

 10%~95%

 Drive method

 static constant current

 Brightness adjustment

 0~100% stepless

 Scotoma rate

 <0.0001

 MTTF

 >5000H

 Lifespan

 100000H

 Computer operation system

 Win98/Win XP/Win 2000

 Visual signal

 RF, S-Video,RGB,RGBHV,YUV,YC,etc.

 Control method

 to be synchronized with computer

 Ingress protection

 IP65

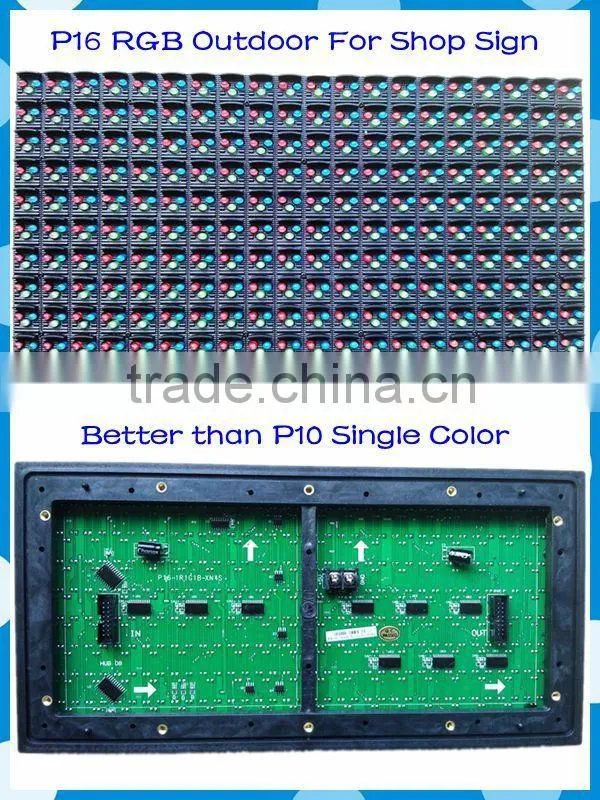

P16 rgb outdoor Module,p16 led display

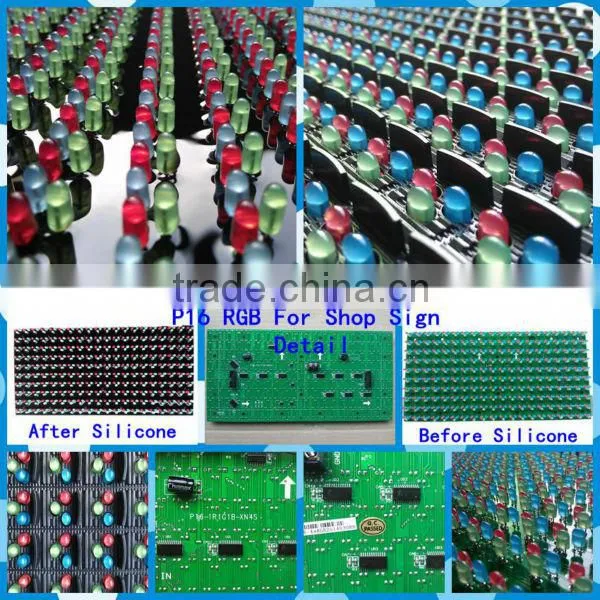

P16 rgb outdoor Module,p16 led display



Professional LED screens& LED Displays Module Manufacturer



-----SMD: p3/p4/p5/p6/p7.62/p10 indoor full color led module and led display.



-----Single Color:P10 red outdoor/P10 White outdoor/P10 Blue outdoor/P10 Green outdoor/P10 Yellow outdoor&SIMI-outdoor led module and led screen



-----Double Color:P10 double color/p16 double color/p20 double color SIMI-outdoor&outdoor led module and led screen



-----all of our led module has highly resolution, good image effect,and easy to install and convenient to carry;



----- Resonable price, good uniformity, stable capability and high brightness;



-----Aluminum alloy material both for fixed installation and hanging rental;



-----Own Unique Design LED Screen
