R407c Piston Copeland Compressor ZR16M3E-TWD
US$ 985 - 1,185
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Thailand
Brand Name:
Copeland
Model Number:
ZR16M3E-TWD
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hermetic Piston Copeland Compressor ZR19M3-TWDUS$ 1,075 - 1,285MOQ: 1 Unit -
ZR Series Copeland Compressor Models ZR19M3E-TWDUS$ 1,085 - 1,285MOQ: 1 Unit
-
ZR Series Copeland Scroll Compressor ZR160KC-TFD-522US$ 975 - 1,185MOQ: 1 Unit
-
ZR Copeland Scroll Compressor ZR160KCE-TFD-522US$ 975 - 1,185MOQ: 1 Unit
-
15hp Hermetic Scroll Copeland Compressor ZR190KCE-TFD-522US$ 1,045 - 1,275MOQ: 1 Unit
Place of Origin
Thailand
Brand Name
Copeland
Model Number
ZR16M3E-TWD
Type
Refrigeration Compressor
Application
Refrigeration Parts
Certification
CE
Copeland Compressor Model
1,ZR11M3-TWD,ZR12M3-TWD,ZR16M3-TWD,ZR19M3-TWD
2,ZR11M3E-TWD,ZR12M3E-TWD,ZR16M3E-TWD,ZR19M3E-TWD
1,ZR11M3-TWD,ZR12M3-TWD,ZR16M3-TWD,ZR19M3-TWD
2,ZR11M3E-TWD,ZR12M3E-TWD,ZR16M3E-TWD,ZR19M3E-TWD
Type: Hermetic piston compressors
Producer: Copeland
Series: ZR
Model: ZR16M3E-TWD
Technical data
| Nominal motor power [HP]: | 13 | |
| Displacement [m³/h]: | 35,5 | |
| Sound pressure level : | 69 | |
| Gross/Net weight [kg]: | 114/103 | |
| Oil charge [dm³]: | 4,1 |
Electrical data
| Power supply [V/~/Hz]: | 1 3/8" | |
| Locked rotor current [A]: | 7/8" | |
| Max. operating current [A]: | 1 1/4" | |
| Winding resistance [Ω]: | 319/357 |
Connections
| milimeters | inches | ||
| Suction Rotolock valve connection: | 1 3/4" | ||
| Discharge Rotolock valve connection: | 1 1/4" | ||
| Suction connection with supplied sleeve: | 1 3/8" | ||
| Discharge connection with supplied sleeve: | 7/8" |
Capacity: R-22,R134A,R407C
Cooling capacity [kW]
| tc te | -20 | -15 | -10 | -5 | 0 | 5 | 10 | 15 |
| 20 | 15.83 | 19.88 | 24.59 | 30.09 | 36.52 | 44.01 | - | - |
| 25 | 15.42 | 19.40 | 23.96 | 29.23 | 35.36 | 42.48 | 50.72 | - |
| 30 | 14.83 | 18.76 | 23.20 | 28.28 | 34.14 | 40.91 | 48.72 | 57.71 |
| 35 | 14.03 | 17.95 | 22.31 | 27.22 | 32.83 | 39.28 | 46.69 | 55.21 |
| 40 | 13.03 | 16.96 | 21.25 | 26.03 | 31.42 | 37.57 | 44.62 | 52.68 |
| 45 | - | 15.77 | 20.02 | 24.68 | 29.89 | 35.78 | 42.48 | 50.12 |
| 50 | - | - | 18.60 | 23.18 | 28.22 | 33.87 | 40.26 | 47.51 |
| 55 | - | - | - | 21.49 | 26.40 | 31.84 | 37.94 | 44.83 |
| 60 | - | - | - | - | 24.41 | 29.66 | 35.50 | 42.06 |
| 65 | - | - | - | - | 22.23 | 27.33 | 32.94 | 39.19 |

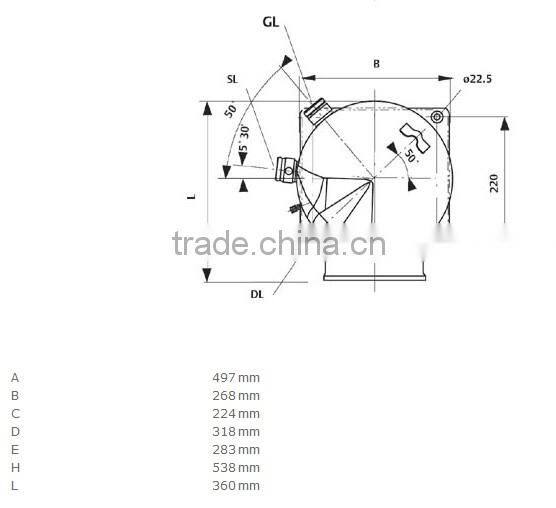

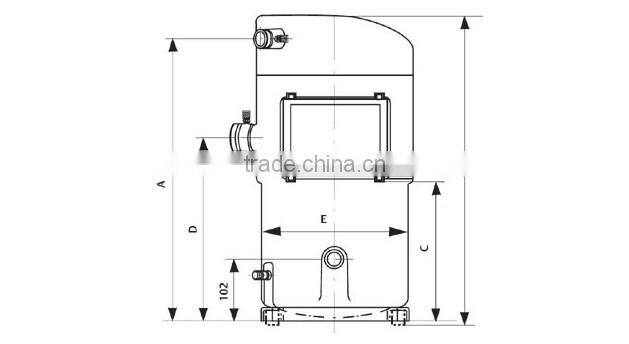

Drawing:

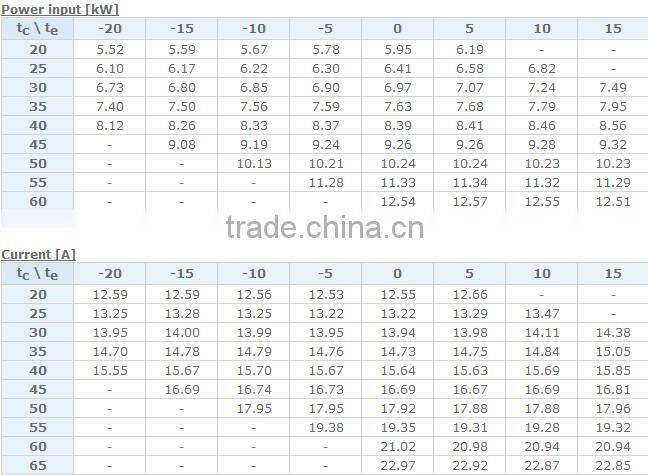

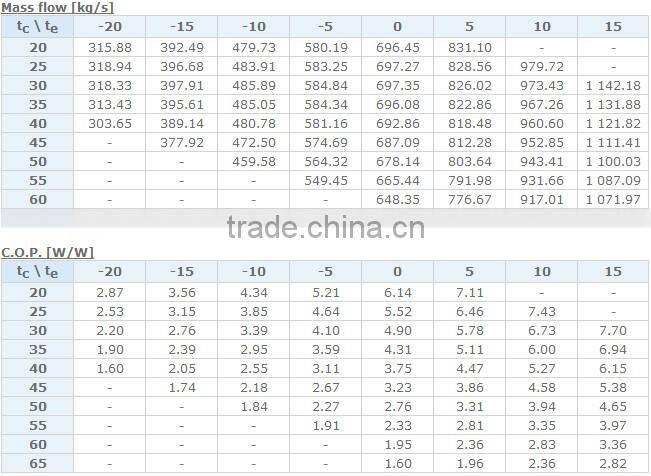

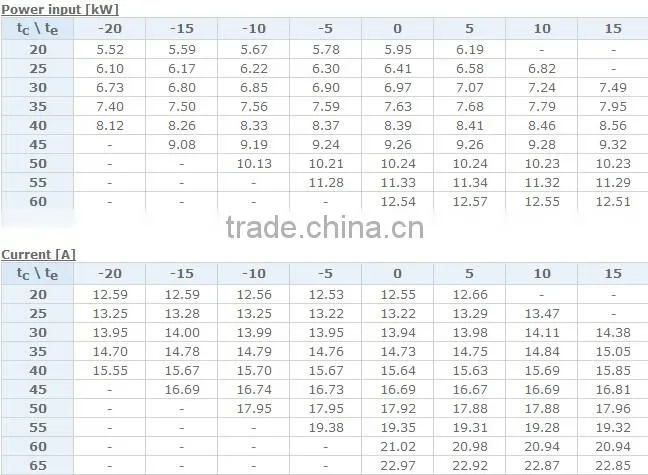

Pictures:
