Home > Products > Copeland Compressor > ZR Series Copeland Scroll Compressor ZR160KC-TFD-522
ZR Series Copeland Scroll Compressor ZR160KC-TFD-522
USD $975 - $1,185
/ Unit
1 Unit(Min.Order)
- 1000 Unit / Units per Month
- Guangzhou/Shenzhen
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin: | Thailand | Brand Name: | Copeland | Model Number: | ZR160KC-TFD |
| Type: | Refrigeration Compressor | Application: | Refrigeration Parts | Certification: | CE |
Product Description
Copeland Piston Compressor
1,ZR160KC,ZR190KC,ZR250KC-TWD,ZR310KC,ZR380KC
2,ZR160KCE,ZR190KCE-TFD,ZR250KCE,ZR310KCE,ZR380KCE
1,ZR160KC,ZR190KC,ZR250KC-TWD,ZR310KC,ZR380KC
2,ZR160KCE,ZR190KCE-TFD,ZR250KCE,ZR310KCE,ZR380KCE
Type: Hermetic scroll compressors
Producer: Copeland
Series:ZR
Model: ZR160KC-TFD
Technical data
| Displacement [m³/h]: | 36,4 | |
| Sound power [dBA]: | 79 | |
| Sound pressure level [dB]: | 68 | |
| Net Weight [kg]: | 64,9 | |
| Gross Weight [kg]: | 75 | |
| Oil charge [dm³]: | 3,3 | |
| Maximum high pressure [bar]: | 32 | |
| Maximum standstill pressure [bar]: | 20 | |
| Minimal lowside temperature [°C]: | -35 | |
| Maximum lowside temperature [°C]: | 52 | |
| PED category: | 2 |
Electrical data
| Power supply [V/~/Hz]: | 380-420/3/50Hz | |
| Locked rotor current [A]: | 140 | |
| Max. operating current [A]: | 28,0 | |
| Winding resistance [Ω]: | 1,1 |
Connections
| inches | |||
| Suction connection with supplied sleeve: | 1 3/8" | ||
| Discharge connection with supplied sleeve: | 7/8" |

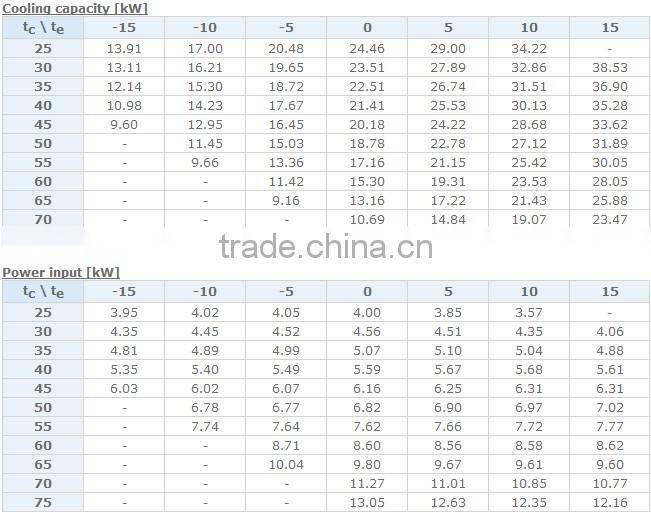

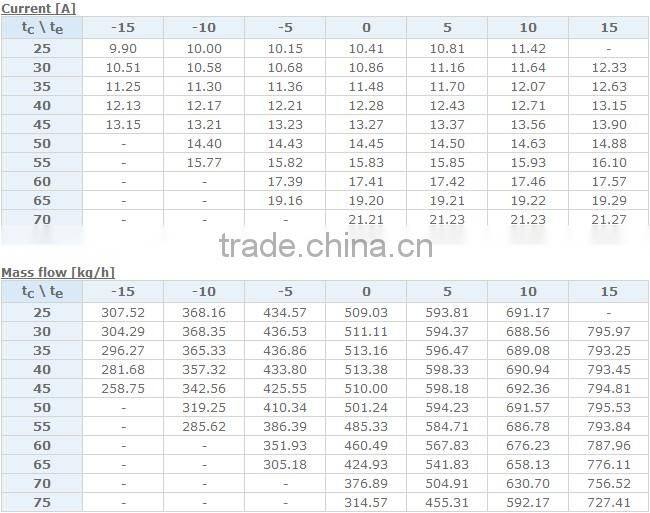

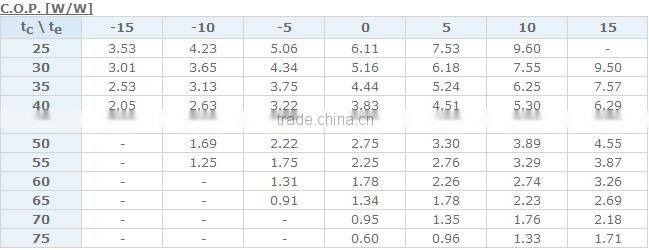

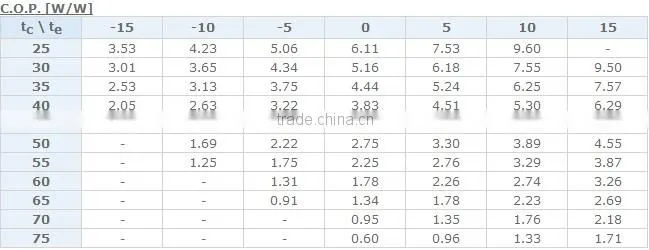

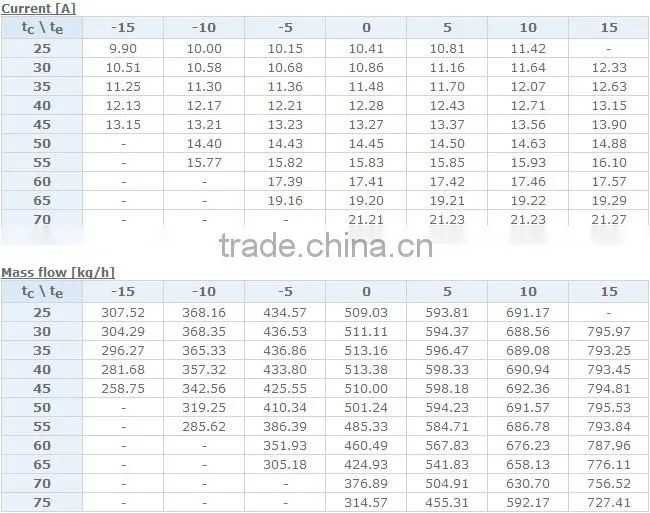

Capacity :R-22

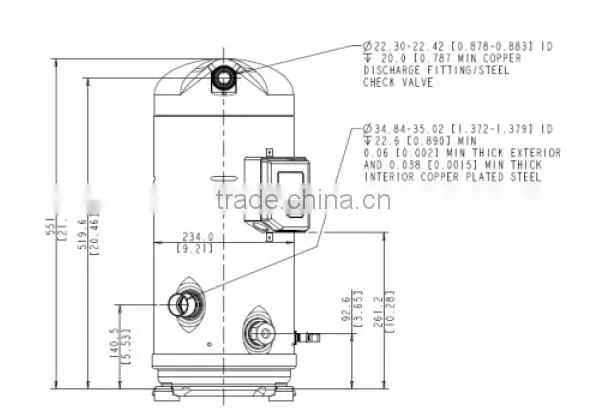

Drawing:

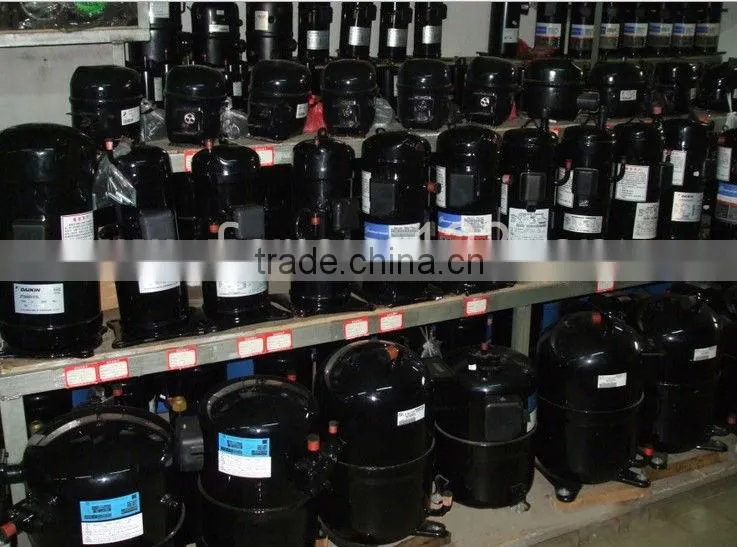

Pictures:
