15hp Hermetic Scroll Copeland Compressor ZR190KCE-TFD-522
US$ 1,045 - 1,275
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Thailand
Brand Name:
Copeland
Model Number:
ZR190KCE-TFD
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
20hp ZR Copeland Piston Compressor ZR250KC-TWD-522US$ 1,475 - 1,875MOQ: 1 Unit -
R22 Copeland Compressor ZR Series ZR310KC-TWDUS$ 1,675 - 2,185MOQ: 1 Unit
-
25HP ZR Series Copeland Piston Compressor ZR310KCE-TWDUS$ 1,675 - 2,185MOQ: 1 Unit
-
ZR380KCE-TWD Copeland Piston Compressor 30HPUS$ 2,275 - 2,485MOQ: 1 Unit
-
Copeland Scroll Compressor ZB15KCE-PFJUS$ 200 - 2,000MOQ: 1 Unit
Place of Origin
Thailand
Brand Name
Copeland
Model Number
ZR190KCE-TFD
Type
Refrigeration Compressor
Application
Refrigeration Parts
Certification
CE
Copeland Piston Compressor
1,ZR160KC,ZR190KC,ZR250KC-TWD,ZR310KC,ZR380KC
2,ZR160KCE,ZR190KCE-TFD,ZR250KCE,ZR310KCE,ZR380KCE
1,ZR160KC,ZR190KC,ZR250KC-TWD,ZR310KC,ZR380KC
2,ZR160KCE,ZR190KCE-TFD,ZR250KCE,ZR310KCE,ZR380KCE
Type: Hermetic scroll compressors
Producer: Copeland
Series: ZR
Model: ZR190KCE-TFD
Technical data
| Displacement [m³/h]: | 43,3 | |
| Sound power [dBA]: | 82 | |
| Sound pressure level [dB]: | 71 | |
| Net Weight [kg]: | 66 | |
| Oil charge [dm³]: | 3,3 | |
| Maximum high pressure [bar]: | 32 | |
| Maximum standstill pressure [bar]: | 20 | |
| Minimal lowside temperature [°C]: | -35 | |
| Maximum lowside temperature [°C]: | 52 | |
| PED category: | 2 |
Electrical data
| Power supply [V/~/Hz]: | 380-420/3/50Hz | |
| Locked rotor current [A]: | 174 | |
| Max. operating current [A]: | 34,0 | |
| Winding resistance [Ω]: | 0,8 |
Connections
| inches | |||
| Suction connection with supplied sleeve: | 1 3/8" | ||
| Discharge connection with supplied sleeve: | 7/8" |
Capacity :R-134A,R407C
Cooling capacity [kW]
| tc te | -15 | -10 | -5 | 0 | 5 | 10 | 15 |
| 25 | 16.54 | 20.31 | 24.55 | 29.38 | 34.87 | 41.12 | - |
| 30 | 15.51 | 19.24 | 23.42 | 28.13 | 33.47 | 39.53 | 46.42 |
| 35 | 14.42 | 18.13 | 22.24 | 26.84 | 32.04 | 37.92 | 44.59 |
| 40 | 13.23 | 16.92 | 20.97 | 25.48 | 30.54 | 36.25 | 42.71 |
| 45 | 11.90 | 15.58 | 19.58 | 24.00 | 28.94 | 34.48 | 40.74 |
| 50 | - | 14.07 | 18.03 | 22.37 | 27.19 | 32.58 | 38.63 |
| 55 | - | 12.35 | 16.27 | 20.54 | 25.25 | 30.49 | 36.36 |
| 60 | - | - | 14.28 | 18.48 | 23.09 | 28.18 | 33.87 |
| 65 | - | - | 12.00 | 16.15 | 20.66 | 25.62 | 31.14 |
| 70 | - | - | - | 13.50 | 17.92 | 22.76 | 28.12 |
| 75 | - | - | - | 10.50 | 14.84 | 19.57 | 24.76 |

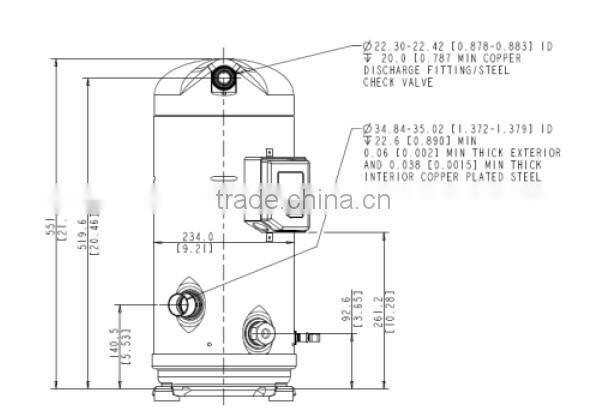

Drawing:
Pictures:
