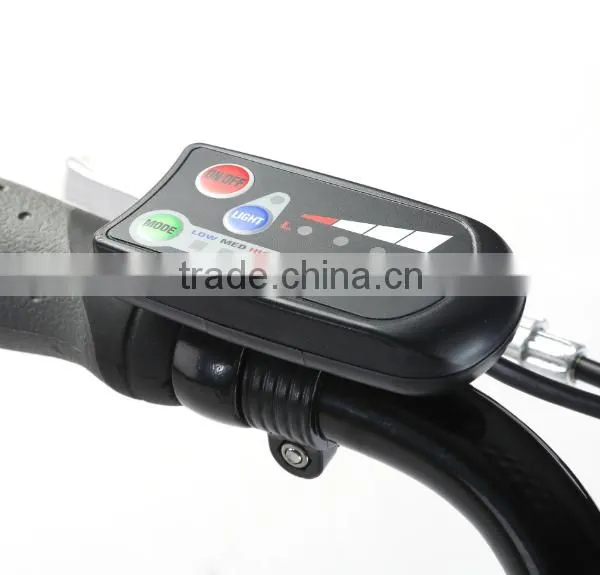

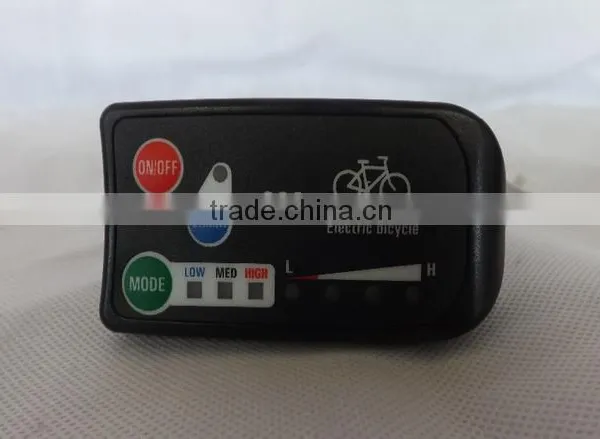

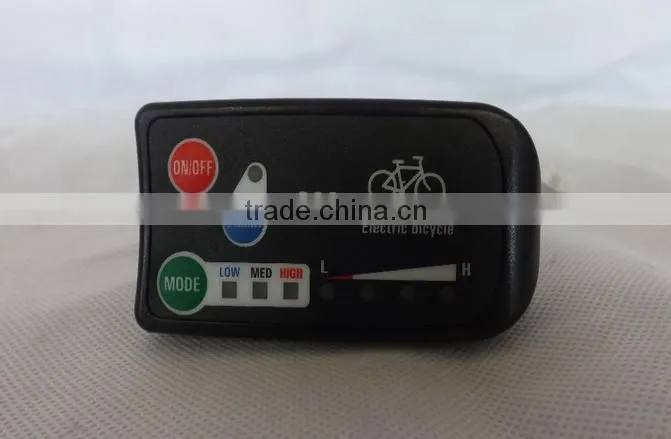

Electric Bike Digital LED Display
1. The button of ON/OFF : control the power supply of the controller for the E-Bicycle .When the status is ON, the display will supply the current of 0-300mA for the controller. When the status is OFF, the total current will be less than 1uA.
2. The button of MODE :switchover the maximum PWM value of the output of the controller , to change the speed.
3. The LED : indicate the current voltage . It will keep on 3s to check the current voltage, to avoid the LED flashing. When lack of voltage, the minimum power indicator will flash at 1Hz. But the controller will not be power off.
4. The button will control the front and rear lights. (Customer could choose.)
5. Be in conformity with ROHS , CE Report .
6. Waterproof meets IP65 protection standards level.
Packaging Details: carton, as customer's request
Delivery Detail: 60 days since receiving your deposit
