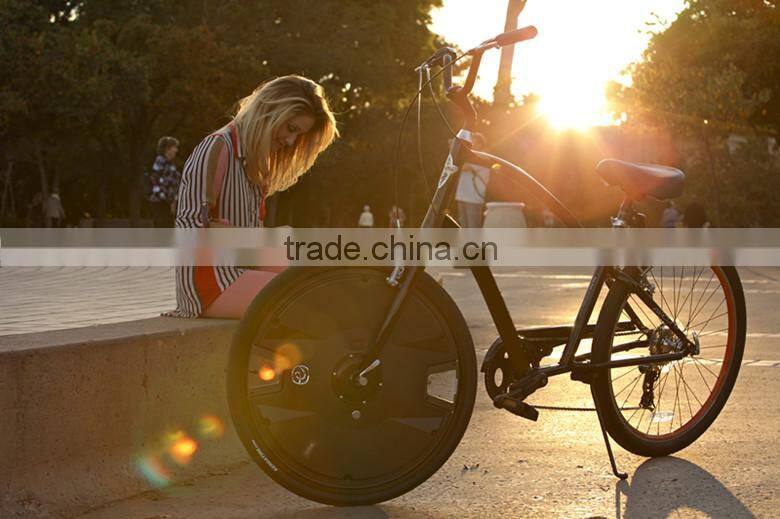

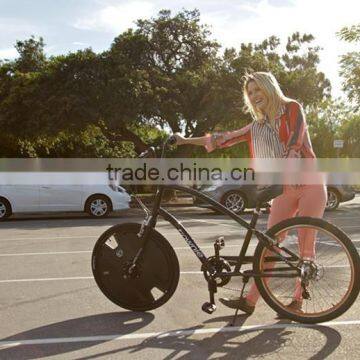

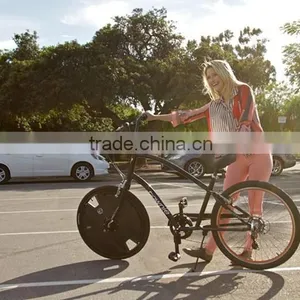

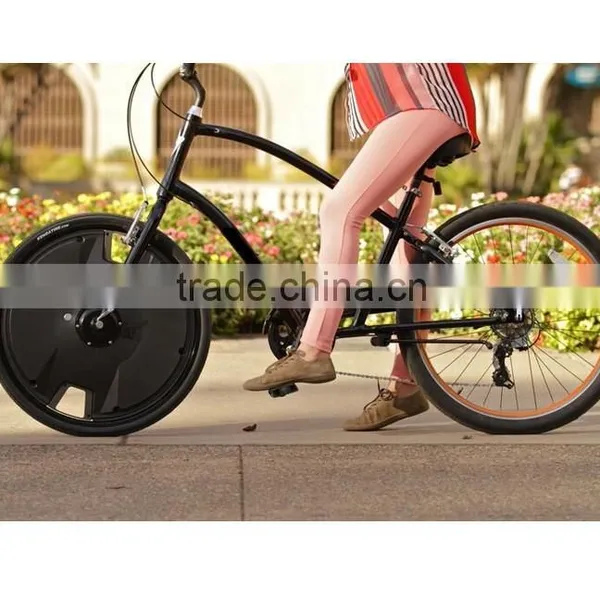

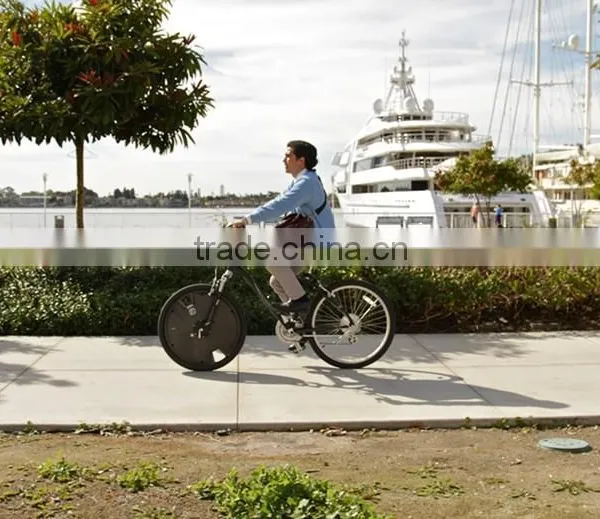

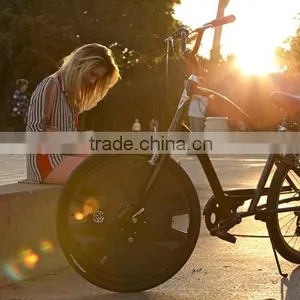

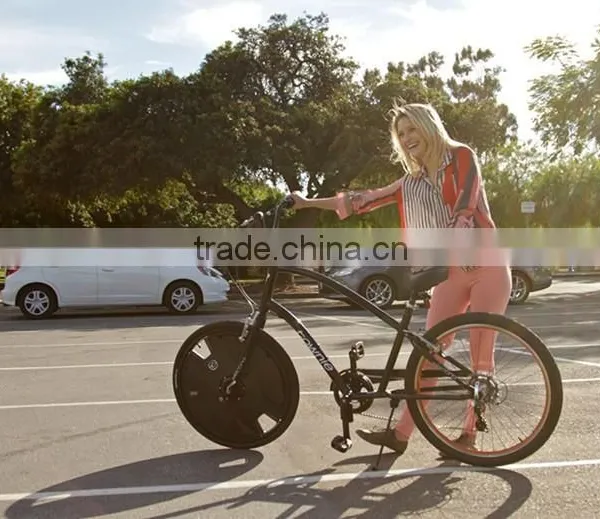

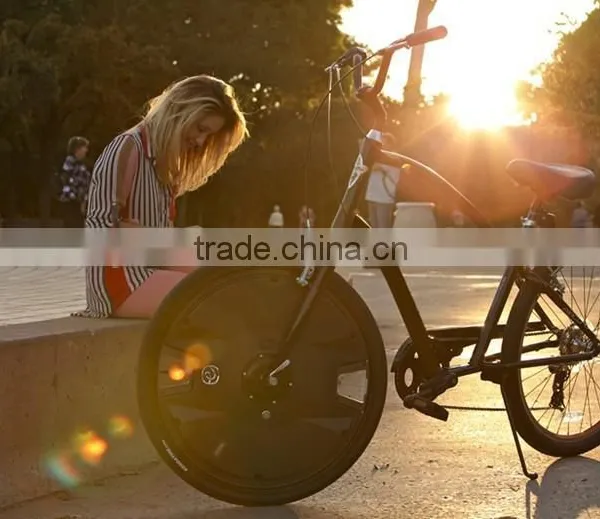

Electron wheel changing the normal bike

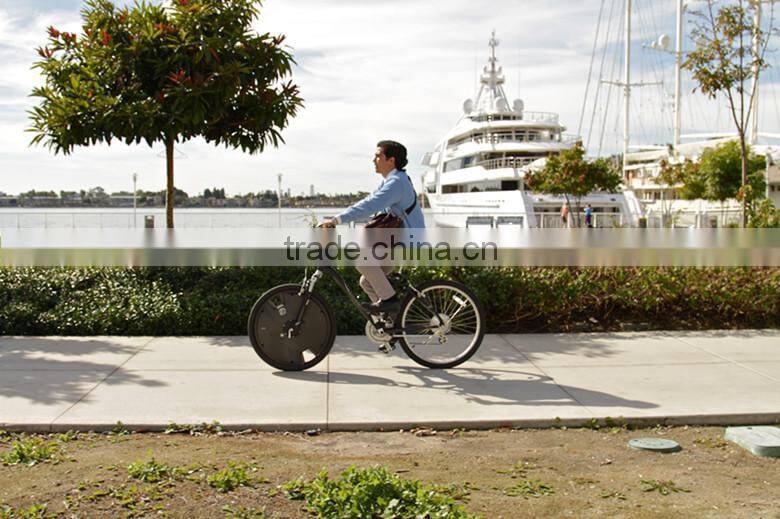

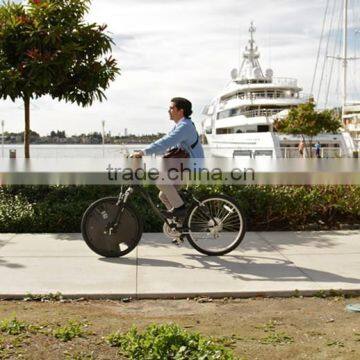

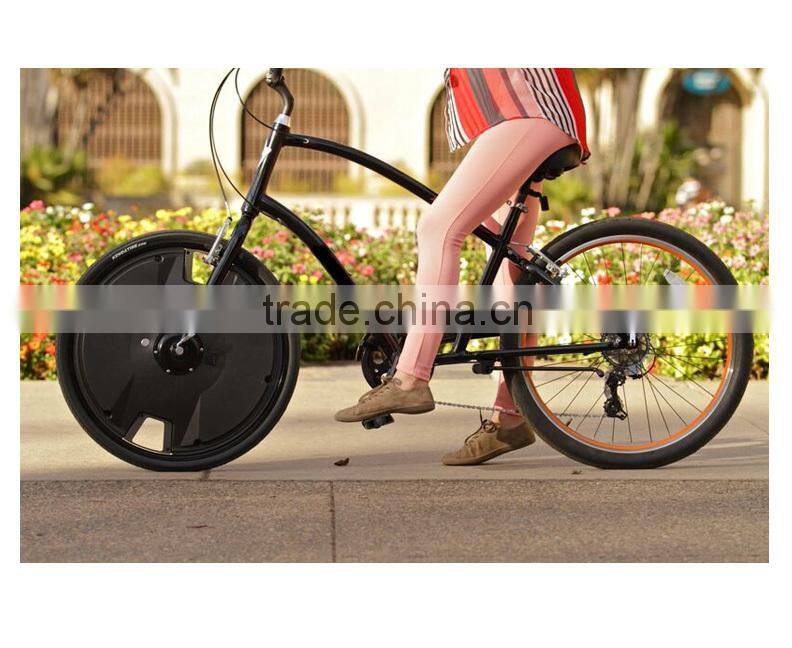

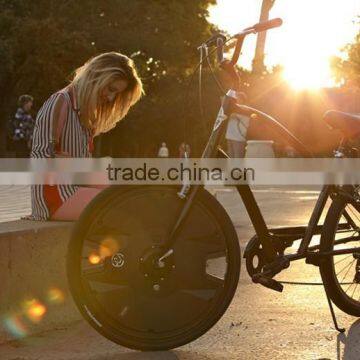

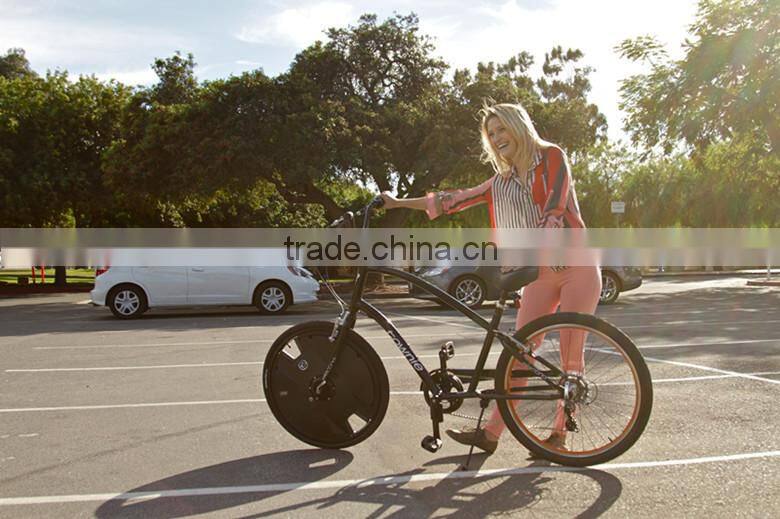

The Electron Wheel™ consists of a high powered, self-contained electric motor that’s integrated into a standard 24”, 26” or 700c wheel,and can be easily fitted onto a standard bike frame within 30 seconds, without the need for specialized tools or equipment.
By replacing the standard front wheel of any normal bike, the Electron Wheel™ provides motorized pedal assistance without interfering with existing gearing or shift setup.
This allows the Electron Wheel™ to be installed in both single gear and multi-gear bikes.
Motor assistance levels are determined by the wheel’s intuitive pedal and incline monitor sensors, which constantly measure the rider’s pedal input and ground incline.
The combination of these unique, patented sensors minimizes the rider’s effort going uphill and allows the Electron Wheel™ to provide greater motor assistance on steep inclines without the rider having to pedal with greater force.
MOTOR: 250W DC Brush Planetary Geared Hub Motor
BATTERY: Electrical Vehicle Related Rechargeable Li-ion Cells, Advanced BMS, 24V 10.7Ah (256Wh)
CHARGER SYSTEM: UL Listed Electron Wheel Charger with LED Status Indicator Display, Intl. Voltage 2A is standard, 4A is optional
SPEED: Max 19.9 mph (32 km/h) in USA. Max 16 mph (25 km/h) in Europe (per regulation)
RANGE: 16-22 miles (26-35 km) with Normal Pedaling
FRONT WHEEL: Alloy 26" x 1.75" Rim, 26" x 1.25" Tire, Inner Tube, Rim Strip, Double Wall Alloy Rim with Stainless Steel Spokes
- 24” and 700c wheel (28”) will be ready in June 2015

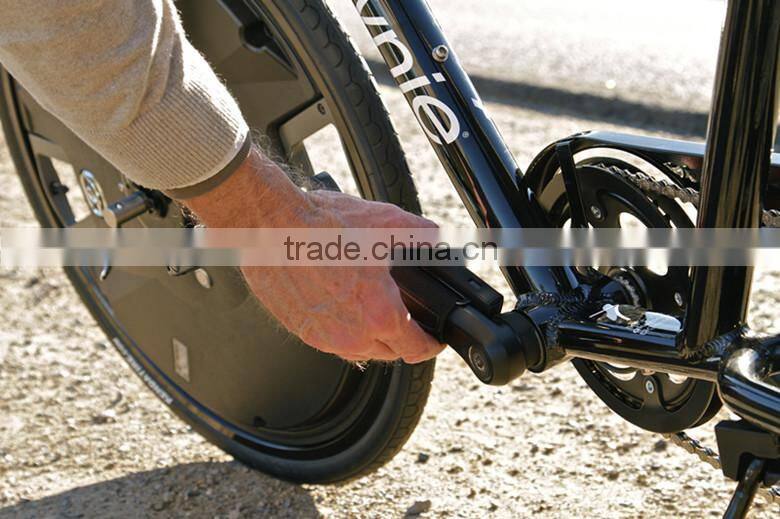

USER CONTROL: Power On/Off Switch, and Easy Access Charger Port are on Left Side of Front Wheel
APP: Motor power control and battery indicator, dashboard to track rides. Also upgrade FW through bluetooth
WEIGHT: 19.8 lbs (9.0 kg)
WARRANTY: 2 years on motor, 2 years on battery, 1 year on charger, 1 year on other components

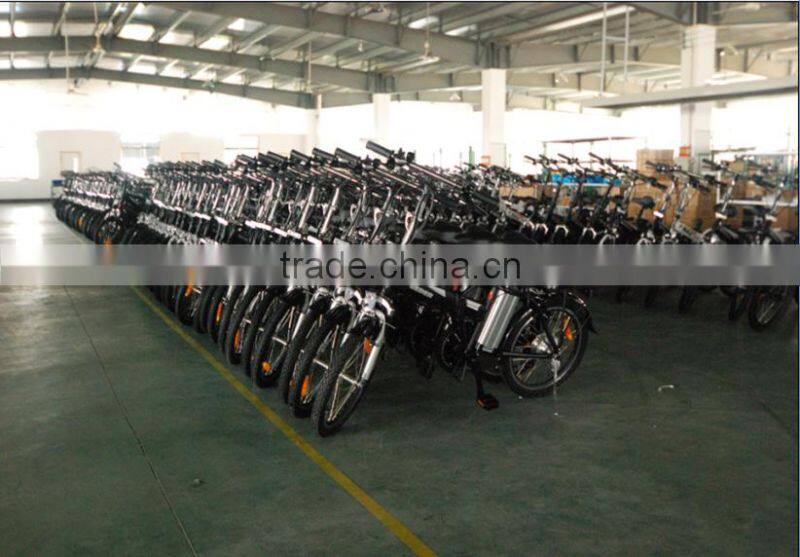

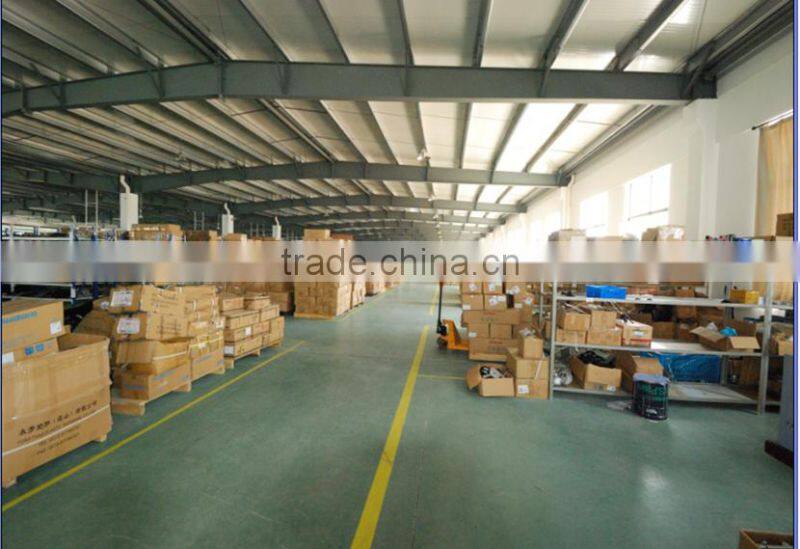

Jinhua JOBO Technology Co.,Ltd.
(originally:Jinhua Jiabao Vehicle Co.,Ltd)
A proffessional electric bicycle manufacturer in China,have engaged in this filed
Website:
Address: No.399 shicheng street,qiubing industrial park,Jinhua City,Zhejiang Province,China
Contact:Nancy xu
Tel:+86-579-83236565 Skype:jiabao-bike10
Fax:+86-579-89185892 Mob:+86-18858955106
