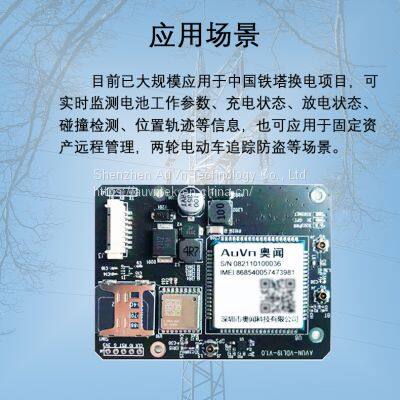

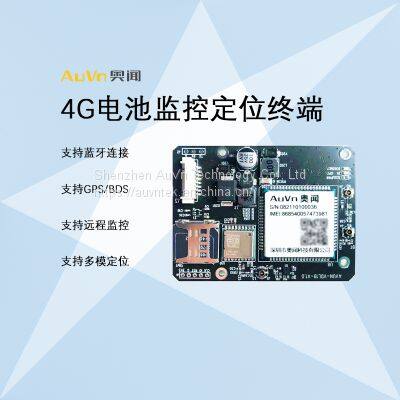

4G Battery Monitoring and Positioning Terminal 4G/5G Wireless Communication Core Board Development Board

FOB Price

US$ 21 - 28 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	AuVn		Place of Origin	China
Model Number	VDL19		Part	Other, 4G battery monitoring and positioning terminal

Product characteristics

Power supply voltage: DC wide voltage input 9V~16V/8.4W

Power protection: anti reverse connection protection

Boot time:<10s (12v, can respond to commands normally)

G-Sensor: Support

GNSS: Supports GPS/BDS

Indicator light display: NET (green) indicates network status

GPS (red) indicates GPS status

Wireless operating frequency band： 4G (standard): LTE-FDDB1/B3/B5/B8

LTE-TDD B34/B38/B39/B40/B41

Bluetooth： BLE4 (optional)

Working temperature： -35 ℃~+85 ℃

Size ：59.6mm * 42.9mm, four positioning holes with a diameter of 2mm

Height ：5.8mm * 1.6mm * 1.75mm (length * width * height)

Weight： 16g
