Product Details
Condition: | New | Place of Origin: | Guangdong, China | Brand Name: | FUDA |
Model Number: | DR-1000 | Rated Capacity: | 2.5KVA | Rated Duty Cycle: | 20% |
Max. Welding Thickness: | 1.0mm+1.0mm | Dimensions: | 90*70*140cm | Weight: | 200kg |
Usage: | metal sheet, steel plate welding | Voltage: | 220V, 50Hz, 1 phase | Power(W): | 2.5KW |
Certification: | CCC, CQC | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
resistance welding machine table spot welding machine

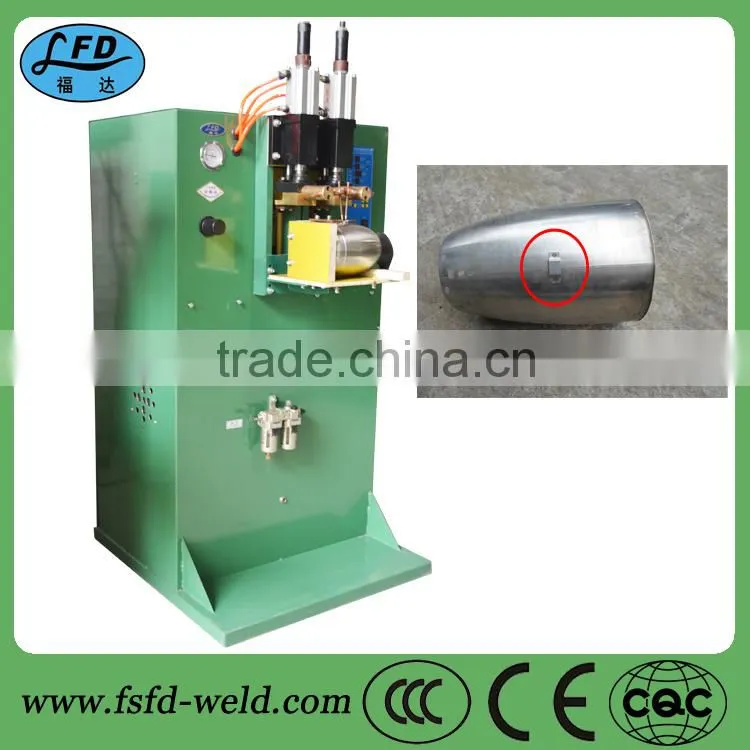

1,Capacitor discharge spot welders photos
2,
Model | Rated Voltage | Rated Capacity | Rated Stores Energy | Capacitance Capacity | Electrode Under Pressure | Discharge Voltage (DC-V) | Welding Thickness | |
Iron, Stainless steel | Aluminum Alloy, Copper | |||||||
DR-500 | 220V | 2KVA | 500J | 5000UF | 1188N | 50-400V | 1.0mm+1.0mm | 0.8mm+0.8mm |
DR-800 | 220V | 2KVA | 800J | 8640UF | 1188N | 50-400V | 0.8mm+0.8mm | 0.5mm+0.5mm |
DR-1000 | 220V | 2.5KVA | 1000J | 10800UF | 1188N | 50-400V | 1.2mm+1.2mm | 1.0mm+1.0mm |
DR-1500 | 220V/380V | 3KVA | 1500J | 15000UF | 3000N | 50-400V | 1.5mm+1.5mm | 1.2mm+1.2mm |
DR-3000 | 220V/380V | 5KVA | 3000J | 30000UF | 4710N | 50-400V | 1.8mm+1.8mm | 1.6mm+1.6mm |
DR-4500 | 220V/380V | 10KVA | 4500J | 45000UF | 7360N | 50-400V | 2.8mm+2.8mm | 2.3mm+2.3mm |
DR-6000 | 220V/380V | 15KVA | 6000J | 60000UF | 12057N | 50-400V | 3.5mm+3.5mm | 3.0mm+3.0mm |
3, Definition of storage energy welding
Stored energy welding machine is also called the capacitor stored energy welding machine. to use the capacitor stored energy is the main working principle, when energy can make a small area of solder melting and the instantaneous discharge, capacitance stored energy welding machine welding time is three over one thousand of a second, and the welding time is not adjustment.
4, Performance Characteristics
1), Controller using single-chip microcomputer control system, it's simple to operation and maintenance, control is accurate and stable.
2), Software and hardware combination, synchronous control, high precision to ensure the quality of welding.
3), Adopt imported brand-name urgent charging and discharging capacitor, stable capacity, long service life.
4), Circuit with a quickly charge and discharge, welding current is stable, high frequency charge and discharge.
5), Panel is the digital display, simple operation, elegant appearance.
6), Be equipped with the voice buttons, to remind the operator operation is successful, to prevent wrong operation.
7), Adopts soft starting mode with full digital integrated circuit to control constant current, charging is more rapid and stable.
8), Unnecessary charging current limiting resistance, avoide to waste energy due to current limiting resistance give out heat and save power 40% than normal condenser type spot welder.
9), Adopt imported famous brand quick charging and discharging capacitor, stable volume and long life.
10), Digital charging voltage display, setting charging voltage that is more accurate, intuitive.
5, Application
It is specially suitable for welding stainless steel, copper, aluminum, alloy(nickel), tungsten and metal plate, wire that conduction of heat and electricity is very good and the welding between heterogeneous metal etc.
6, R&D Team and Quality Control
Our R&D center has a young and experienced R&D team. They are the industry's elite and the pioneer, the R&D department is responsible for new technology, new product research and development and industrial production follow-up.
Our company makes use of advanced production equipment and testing equipment following the ISO9001 quality assurance system, which is in strict accordance with the requirements of production to ensure product quality and reliability. The production process to implement the "three inspection" (self-inspection, mutual inspection, special inspection) procedures to ensure control of product quality. The manufactured products require the "three pass" (raw material into the plant pass, semi-finished product pass, finished off the factory pass) to ensure reaching the required quality; finished product storage, transportation and sales in the market were also included in the product quality management.
7,
1), We will be answer within 24 hours, welcome to contact with us if you have any problems. we warmly welcome to visit our company and looking forward to cooperating with you.
2), We can offer OEM or ODM service, according to customers requirements.
3), Unique and exclusive solution can be provided to our customers by our professional engineers.
8,
2), Payment type: T/T(Confirm contract pay 30% deposit, pay the balance before delivery).
3), Delivery time is 7-10 working days after receiving deposit.
4), Warranty: One year warranty, the Seller shall supply the free replacement spare parts (but NOT including the mould, wearing parts and the items of wrong using), and the delivery cost will bear on the buyer’s account.
9, Sales Markets
Foshan Fuyin Welding Equipment Co., Ltd is a professional manufacturing and developing company in the line of spot welding machine and Automatic devices of wire products series products. Our products are exported to South America, Mid East, Russia, Europe and countries around the world.
For more information, please feel free to contact us. Your satisfaction is our top priority!
