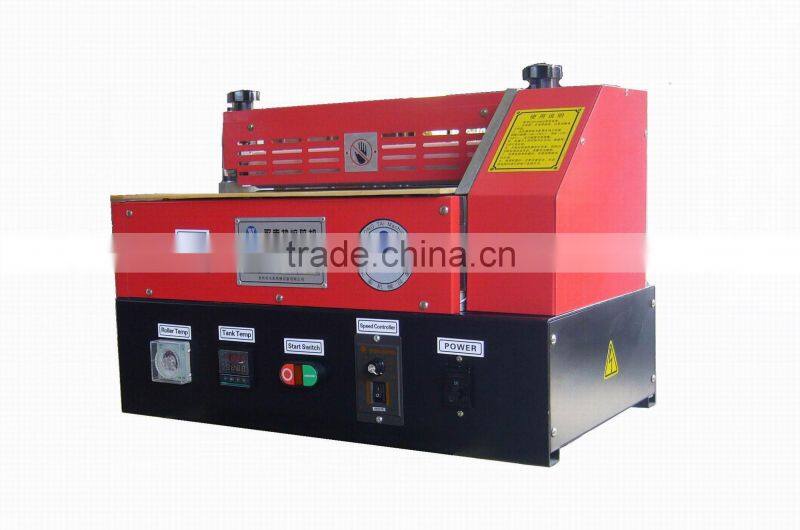

Help CenterRoller Coater Machine
Related Products
Specifications
nvenient to work.ating width 400mm
3.Coating in spots, strips, web, flat or edge coating.
Features:
Infinite lengths
Cost-effective
Easy-to-install
High adhesion capacity
Durability
Air permeability
Heat resistance
Low temperature
Aging resistance
Gluing method:
Coting in spots,strips,web,flat or edge coating.
Applications:
Big Area coating in footwear
Leather wares
Paper boxes decorations building materials sprorts instruments
SPECIFICATION:
ITEM |
UNIT |
YT-GL180 |
YT-GL830 |
YT-GL840 |
YT-GL850 |
Tank Capacity |
KG |
3.0 |
3.0 |
5. 0 |
7.0 |
Max. malting rate |
KGHOUR |
5.0 |
5.0 |
7.0 |
9.0 |
Max. Operation temp. |
°C |
200 |
200 |
200 |
200 |
Melt Power |
Watt |
1400 |
2300 |
2700 |
3200 |
Motor power |
Watt |
120 |
90 |
120 |
120 |
Coating width |
MM |
180 |
300 |
400 |
500 |
Max. Viscosity |
Cps |
100,000 |
100,000 |
100.000 |
100.000 |
Power Requirement |
Single Phase (1Φ), 220 V |
||||
Speed type |
|
Ordinary speed |
Ordinary speed |
Ordinary speed |
Ordinary speed |
ITEM |
UNIT |
YT-GL860 |
YT-GL880 |
Tank Capacity |
KG |
10.0 |
18.0 |
Max. malting rate |
KGHOUR |
14.0 |
20.0 |
Max. Operation temp. |
°C |
200 |
200 |
Melt Power |
Watt |
3600 |
4500 |
Motor power |
Watt |
180 |
200 |
Coating width |
MM |
600 |
800 |
Max. Viscosity |
Cps |
100,000 |
100,000 |
Power Requirement |
Single Phase (1Φ), 220 V |
||
Speed type |
|
Ordinary speed |
variable frequency |
