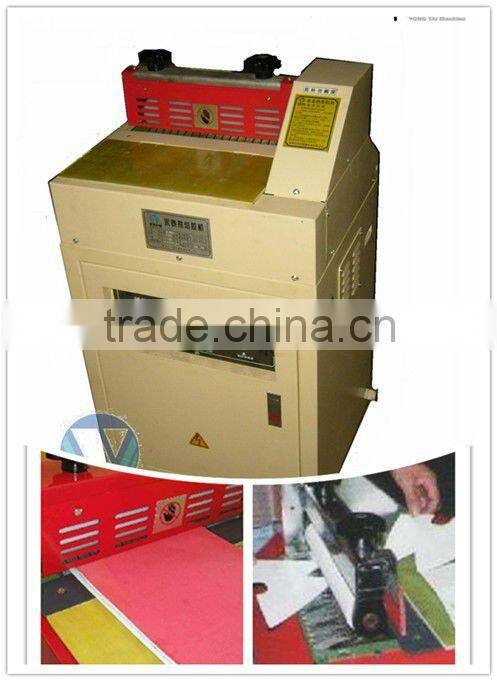

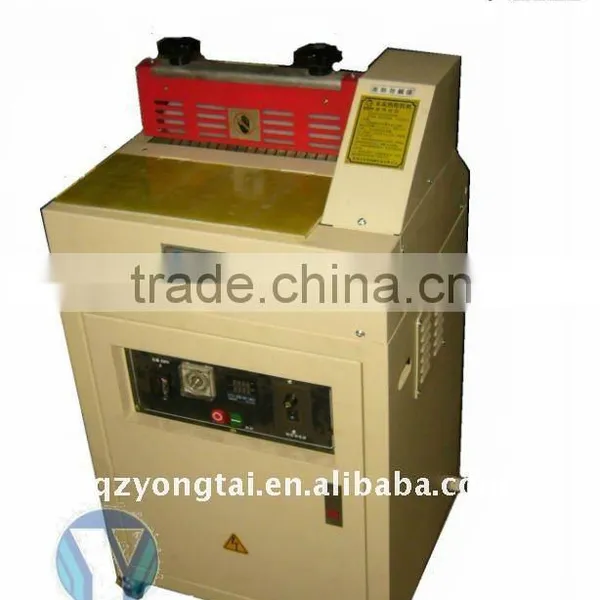

edge gluing machine
- 100 Set / Sets per Month
- XIAMEN PORT CHINA
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | YONGTAI MACHINE | |
| Model Number | YT-GL830 |
Product Description
Specifications
nvenient to work,high effiency,stepless speed .2.Coating in spots, strips, web, flat or edge coating.
Application:
Big area coating in footwear, leather wares, paper box, decorations, constrution material, sports instruments and etc., instead of self-adhesive tape.
Feature:
1) Safety devices to avoid hands drawn into rollers, to prevent wor piece entering melting tank.
2) Customized roller width ranges from 80-1000mm.
3) Roller rate can be adjusted as needed Tank temperature and roller temperature are separately controlled.
4)Stepless variable speed motor brings convenience in coating work pieces of varisble sizes.
SPECIFICATION:
ITEM | UNIT | YT-GL180 | YT-GL830 | YT-GL840 | YT-GL850 |
Tank Capacity | KG | 3.0 | 3.0 | 5. 0 | 7.0 |
Max. malting rate | KGHOUR | 5.0 | 5.0 | 7.0 | 9.0 |
Max. Operation temp. | °C | 200 | 200 | 200 | 200 |
Melt Power | Watt | 1400 | 2300 | 2700 | 3200 |
Motor power | Watt | 120 | 90 | 120 | 120 |
Coating width | MM | 180 | 300 | 400 | 500 |
Max. Viscosity | Cps | 100,000 | 100,000 | 100.000 | 100.000 |
Power Requirement | Single Phase (1Φ), 220 V | ||||
Speed type |
| Ordinary speed | Ordinary speed | Ordinary speed | Ordinary speed |
