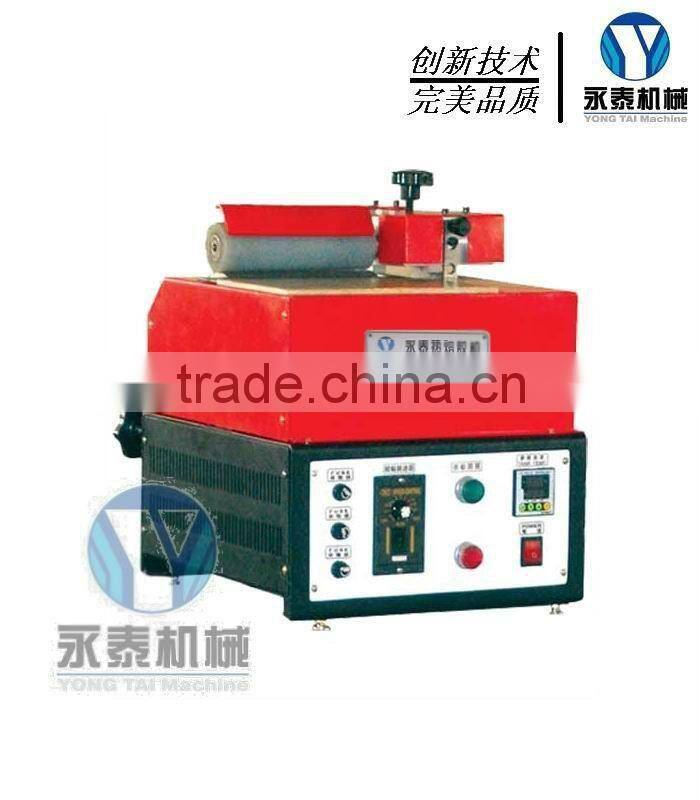

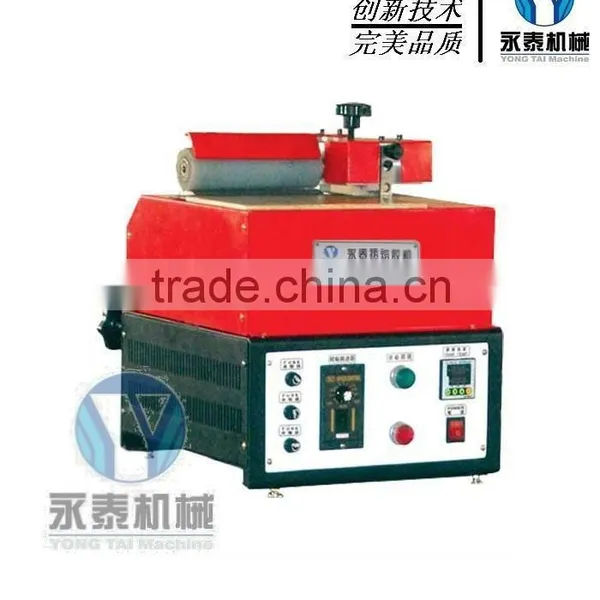

Help CenterHot Melt Coating Machine
Related Products
Specifications
nvenient to work.2.high effiency,stepless speed .
3.Coating in spots, strips, web, flat or edge coating.
FEATURES:
1. This machine is suitable for a large surface in stead of adhesive tape.
2. Precisely temperature control by P.I.D. temperature controller., roller stepless speed adjustment, convenient adjustment.
3. Equipped with isolation glue cover, emergency stop switch.Safety design to prevent hands drawn into machine.
4.Gluing type can be designed as required.
5.Aplication for shoe-making,packaging,furniture, carpet,bags and special.
SPECIFICATION:
ITEM |
UNIT |
YT-GL180 |
YT-GL830 |
YT-GL840 |
YT-GL850 |
Tank Capacity |
KG |
3.0 |
3.0 |
5. 0 |
7.0 |
Max. malting rate |
KGHOUR |
5.0 |
5.0 |
7.0 |
9.0 |
Max. Operation temp. |
°C |
200 |
200 |
200 |
200 |
Melt Power |
Watt |
1400 |
2300 |
2700 |
3200 |
Motor power |
Watt |
120 |
90 |
120 |
120 |
Coating width |
MM |
180 |
300 |
400 |
500 |
Max. Viscosity |
Cps |
100,000 |
100,000 |
100.000 |
100.000 |
Power Requirement |
Single Phase (1Φ), 220 V |
||||
Speed type |
|
Ordinary speed |
Ordinary speed |
Ordinary speed |
Ordinary speed |
ITEM |
UNIT |
YT-GL860 |
YT-GL880 |
Tank Capacity |
KG |
10.0 |
18.0 |
Max. malting rate |
KGHOUR |
14.0 |
20.0 |
Max. Operation temp. |
°C |
200 |
200 |
Melt Power |
Watt |
3600 |
4500 |
Motor power |
Watt |
180 |
200 |
Coating width |
MM |
600 |
800 |
Max. Viscosity |
Cps |
100,000 |
100,000 |
Power Requirement |
Single Phase (1Φ), 220 V |
||
Speed type |
|
Ordinary speed |
variable frequency |
