High Quality ZT688 720 Metal Floor Decking Roll Forming Machine
- tianjin
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
-
Dixin Decking Floor Production Roll Forming Line /high Quality Deck Floor Machine
-
Long-Span Forming Machine With Curving Machine
-
DX 720 Floor Deck Roll Forming Machine FOR Nigeria
-
DX 720 Floor Deck Roll Forming Machine/Building Raw Materials
-
DX 720 Floor Deck Roll Forming Machine/floor Panel Making Machine
-
Novel Design of DX 720 Floor Deck Roll Forming Machine
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Steel | Use | Floor | |
| Production Capacity | 8-12m/min | Brand Name | DIXIN | |
| Model Number | floor decking machine | Power(W) | 3KW-20.5KW | |
| Voltage | 380V/50HZ/3Phase | Dimension(L*W*H) | 8700*1550*1910mm | |
| Weight | 5 Tons | Certification | CE/ISO9001 | |
| Warranty | 12 Months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

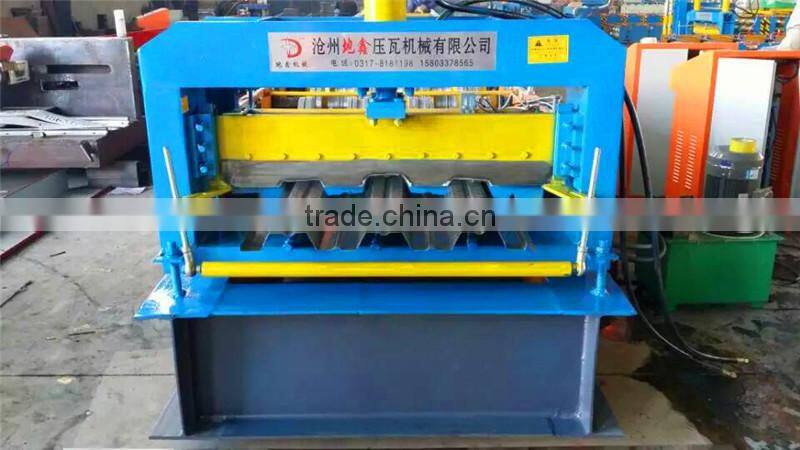

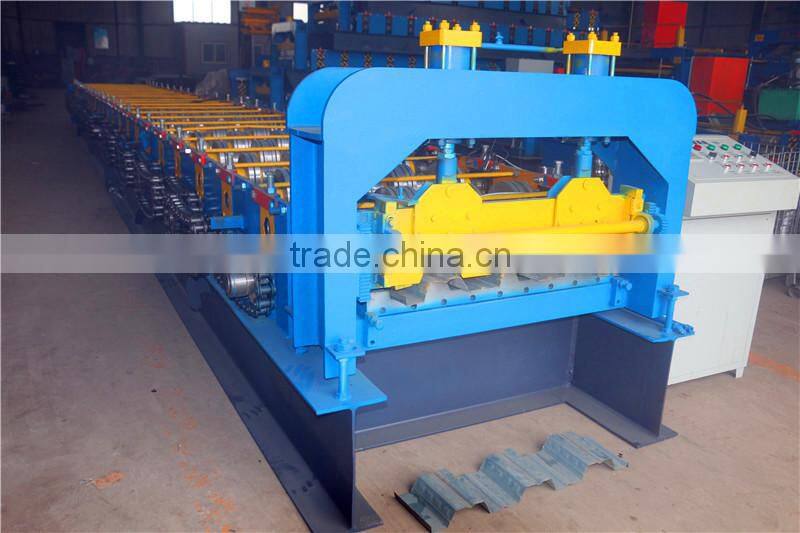

High Quality ZT688 720 Metal Floor Decking Roll Forming Machine
material:
Material thickness: 0.8---1.2mm
Material hardness: 195 mpa---350 mpa
Material width: 1250mm
Formed width: 914mm
Wavelength: 305 mm
Step height: 75mm
Step length:150mm---380mm(adjustable)
Forming speed: 8-10m/min
Uncoiler
Usage:It is used to support the steel coil and uncoil it in a turnable way.
Passive uncoil pulled by roll forming system
Loading capacity:5T
Uncoiling width:1250mm
Inner diameter: 450-550mm

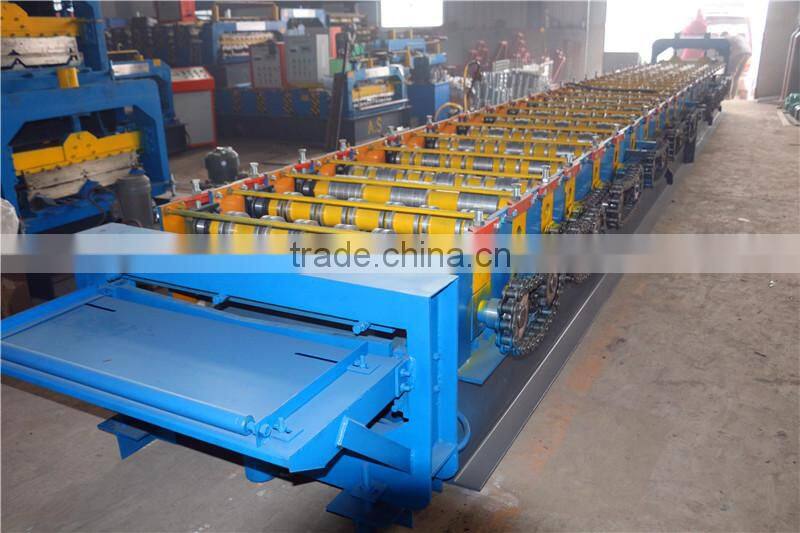

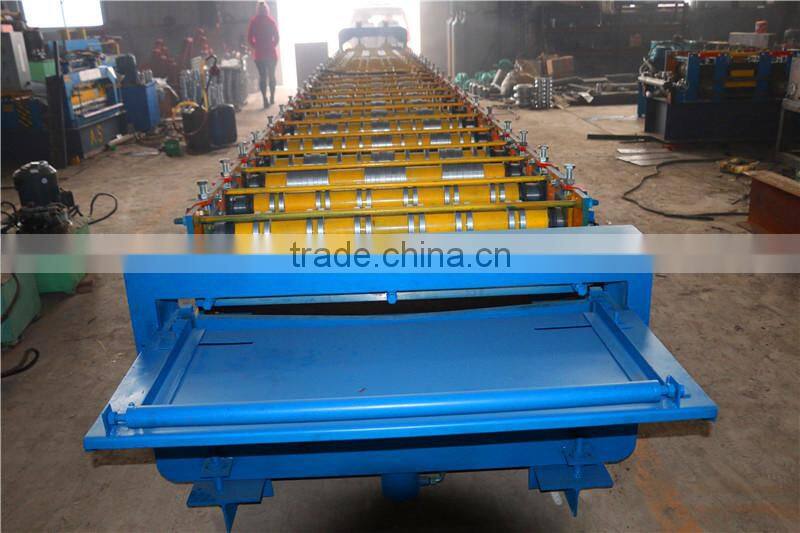

Entry Beach
Usage:Put the raw material(steel plate) through the beach to manufacture and process,
it can guarantee that the products are neat, parallel and everything is uniformity.
Please refer to the equipment regulation to know the function of locate angle iron.
Length of the main part:about 1800*1450*1500mm
Weight of main part:8.5T
Voltage:380V/50HZ 3Phase

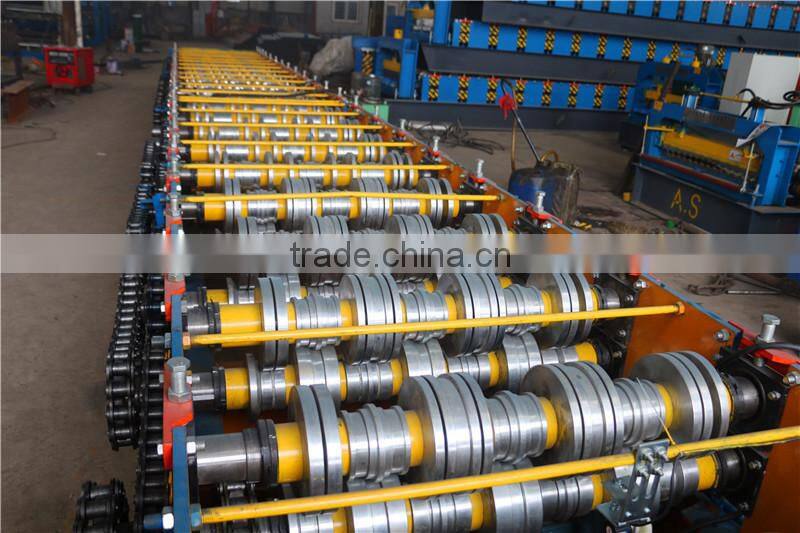

Roller fixer:middle plate
Frame:350H steel
Drive mode:chain
Material of rollers:45#steel, surface hard chromium plating.
Material of shafts:45#steel
Diameter of shafts: φ 90mm
Number of rollers: 28 rollers
Main power:2*11kw
Material of mould:Cr12 quenched
Power supply:hydraulic power
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12 quenched
Power supply : hydraulic power
Components:It contains one set of blade, one hydraulic tank and one cutter machine.
Power:5.5kw
