Thermal protector laser Marking Machine
As a factory,we will give you the highest quality and the competitive price.
We are looking for the agent for marking machine all over the world.
Introduction of thermal protector laser Marking Machine :
XINTIAN-series fiber laser marking machine is a new generation laser marking system made with newest laser technique in the world , It design with fiber laser maker as laser source, and thru high-speed vibration-mirror scan system to actualize marking function, the fiber laser making machine have high conversion efficiency of electric-light, It use air-cooling systems,the size of whole machine is compactness,the laser beam quality is excellent. this machine is widely applied to marking metal and some metalloid materials,mainly used to the field which request high quality to deepness, smoothness and precision, such as horologe,communication products images marking etc.
Features of thermal protector laser Marking Machine :
1. For a variety of metals, non-metallic materials for processing. Especially for high hardness, high melting point, a brittle material marked more advantage.
2. Belong to non-contact processing, no damage to product. No tool wear. Tags are of good quality.
3. A thin laser beam. Processing materials consumption is very small. Processing, small heat affected zone.
4. High processing efficiency. Adopt computer control. Easy to realize automation.
5. ---Long lifetime,over 100,000 hours.
---Compact laser source with air cooling.
---2 to 5 times more productive a traditional marker.
6. ---High accuracy and repeatability for correct marks each time with galvanometer scanners and electronic controls.
----More stable performance.
7.Output power is stable,optical mode is good,beam quality is excellent.
8.Marking speed is fast,efficient,and high accuracy.
9.Appearance is professional,operation is simple.
6.Two model choices:desktop or free-standing.
9.Runs without maintenance,without consumables,great for continuous working.
10.CE certificate.
11.The software controlling system has the interface of Windows and comprises files output by software such as CORELDRAW, AUTOCAD, PHOTOSHOP, etc. It can support graphic file formats such as PLT, DXF, PCX or BMP etc. And use fonts such as SHX, TTF directly. It also can mark automatic code, sequence number, batch number, date, bar code and two-dimensional code. The software can mark the figures on the opposite side.
Highlights of thermal protector laser Marking Machine :
- High Marking Speed
- Perfect beam quality
- Very Compact
- Low Consumption
- Maintenance Free
- Long working life
Advantages:
- Fiber lasers are up to ten times more efficient than traditional YAG or CO2 laser systems.
- Consuming little to no energy when not active, the annual energy saving can attract
- government grant funded energy efficiency programs for industry.
- Fiber lasers have no optic to adjust or align, and no lamp to replace.
- Maintenance is minimal and so utilization and up-times are maximized. The lasers really are designed as shop floor industrial tools.
- Applicable materials and industries:
- Suitable for all kinds of metals, industrial plastic, electroplates, metal-coated materials, rubbers, ceramic, and so on.
- Widely used in fields like mobile button, plastic transparent button; electronic arts, IC, tools, communication products;
- bathing products, tool accessories, glasses and watches, jewelry, button decoration for boxes and bags,
-
cookers, stainless steel products and so on
(1) Multi-position Marking Solution:
-
Normally, laser marking machine will adjust the focal distance according to the material thickness. Golden Laser marking series machines not only adopt up & down working table and Galvo head to adjust the focus, but also use 3D marking technology to realize marking on uneven material in one step.
Besides, many work pieces need laser working area, which is a problem for most laser manufacturers. The appearance of Golden Laser 3D dynamic system and cross slide table solves the problem.
The application of cross slide table makes the one working zone to multi zones by moving the table. It realizes the large format splicing and high precision marking,
(2) 3D Dynamic Large-scale marking on different height object:
During marking, we usually need to make continuous and precise laser marking. If use splicing method, it is really hard to ensure the marking precision. The appearance of Golden Laser 3D dynamic marking technology completely breaks this limitation. This technology not only do large format marking, but also do marking on materials with different thickness in one time, no need repeat positioning, saving a lot of time.
Technical Parameters:
Laser power |
10W/20W |
Min. characters |
0.15mm |
Laser Wavelengths |
1064nm |
Orientation precision |
0.002mm |
Beam quality |
M2<2 |
Average power consumption |
500W |
Laser Repetition Rate |
20-100KHZ |
Power |
AC220V±10%/50Hz/5A |
Marking speed |
≤8000mm/s |
Cooling style |
Air cooling |
Min.width |
0.01mm |
Laser tube lifetime |
100000Hours |
Working area |
70mmX70mm |
Dimension
|
680X200X450mm
|
100mmX100mm | |||
160mmX160mm |
G.W |
32Kg |
For different marking requirement,we have four type for you.

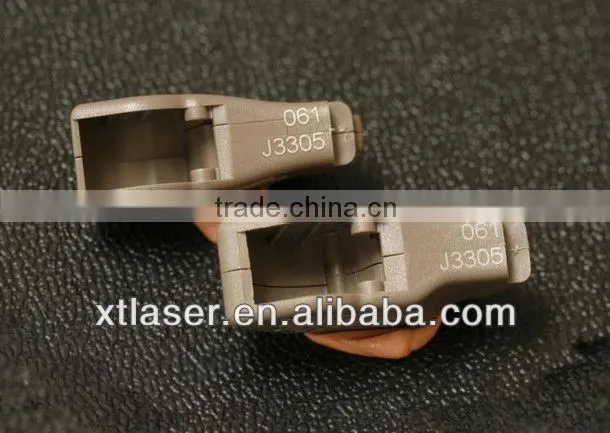

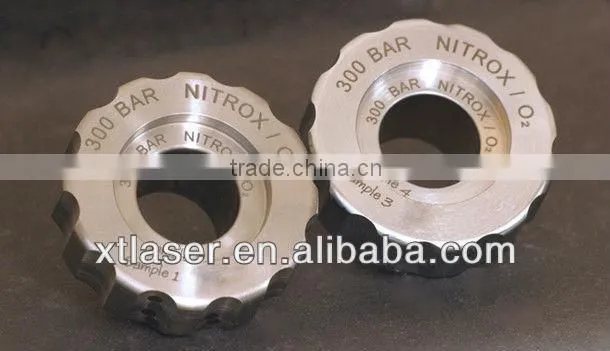

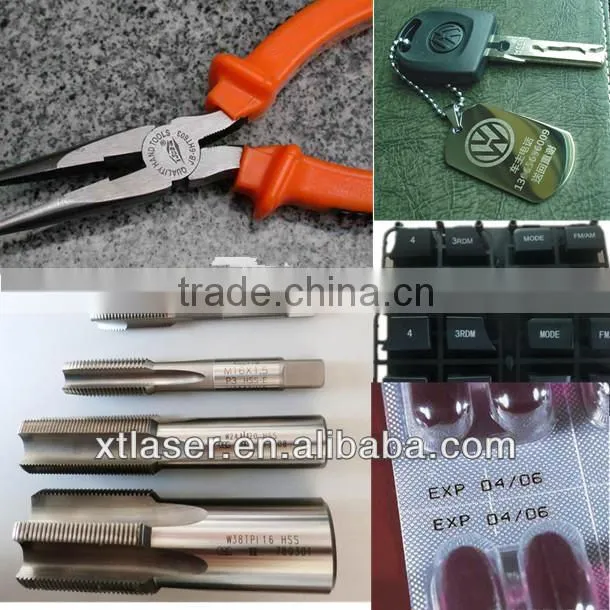

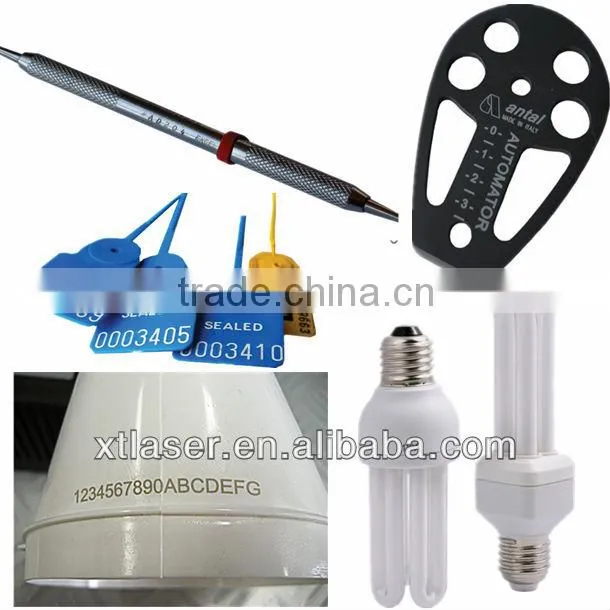

Sample Picture:
Certification

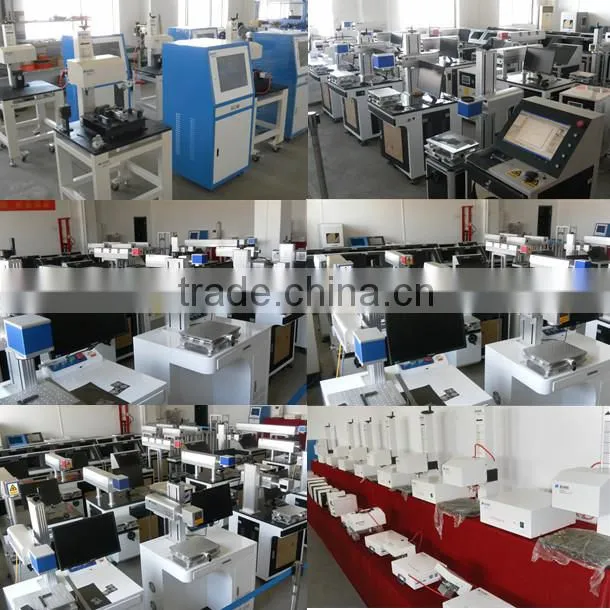

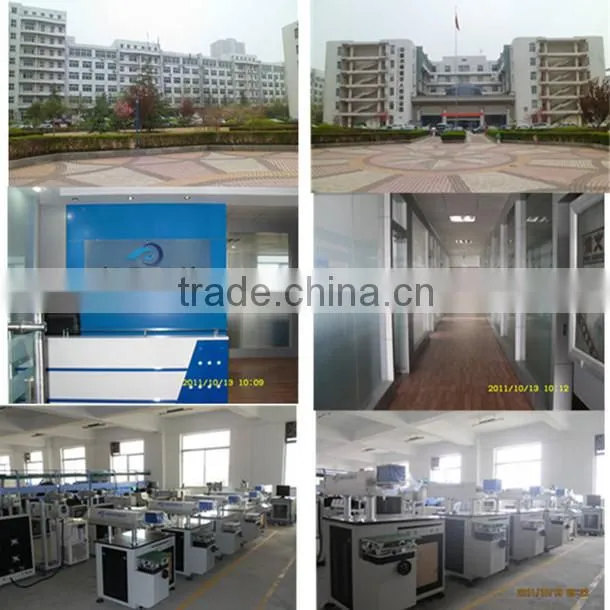

About us
Jinan Xintian Technology Co.,Ltd is professional manufacturer of laser equipment, established in 2004.It is a professional manufacturer engaged in the research,development, production and service of Diode pumped Laser marking machine, Fiber laser marking machine,CO2 laser marking machine,Pneumatic marking machine,Laser engraving machine,Laser welding machine, Laser cutting machine and Laser trimming machine.
About packaging term:wooden box.
At the exhibition:
My name card:
Please advise us the following information, so that we can recommend you the most suitable model quickly, feel free to contact us soon !
(1) Which Material will be processed? stainless steel,metal,wood,acrylic,fabric,leather,textile etc.?
(2) What is the size and thickness of the material?
(3)What is your business scope? Are you a distributor or end-user ?
...
