Description
High-speed CO2 Laser marking machine, using high-power CO2 RF laser tube and high-speed scan galvanometer system. Equipped with high qualified optic components, stable laser electrical source and full auto-controlling system. Marking precision is high, speed is high and the performance is super stable, so it can work continuously within long time. It can be directly applied to mass manufacturing streamlines.
Equipment Features:
1. General machine, adopted back focalization, laser power is controlled by the software and serially adjustable.It is applicable to fine marking on nonmetal materials with low requirements.
2. Adopting CO2 RF laser tube which has excellent performance and long life<20k hours>.
3. Adopting high-speed galvanometer system with high speed, high precision and stable performance.
4. Adopting imported optics lens, low loss, excellent focalization performance.
5. The marking software is mightiness ,under WINDOWS interface, compatible with CORELDRAW, AUTOCAD, PHOTOSHOP etc. a variety of software output files. Support PLT, AI, DXF, BMP and other documents, directly using SHX, TTF font. Support automated coding, serial number, batch number, date, bar code and two-dimensional code marking.
Specification:
| laser waveleghth | 10.6um |
| laser power | 30w |
| using life | 20k hours |
| mark linewidth | 0.15mm |
| marking field | 50x50,70x70,100x100,140x140mm |
| marking speed | <7000mm/s |
| minimum character | 0.4mm |
| repeating orientation precision | +0.01mm |
| cooling style | air cooling |
| average power consumption | ≤0.6kw |
| power supply | 220v/50Hz 10A |
| humidity of the environment | 5% to 75%(no condensation) |
| working environment | smoothly in a clean environment without vibrating or dirt in the air |
Application:
Materials: Majority of nonmetal materials such as leather, cloth, wood, bamboo, paper, organic materials, plastic, epoxy resin etc.
Application Industry: Electronic components, medicines, food, drinking package, leather products, rag trade, woodworks, craftworks and package.

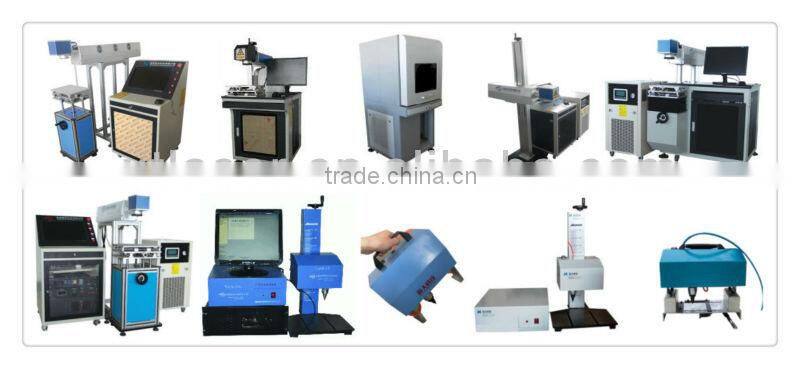

products picture
Namecard
We are looking for overseas distrbutor for CO2 ef laser plastic marking machine.
As a professional manufacturer of the marking machine ,we can give you more competitive price than other manufacturer of marking machine .
