Specifications
XT manufacturer CO2 laser leather/wood engraving machine1)40/60/80W laser tube
2)Water cooling system
3)Manufacturer
4)CE
XT manufacturer CO2 laser leather/wood engraving machine
Good quality! Lowest price!! Best service!!

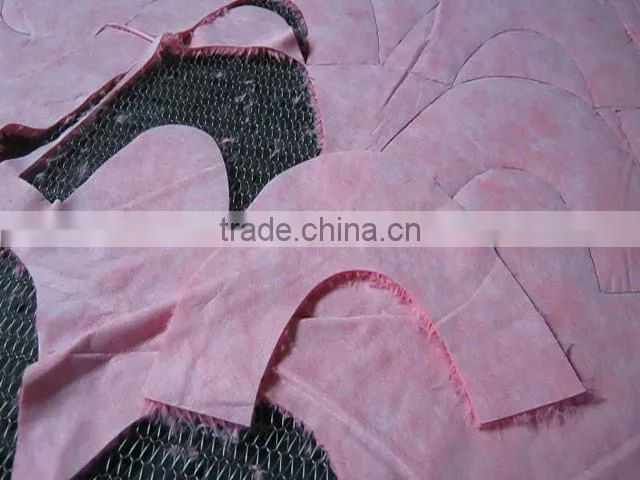

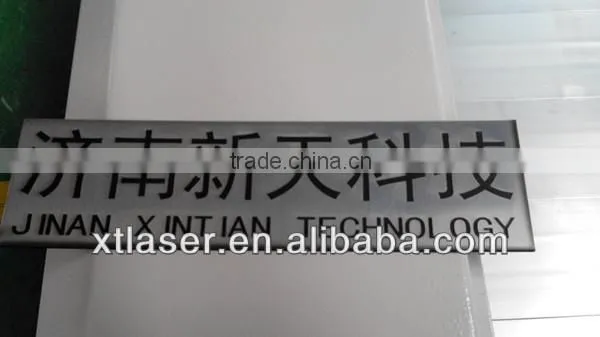

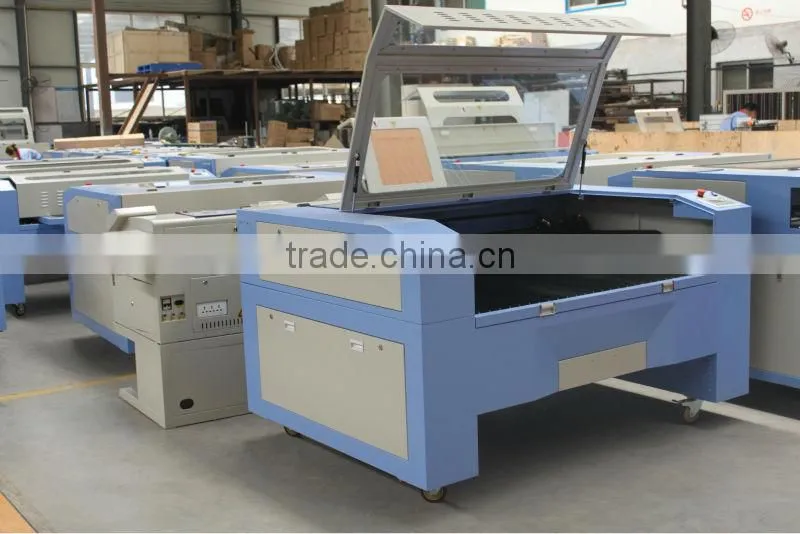

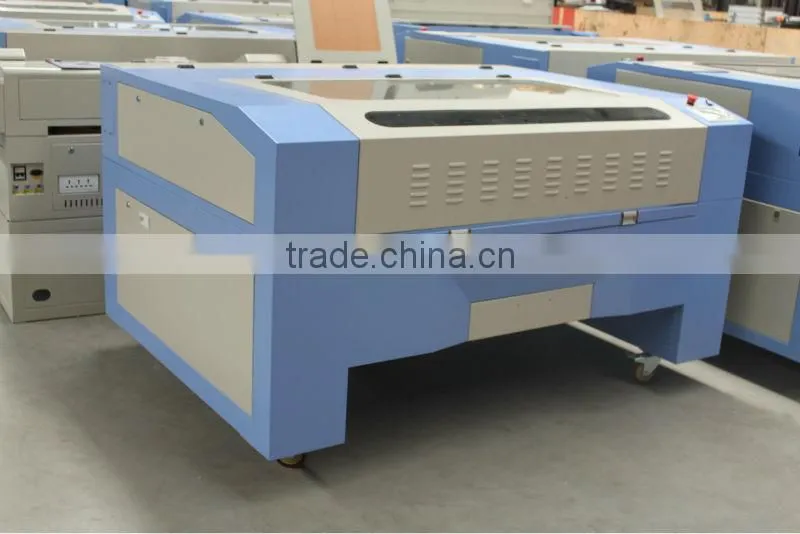

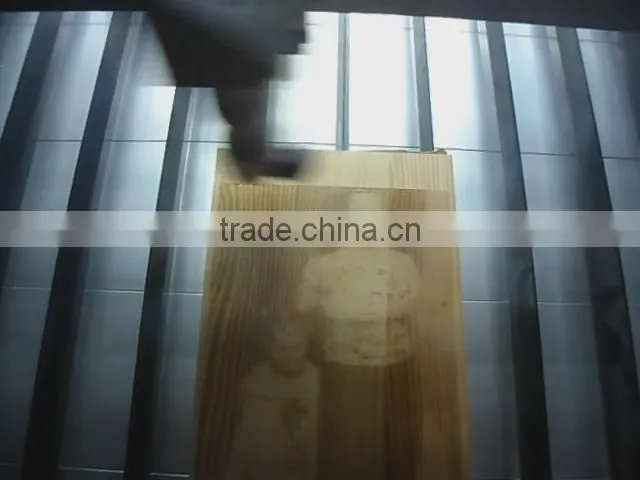

| Machine photo and Sample Photo |
| Features |
1.The "front" and "back" of our laser machine can be open, suitable for super-length material process.
2.Exclusive water warning and automatic protection system, to protect the working life of laser tube effectively.
The power control system has exclusive automatic protection equipment to ensure the st ability and safety of the machine to the best.
3.LCD control panel in English, convenience of operation control.
4.Imported liner bearing with high engraving precision
5.offline control system which can not only work without computer, but also connect to U disk,USB communication
6.Imported metal mirrors, with good ability of reflection and focusing, long working life.
7.optional auto up&down work table, it is suitable for different thickness material cutting and engraving.
8.Red light positioning system realizes the exact position without laser.
| Technical Specifications |
Machine Description |
6040 Laser Engraving Machine (also there are other models) |
Laser type |
Hermetic and detached CO2 laser tube |
Laser tube power |
40W/60W(XTE-6040)
60W/80W/100W(XTE-9060) |
Cooling Mode |
Circulating-water-cooling |
Power Adjustment |
0-100% controlling, no segment and adjusting by software |
Machine Control and Drive |
Speedy DSP controlling, stepper motor |
Max Engraving Speed |
70000mm/min |
Max Cutting Speed |
40000mm/min |
Repeating Location |
0.01mm |
Minimum Character |
Chinese character: 1.5mm; crisscross-row: 1mm |
Working Travel Area |
600x400mm, 600mm width with infinite length material feeding (other sizes can be made) |
Working Voltage |
AC220V 50Hz |
Working Environment |
Temperature: 0-45°C, Humidity: 5%-95%, and congeal-water removed |
Controlling Software Language |
English, Simplified Chinese, Traditional Chinese and procuring of multi-languages |
Dictate Format |
*.plt,*.dst,*.dxf,*.bmp,*.dwg,*.ai,*las, Support AutoCAD,CoreDraw direct outputting |
| Application |
Applicable Materials :
Non-metal materials such as acrylic,wood planks(light planks,paulownia wood),bamboo ware,double-color,sheets,paper,leather,shells,coconut shells,horns,resin,animal grease,ABS boards,lampshade,etc
Applicable Industry:
Model industry(construction models,aviation and navigation models and wooden toys),advertisement,
decoration,arts and crafts,electronics and electric appliances etc
| Package Photo |
| After-sale Service |
| 24/7 service is available to each customer. And if any technical questions or problems, our engineers will help you and give you solutions on the phone or by face-to-face communication online. |
| One-year warranty is provided. (The detailed reference will be written into the final contract.) |
| Professional staff for installation and training if needed. |
| Spare parts are supplying on time or doing some inventory if promising certain sales volume. |
| Faster delivery, we will support our sole agent to do the stock if good sales, then more convenient and helpful. |
| If the sales are good, we will arrange some famous exhibition fairs in the local or surroundings, and give our full support to our agents at the fair. We will provide our sample machines, catalog, DVD, manuals, etc. All native customers belong to our local agent, which is our basic rule. And we promise the final delivery is the same as displayed prototype. |
| Company, Exhibition, Certification |
| The Series Of Products |
- fiber laser marking machine
- Semiconductor side-pumped laser marking machine
- CO2 RF laser marking machine
- pneumatic marking machine
