Specifications
1)CNC portable laser engraving cutting machine for abrasive cloth2)40/60/80 laser tube
3)water cooling system
4)ISO/CE
Chinese New Year Offer!!!

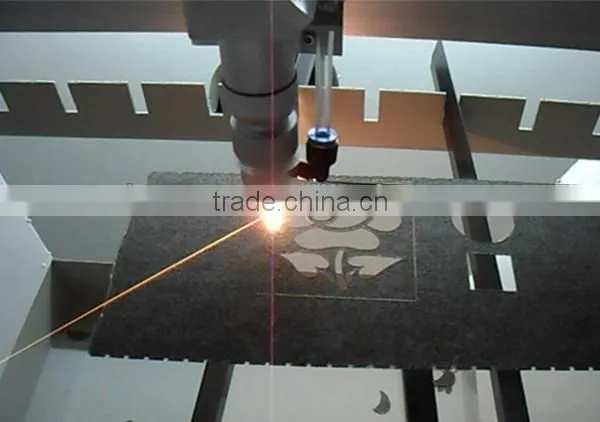

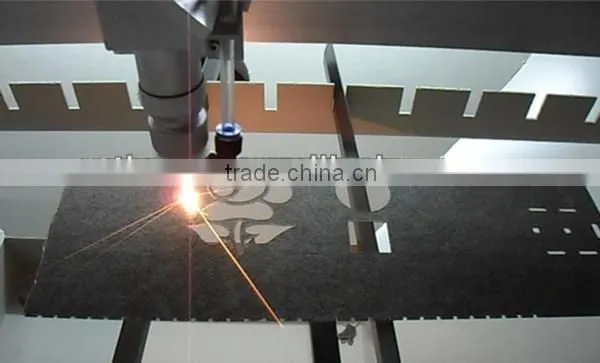

CNC portable laser engraving cutting machine for abrasive cloth
| Features |

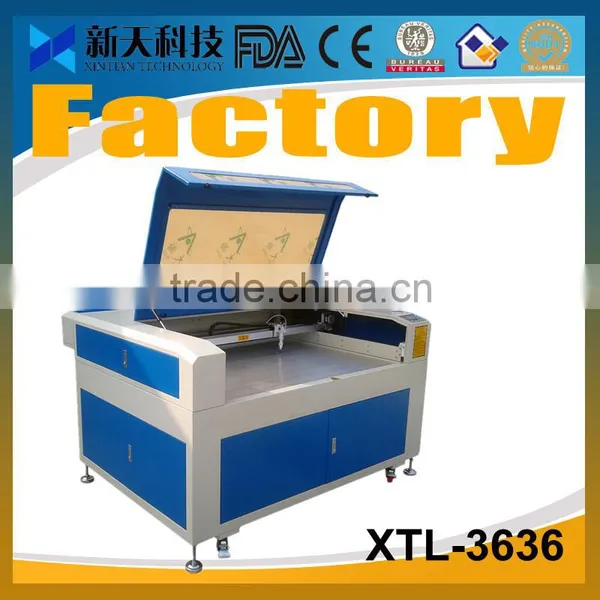

XTL-3636 laser cutting machine .is mainly for cutting nometal materials such as arcylic ,leaher ,MDF.garment .
it canalso do the engraving but the precision is not higher as the lower power laser engraving machine .
The imported linear guide rail and step motor with reduce speed driver system to assure cutting incision more smooth.
The imported focus lens and metal reflect mirror from America have strong cutting ability and high precision.
| Application |
Materials can be engraved:
acrylic, wood, cloth, leather, MDF, bamboo, rubber, glass, crystal, granite, marble, tile, ceramic, paper, magic bean, painted metal, etc.
Materials can be cut:
acrylic, wood, cloth, leather, MDF, plywood, bamboo, rubber, asbestos rubber, paper, PVC, foam, EVA, plastic, etc.
| Technical Specifications |
Model |
XTL-3636 |
Working area : |
360cm*360cm / 47in*35in (L*W) |
Laser power : |
100W |
Laser type : |
CO2 sealed laser tube,water-cooled |
Engraving speed : |
25-24000mm/min |
Cutting speed : |
50-5000mm/min |
Power supply : |
220V±10% /50HZ , 110V±10%//60HZ |
Min. shaping character : |
Letter 1.0 x 1.0mm |
Graphic format supported: |
BMP, PLT, DST, DXF, AI,CDR |
Software supported : |
CorelDraw, PhotoShop, AutoCAD |
Laser Output Control: |
1-100% software setting |
Highest Scanning Precision: |
2000DPI |
Resolution ratio : |
<0.01mm |
Location precision: |
<0.01mm |
Working temperature: |
540 |
Operating humidity: |
5%-95%(without condensed water) |
Equipment Dimension: |
1650mm*1250mm*970mm/65in*49in*38 in (L*W*H)
|
Net Weight |
350KG |
Optional parts : |
Up-down worktable, Red light pointer, Auto focus, Rotary device |
| Sample Photo |
| Package Photo |
| After-sale Service |
| 24/7 service is available to each customer. And if any technical questions or problems, our engineers will help you and give you solutions on the phone or by face-to-face communication online. |
| One-year warranty is provided. (The detailed reference will be written into the final contract.) |
| Professional staff for installation and training if needed. |
| Spare parts are supplying on time or doing some inventory if promising certain sales volume. |
| Faster delivery, we will support our sole agent to do the stock if good sales, then more convenient and helpful. |
| If the sales are good, we will arrange some famous exhibition fairs in the local or surroundings, and give our full support to our agents at the fair. We will provide our sample machines, catalog, DVD, manuals, etc. All native customers belong to our local agent, which is our basic rule. And we promise the final delivery is the same as displayed prototype. |
