Specifications
1)Leather wallet CNC laser engraving cutting machine2)40/60/80 laser tube
3)water cooling system
4)Leetro controller

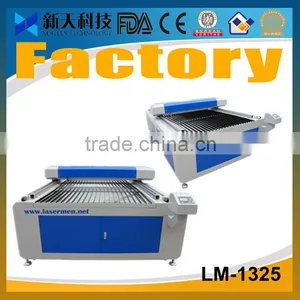

Leather wallet CNC laser engraving cutting machine
| Features |
XTL-1325 laser cutting machine is mainly for cutting nometal materials such as arcylic ,leaher ,MDF.garment .
It can also do the engraving but the precision is not higher as the lower power laser engraving machine ,
The imported linear guide rail and step motor with reduce speed driver system to assure cutting incision more smooth.
The imported focus lens and metal reflect mirror from America have strong cutting ability and high precision.
| Application |
Materials can be engraved:
acrylic, wood, cloth, leather, MDF, bamboo, rubber, glass, crystal, granite, marble, tile, ceramic, paper, magic bean, painted metal, etc.
Materials can be cut:
acrylic, wood, cloth, leather, MDF, plywood, bamboo, rubber, asbestos rubber, paper, PVC, foam, EVA, plastic, etc.
| Technical Specifications |
Model | LM-1325 laser machine |
Laser type | CO2 laser tube, water-cooled |
Laser power | 180 watts laser tube |
Working area | 1300mm x 2500mm |
Engraving speed | 0-6000cm/min |
Cutting speed | 0-5000cm/min |
Repeating location | ≤±0.01 |
Transmission type | Belt transmission |
Driving system | Stepper motor |
Machine table | Blade table |
Graphic format supported | BMP, HPGL(PLT), JPEG, DXF,AI, DST, etc. |
Software supported | CorelDraw, AutoCAD, Photoshop, Tajima |
Control system | Leetro USB(Off-line)control system |
Working voltage | 220V or 110V, 50Hz-60Hz |

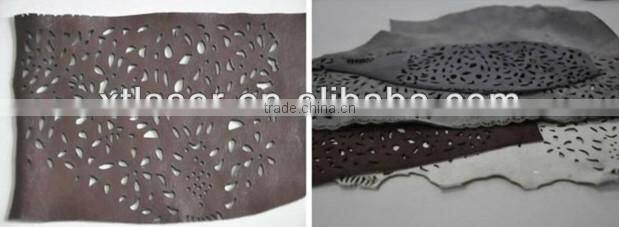

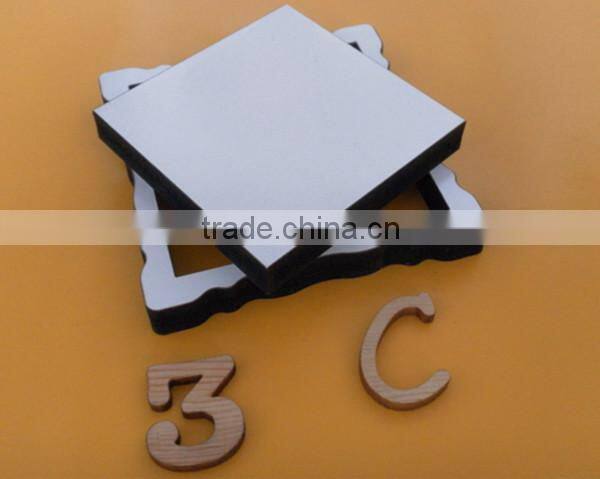

| Sample Photo |
| Package Photo |
| After-sale Service |
| 24/7 service is available to each customer. And if any technical questions or problems, our engineers will help you and give you solutions on the phone or by face-to-face communication online. |
| One-year warranty is provided. (The detailed reference will be written into the final contract.) |
| Professional staff for installation and training if needed. |
| Spare parts are supplying on time or doing some inventory if promising certain sales volume. |
| Faster delivery, we will support our sole agent to do the stock if good sales, then more convenient and helpful. |
| If the sales are good, we will arrange some famous exhibition fairs in the local or surroundings, and give our full support to our agents at the fair. We will provide our sample machines, catalog, DVD, manuals, etc. All native customers belong to our local agent, which is our basic rule. And we promise the final delivery is the same as displayed prototype. |
